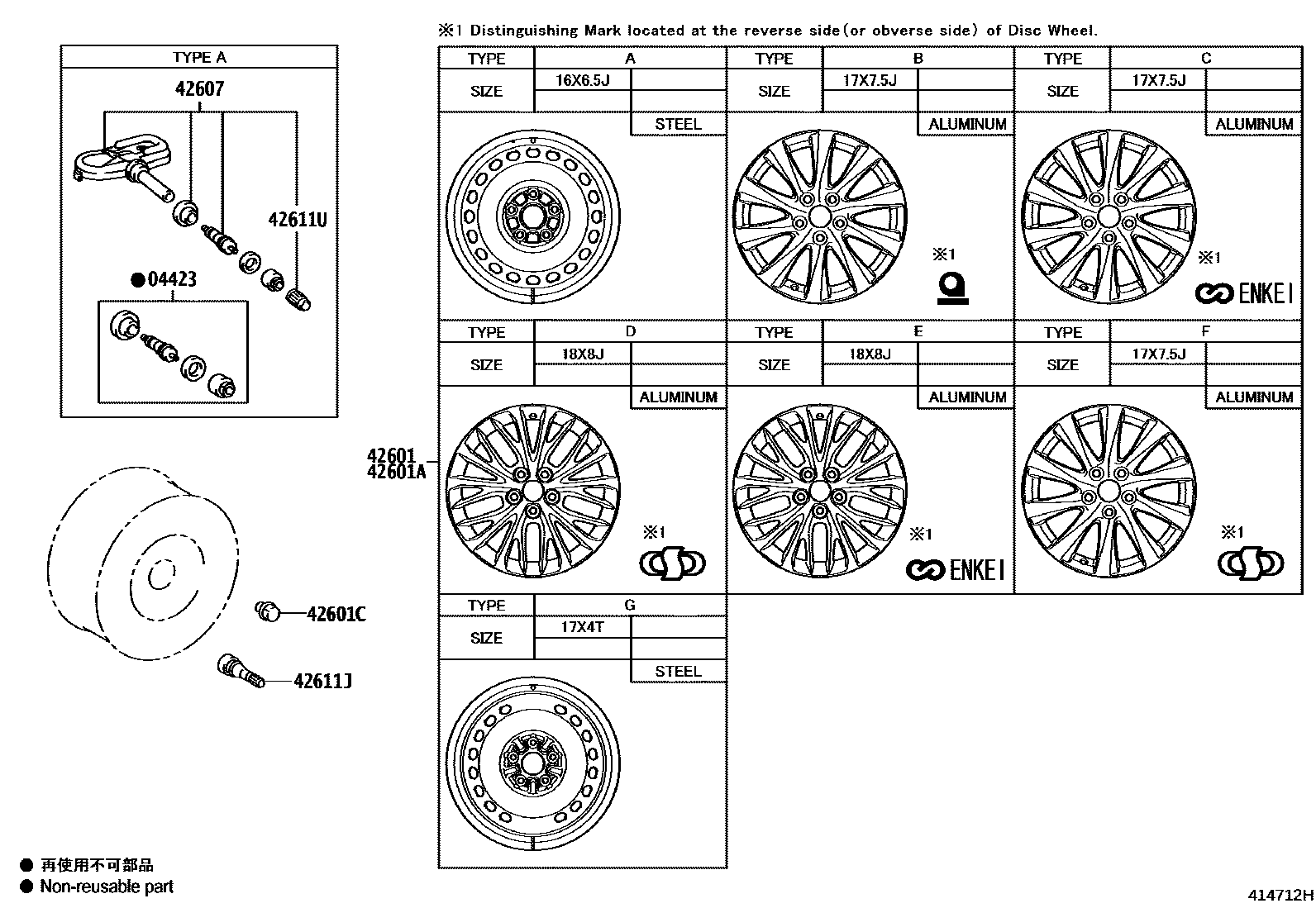

DISC WHEEL & WHEEL CAP

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33060×4i201703-201811

TYPE A:REFER ILLUST.

42601WHEEL, DISC

main42611-33C00×4i201703-201811

17X7.5J,#,TYPE F:REFER ILLUST.

main42611-33C40×4i201703-201811

17X7.5J,#,TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM,ALL SEASON TIRE,TYPE B:REFER ILLUST.

main42611-33C60×4supersedes 42611-33D30i201703-201811

17X7.5J,#,TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM,ALL SEASON TIRE,TYPE C:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-33E20i201703-201811

17X4T,TYPE G:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033×20i201703-201811

TYPE B:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-33050×4i201703-201811

TYPE A:REFER ILLUST.

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i201703-201811

42611UCAP, TIRE VALVE

main90942-05039×4i201703-201811

TYPE A:REFER ILLUST.

7 parts on this diagram · 2 diagrams in section
