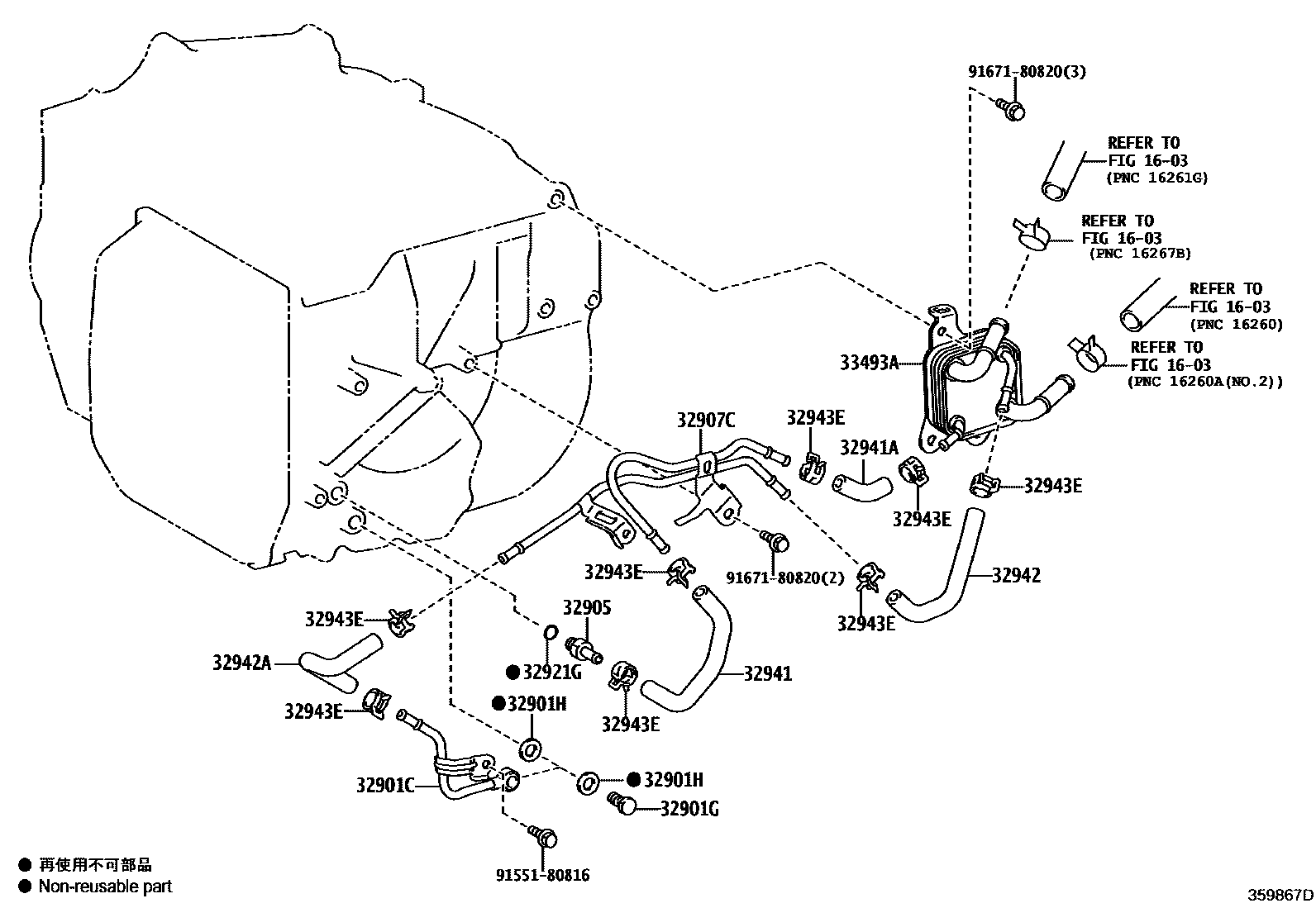

OIL COOLER & TUBE (ATM)

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

32901CUNION SUB-ASSY, OIL COOLER

main32901-48020iAXVA70201703-201811

32901GBOLT, UNION(FOR OIL COOLER)

main90401-14003iAXVA70201703-201811

32901HGASKET(FOR OIL COOLER UNION)

main90430-14016×2iAXVA70201703-201811

32905TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1

main90404-14030iAXVA70201703-201811

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

main32907-33220iAXVA70201703-201811

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11031iAXVA70201703-201811

32941HOSE, OIL COOLER INLET, NO.1

main32941-33180iAXVA70201703-201811

32941AHOSE, OIL COOLER INLET, NO.2

main32941-33190iAXVA70201703-201811

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-33230iAXVA70201703-201811

32942AHOSE, OIL COOLER OUTLET, NO.2

main32942-33240iAXVA70201703-201811

32943ECLIP, NO.3(FOR OIL COOLER HOSE)

main90466-16004×8iAXVA70201703-201811

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-33060iAXVA70201703-201811

9155180816

main91551-80816

9167180820

main91671-80820

15 parts on this diagram · 1 diagram in section
