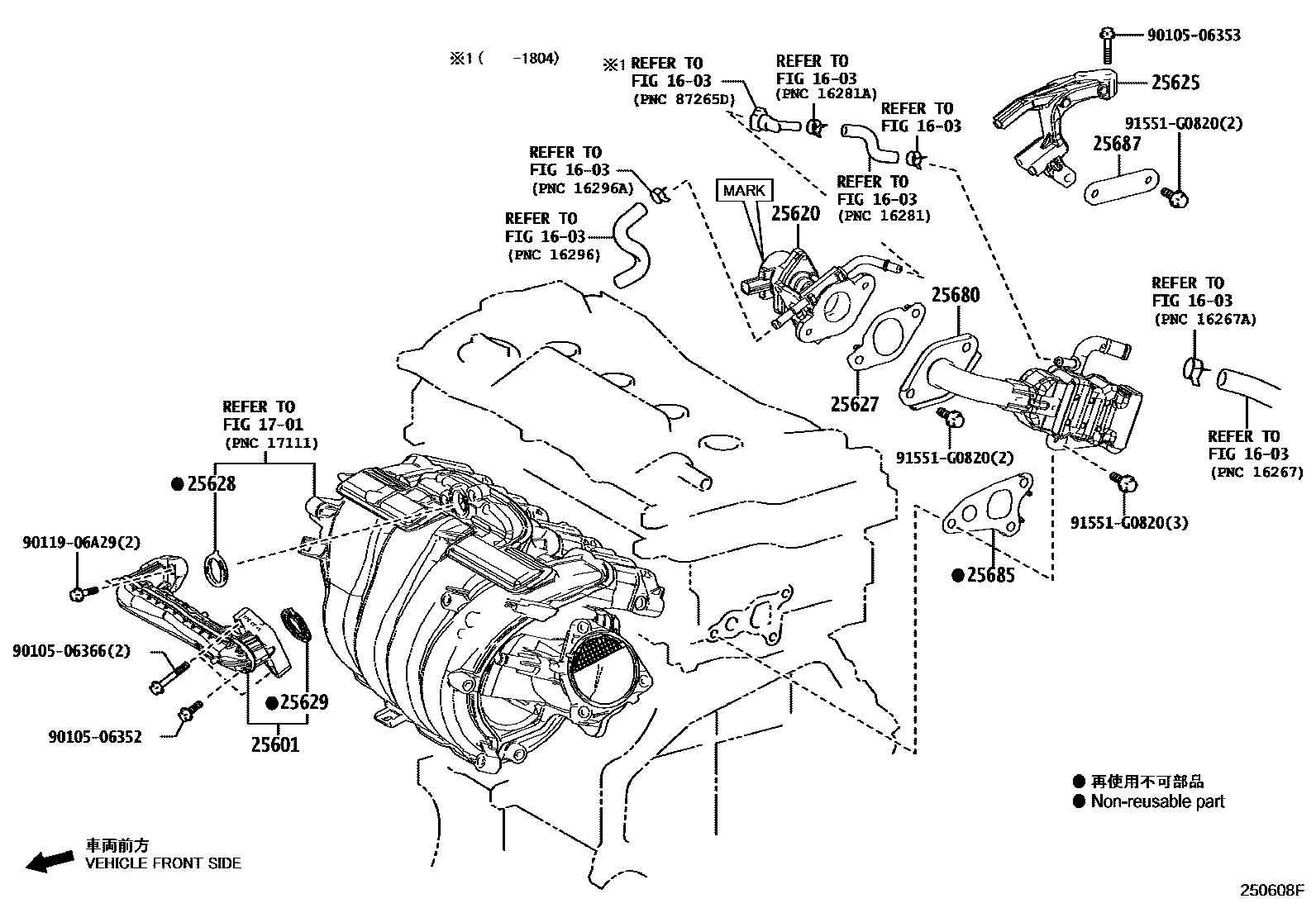

EXHAUST GAS RECIRCULATION SYSTEM

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

25601PIPE SUB-ASSY, EGR, NO.1

main25601-25010iA25AFKS..AXVA70201703-201710

main25601-25011iA25AFKS..AXVA70201711-201811

25620VALVE ASSY, EGR

main25620-25020iA25AFKS..AXVA70201703-201804

MARK=25620 25020

main25620-25040iA25AFKS..AXVA70201804-201811

MARK=25620 25040

25625BRACKET, EGR VALVE

main25625-25010iA25AFKS..AXVA70201703-201811

25627GASKET, EGR VALVE

main25627-25010iA25AFKS..AXVA70201703-201811

25628GASKET, EGR INLET

main25628-25010iA25AFKS..AXVA70201703-201811

25629GASKET, EGR VALVE ADAPTER

main25629-25010iA25AFKS..AXVA70201703-201811

25680COOLER ASSY, EGR

main25680-25010iA25AFKS..AXVA70201703-201811

25685GASKET, EGR COOLER, NO.1

main25685-25010iA25AFKS..AXVA70201703-201709

main25685-25011iA25AFKS..AXVA70201710-201811

25687BRACKET, EGR COOLER, NO.1

main25687-25010iA25AFKS..AXVA70201703-201811

9010506352

main90105-06352

9010506353

main90105-06353

9010506366

main90105-06366

9011906A29

main90119-06A29

91551G0820

main91551-G0820

16 parts on this diagram · 1 diagram in section
