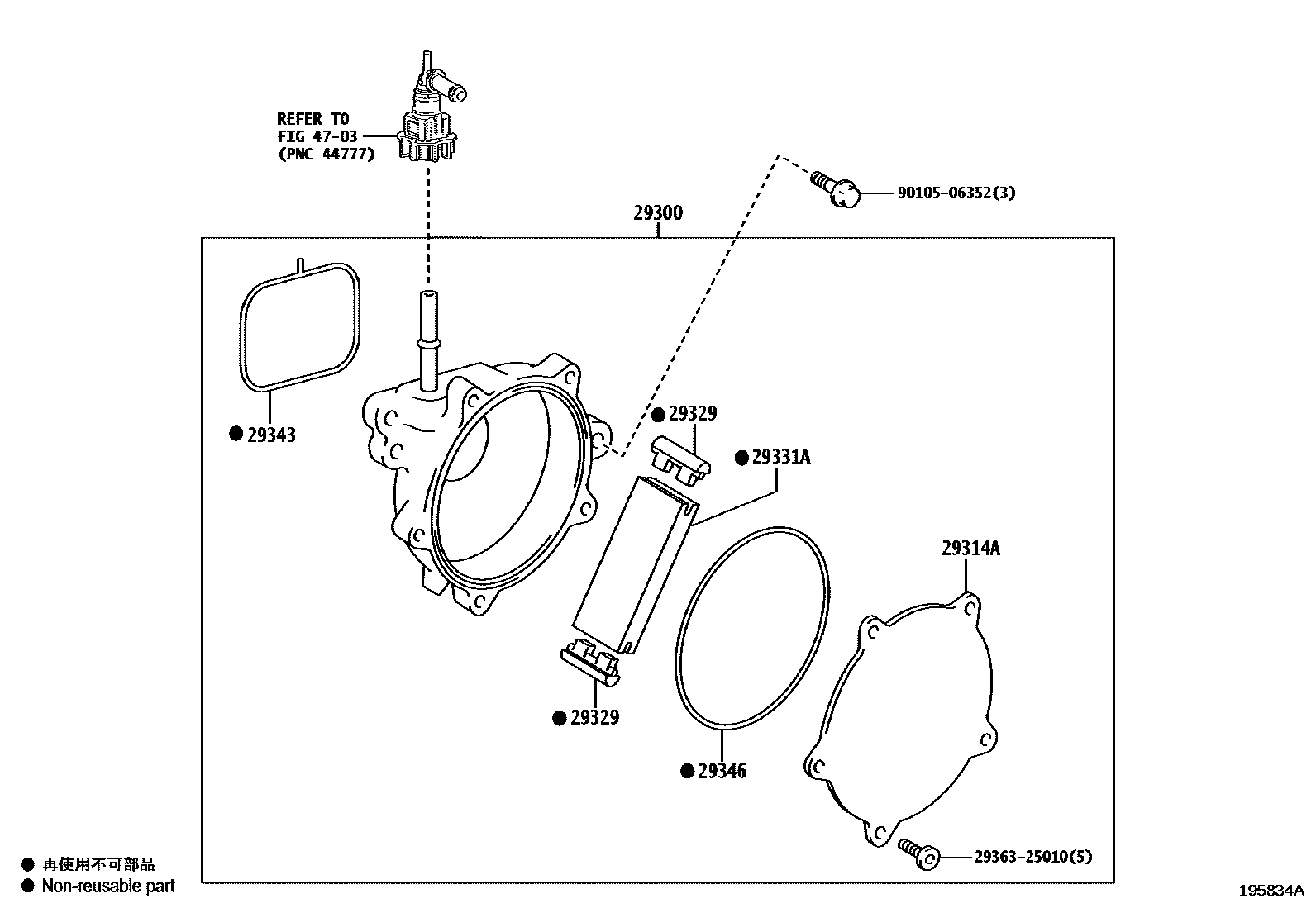

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-25010iA25AFKS..AXVA70201703-201711

main29300-25011iA25AFKS..AXVA70201712-201811

29314ACOVER, END

main29314-25010iA25AFKS..AXVA70201703-201811

29329CAP, VACUUM PUMP VANE

main29329-25010×2iA25AFKS..AXVA70201703-201712

main29329-25011×2iA25AFKS..AXVA70201712-201811

29331AVANE, VACUUM PUMP

main29331-25010iA25AFKS..AXVA70201703-201811

29343RING, O VACUUM PUMP, NO.1

main29343-25010iA25AFKS..AXVA70201703-201811

29346RING, O VACUUM PUMP COVER

main29346-25010iA25AFKS..AXVA70201703-201811

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010

9010506352

main90105-06352

9 parts on this diagram · 1 diagram in section
