STARTER

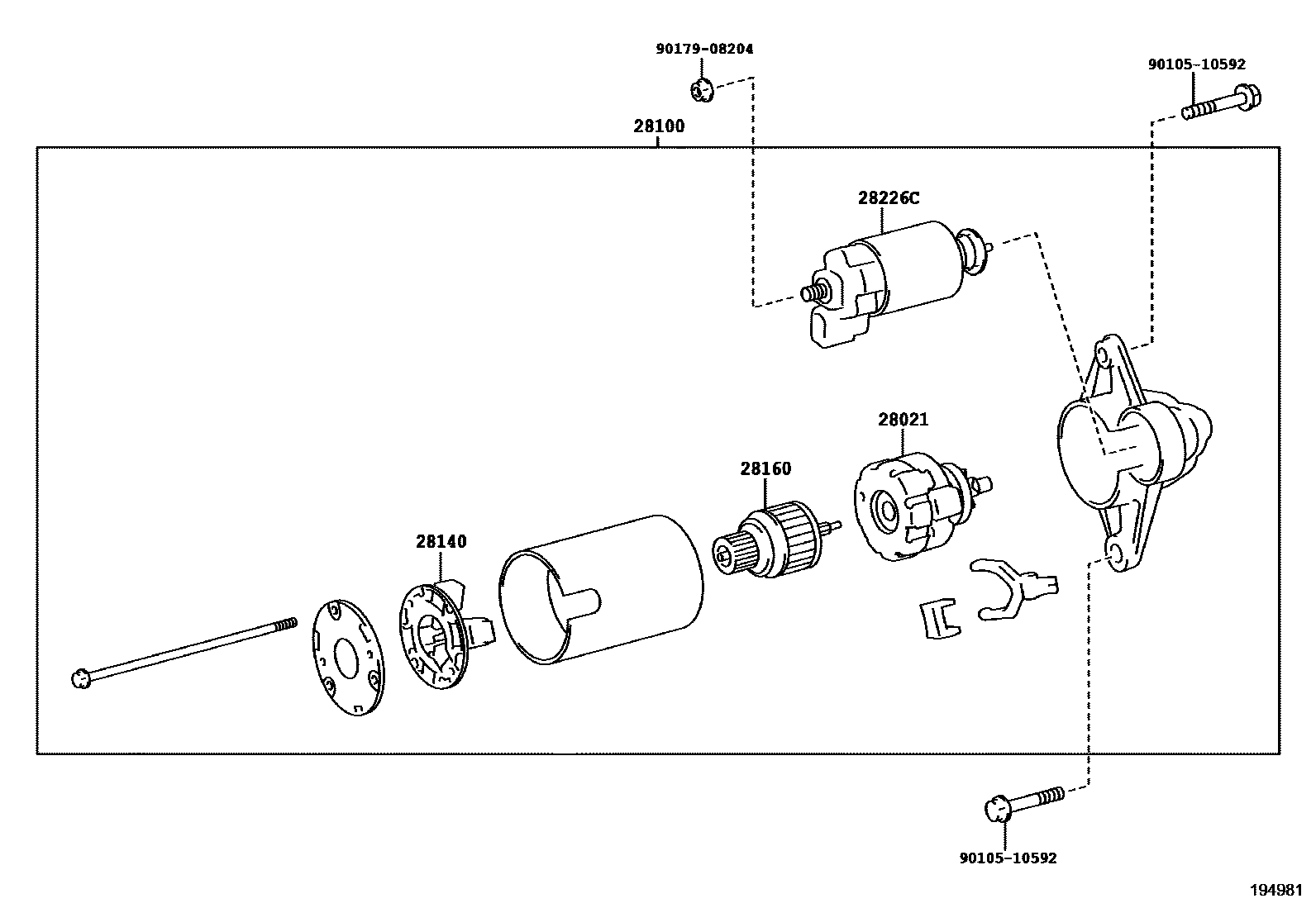

Parts diagram

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-25050i201703-201811

28100STARTER ASSY

main28100-25050i201703-201811

12V 1.3KW

28140HOLDER ASSY, STARTER BRUSH

main28140-25050i201703-201811

28160ARMATURE ASSY, STARTER

main28160-21080i201703-201811

28226CSTARTER KIT, REPAIR SERVICE, NO.2

main28226-25050i201703-201811

9010510592

main90105-10592

9017908204

main90179-08204

7 parts on this diagram · 1 diagram in section
