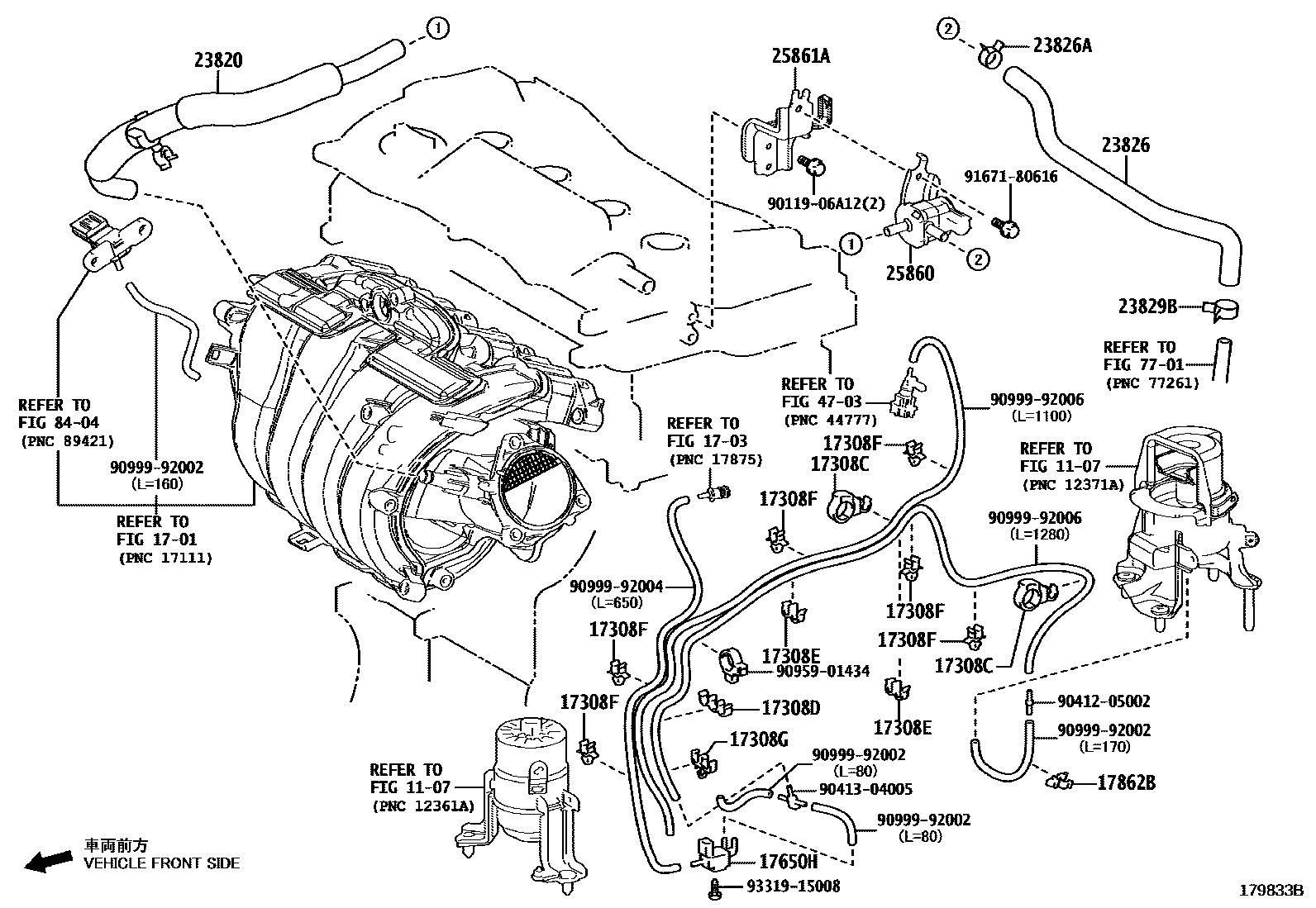

VACUUM PIPING
1107MOUNTING
1701MANIFOLD
1703AIR CLEANER
17308CCLAMP(FOR VACUUM HOSE)
17308DCLAMP, NO.2(FOR VACUUM HOSE)
17308ECLAMP, NO.3(FOR VACUUM HOSE)
17308FCLAMP, NO.4(FOR VACUUM HOSE)
17308GCLAMP, NO.5(FOR VACUUM HOSE)
17650HVALVE, VACUUM SWITCHING
17862BCLAMP, HOSE
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
23820HOSE ASSY, FUEL VAPOR FEED
23826HOSE, FUEL VAPOR FEED, NO.1
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
23829BCLIP(FOR FUEL VAPOR FEED HOSE)
25860VALVE ASSY, VACUUM SWITCHING, NO.1
25861ABRACKET, VACUUM SWITCHING VALVE, NO.2
4703BRAKE BOOSTER & VACUUM TUBE
7701FUEL TANK & TUBE
8404ELECTRONIC FUEL INJECTION SYSTEM
9011906A12
main90119-06A12
9041205002
main90412-05002
9041304005
main90413-04005
9095901434
main90959-01434
9099992002
main90999-92002
9099992004
main90999-92004
9099992006
main90999-92006
9167180616
main91671-80616
9331915008
main93319-15008
28 parts on this diagram · 2 diagrams in section
