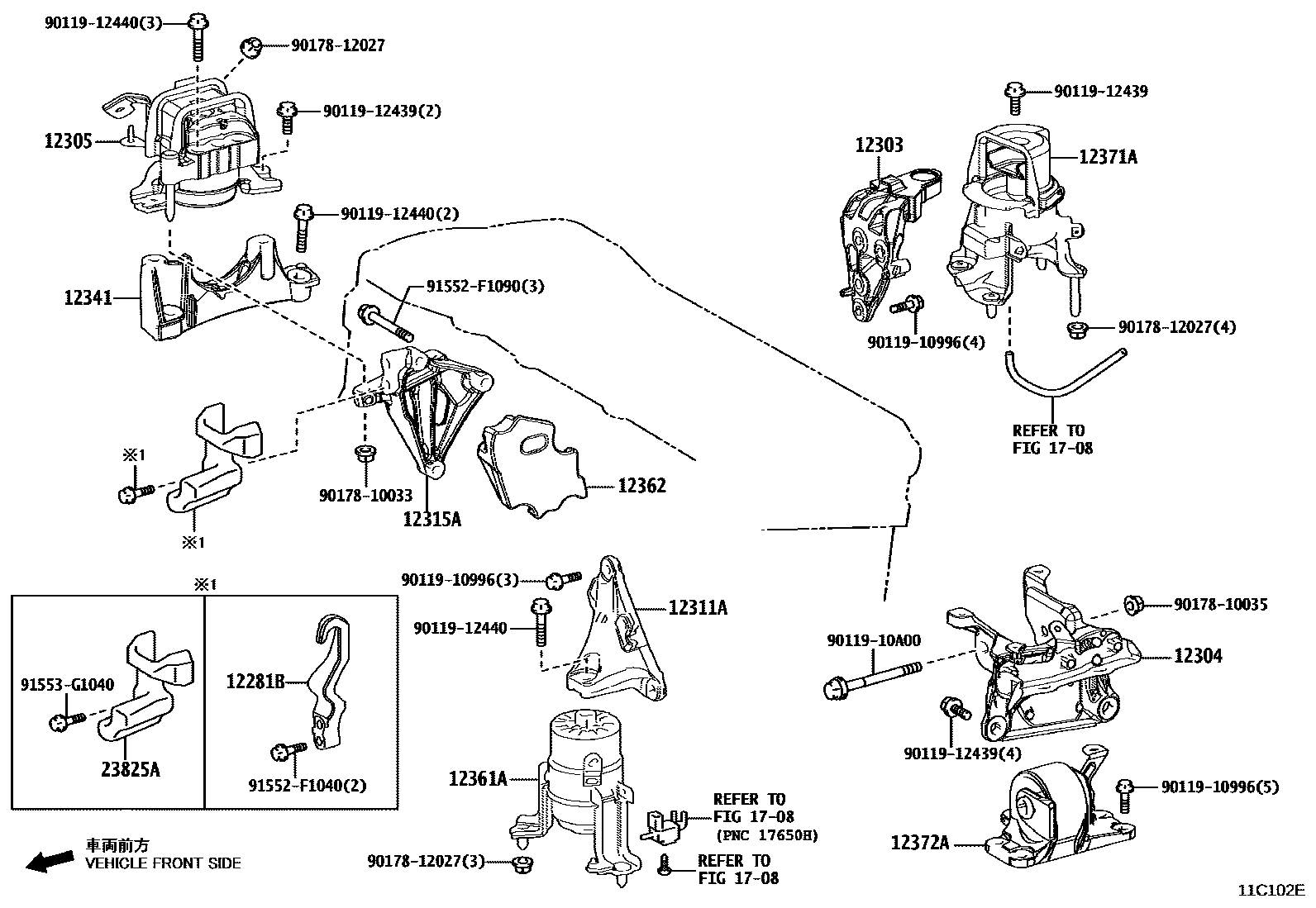

MOUNTING

12281BHANGER, ENGINE, NO.1

main12281-25030iA25AFKS..AXVA70201703-201811

12303BRACKET SUB-ASSY, ENGINE MOUNTING, REAR

main12303-25010iA25AFKS..AXVA70201703-201811

12304BRACKET SUB-ASSY, ENGINE MOUNTING, LH

main12304-25010iA25AFKS..AXVA70201703-201811

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-25010iA25AFKS..AXVA70201703-201811

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-25070iA25AFKS..AXVA70201703-201811

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-25030iA25AFKS..AXVA70201703-201811

12341SPACER, ENGINE MOUNTING

main12341-25010iA25AFKS..AXVA70201703-201811

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-25040iA25AFKS..AXVA70201703-201706

main12361-25041iA25AFKS..AXVA70201706-201811

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-25010iA25AFKS..AXVA70201703-201811

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-25011iA25AFKS..AXVA70201703-201811

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-25010iA25AFKS..AXVA70201703-201811

1708VACUUM PIPING

→ Go to FIG 17-08

23825AGUARD, FUEL DELIVERY

main23825-25010iA25AFKS..AXVA70201703-201811

9011910996

main90119-10996

9011910A00

main90119-10A00

9011912439

main90119-12439

9011912440

main90119-12440

9017810033

main90178-10033

9017810035

main90178-10035

9017812027

main90178-12027

91552F1040

main91552-F1040

91552F1090

main91552-F1090

91553G1040

main91553-G1040

23 parts on this diagram · 1 diagram in section
