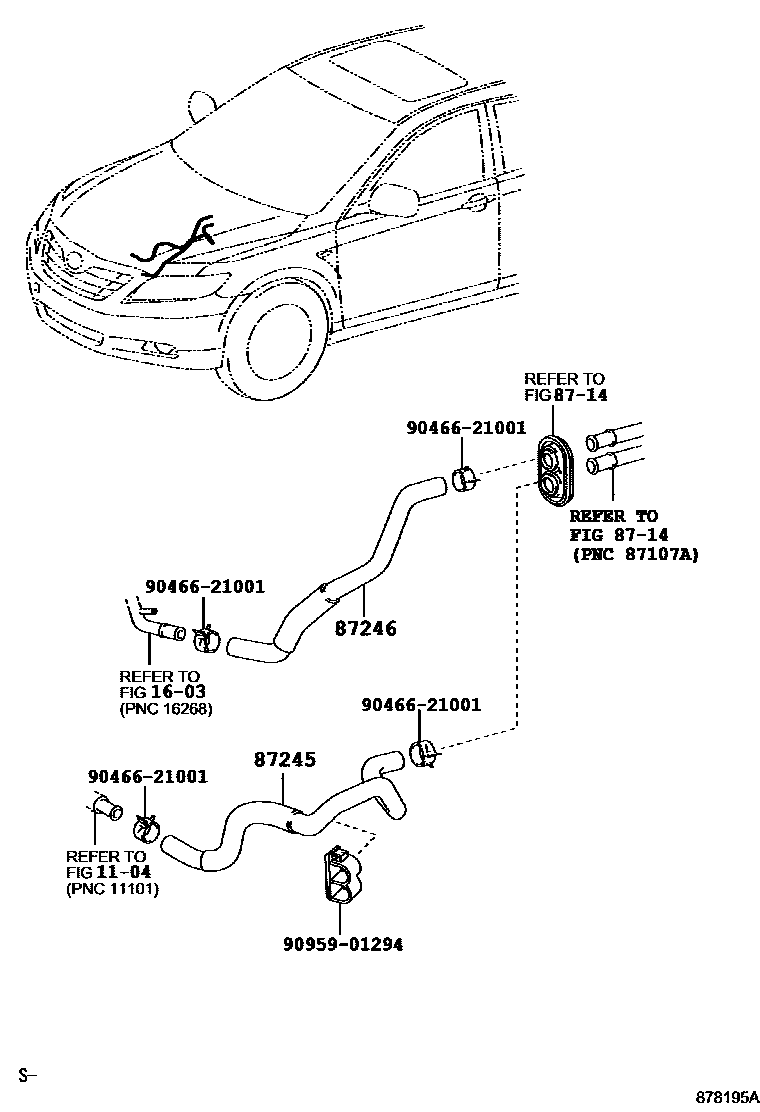

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87245-33330iACV40..JPP200601-200901

main87245-33480iGSV40..JPP200601-201108

main87245-33590iASV40..JPP200901-201108

87246HOSE, HEATER WATER, OUTLET

main87245-33490iGSV40..JPP200601-201108

main87245-33540iACV40..JPP200601-200901

9046621001

main90466-21001

9095901294

main90959-01294

7 parts on this diagram · 3 diagrams in section
