HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

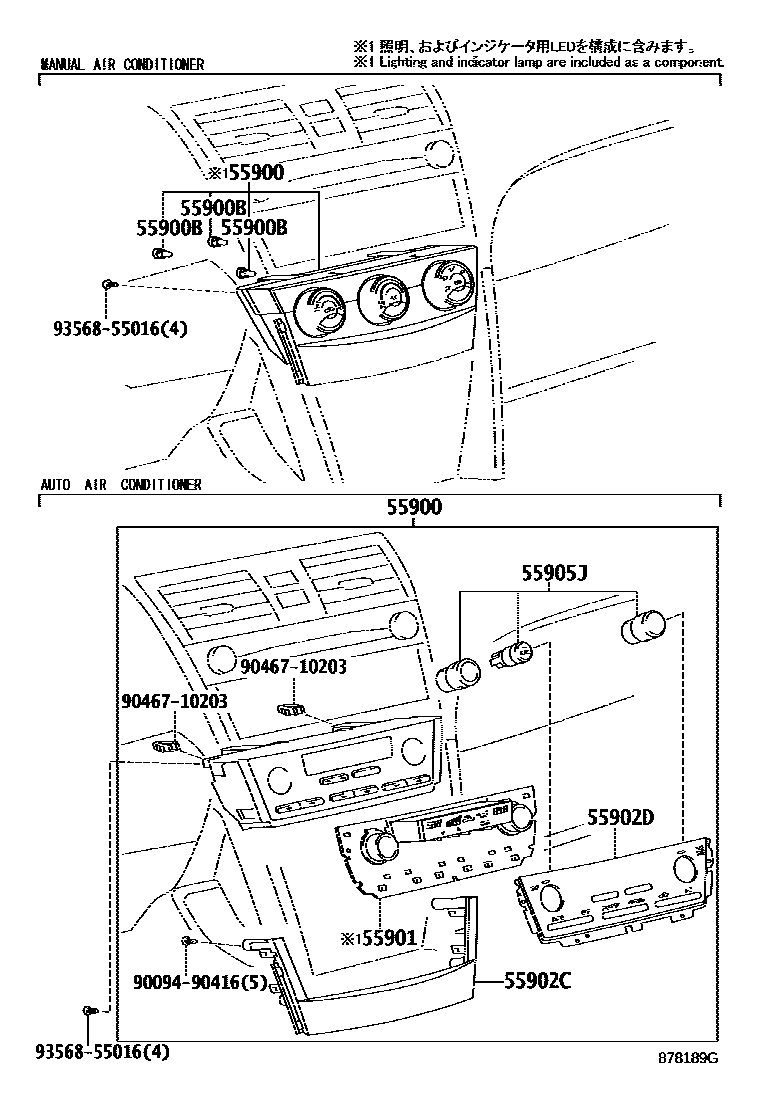

0001 1CONTROL PANEL 0002 1AIR DUCT 0003 1SENSOR

55900CONTROL ASSY, AIR CONDITIONER

main55900-33641iACV40,GSV40..JPP..LE200601-200807

main55900-33642iACV40,GSV40..JPP..LE200808-200901

main55900-33B00iASV40,GSV40..JPP..LE200901-201108

main55900-33B31iACV40,GSV40..JPP..XLE200601-200702

main55900-33B32iACV40,GSV40..JPP..XLE200703-200901

main55900-33C60iASV40,GSV40..JPP..XLE200901-201108

55900BBULB, AIR CONDITIONER CONTROL

main84999-33010×3iASV40,GSV40..JPP..LE200901-201108

12V 1.4W

main90010-11009×3iACV40,GSV40..JPP..LE200601-200808

14V 1.4W,W/CAP

55901BASE SUB-ASSY, HEATER CONTROL

main55901-33040iACV40,GSV40..JPP..XLE200601-200703

main55901-33110iACV40,GSV40..JPP..XLE200703-200901

main55901-33180iASV40,GSV40..JPP..XLE200901-201108

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-33820iACV40,GSV40..JPP..XLE200601-200702

55902DPANEL SUB-ASSY, AIR CONDITIONER

main55902-33830iACV40,GSV40..JPP..XLE200601-200702

55905JKNOB SUB-ASSY, CONTROL

main55905-33220iACV40,GSV40..JPP..XLE200601-200703

main55905-33240iASV40,GSV40..JPP..XLE200901-201108

9009490416

main90094-90416

9046710203

main90467-10203

9356855016

main93568-55016

9 parts on this diagram · 3 diagrams in section
