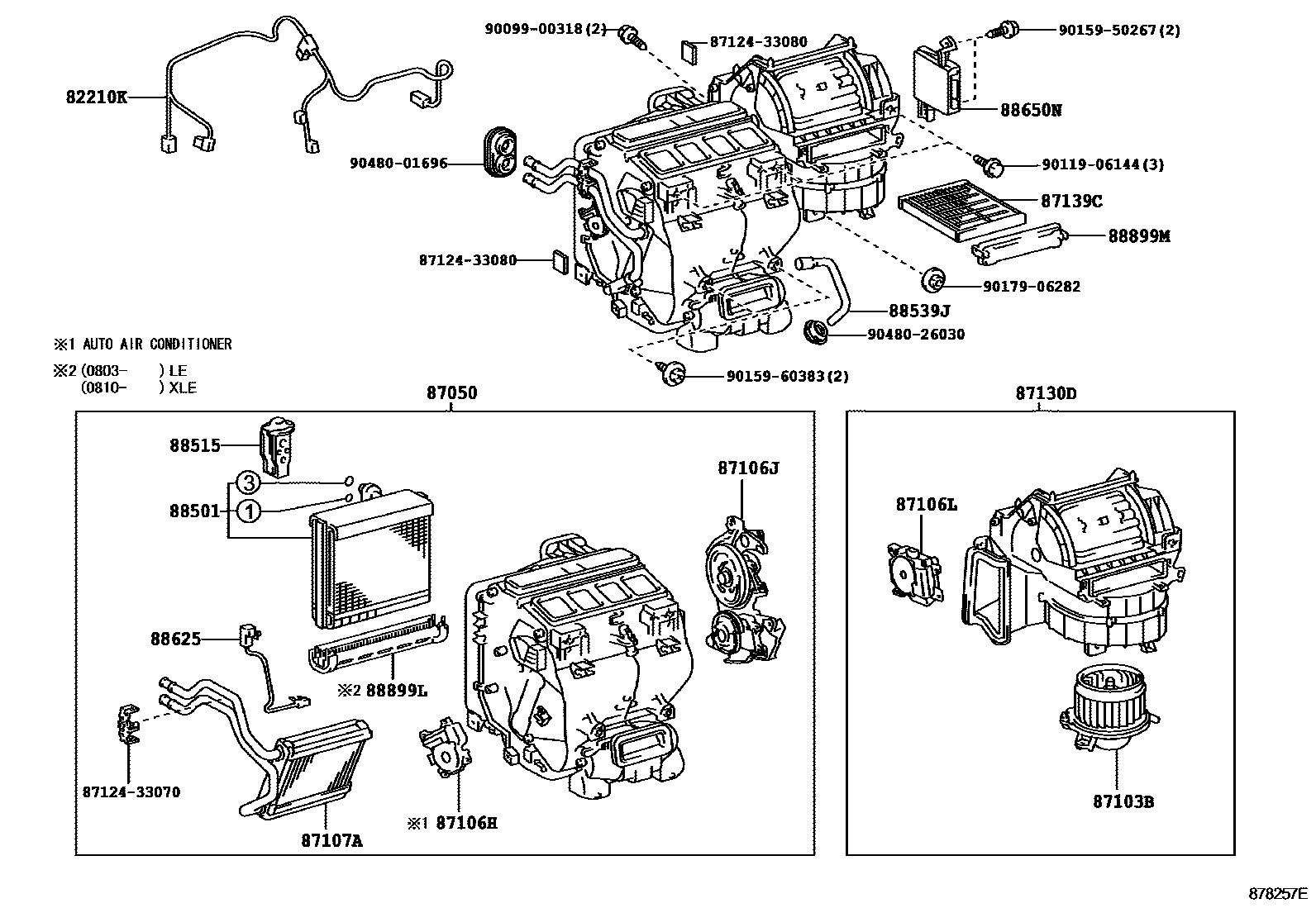

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1O-RING

82210KHARNESS ASSY, AIR CONDITIONER

main82212-33020iACV40,GSV40..JPP..XLE200601-200609

main82212-33021iACV40,GSV40..JPP..XLE200610-200901

main82212-33030iACV40,GSV40..JPP..LE200601-200609

main82212-33031iACV40,GSV40..JPP..LE200610-200901

87050RADIATOR ASSY, AIR CONDITIONER

main87050-33540iACV40,GSV40..JPP..XLE200601-200701

main87050-33541iACV40,GSV40..JPP..XLE200701-200702

main87050-33542iACV40,GSV40..JPP..XLE200703-200803

main87050-33543iASV40,GSV40..JPP..XLE200901-201108

main87050-33620iACV40,GSV40..JPP..LE200601-200612

main87050-33621iACV40,GSV40..JPP..LE200701-200802

main87050-33622iACV40,GSV40..JPP..LE200803-200901

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-33090iACV40,GSV40..JPP..XLE200601-200709

main87103-48080iACV40,GSV40..JPP200803-200901

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-33260iACV40,GSV40..JPP..XLE200601-200901

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-33250iACV40,GSV40..JPP..LE200601-200901

main87106-33290iASV40,GSV40..JPP..XLE200901-201108

87106LSERVO SUB-ASSY, DAMPER

main87106-33270×2iACV40,GSV40..JPP..XLE200709-200803

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-33120iACV40,GSV40..JPP200601-200901

87130DBLOWER ASSY

main87130-33200iACV40,GSV40..JPP200601-200803

main87130-48200iACV40,GSV40..JPP..XLE200803-200810

main87130-48220iACV40,GSV40..JPP..XLE200810-200901

87139CFILTER, CLEAN AIR

main87139-30040iASV40,GSV40..JPP200901-201108

POLLEN FILTER

main87139-50060iASV40,GSV40..JPP200901-201108

DEODORANT FILTER

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-28400iACV40,GSV40..JPP200803-200901

main88501-33120iACV40,GSV40..JPP200601-200701

main88501-33190iACV40,GSV40..JPP200701-200803

main88501-33200iASV40,GSV40..JPP200901-200906

main88501-48310iASV40,GSV40..JPP200906-201007

main88501-48311iASV40,GSV40..JPP201007-201108

88515VALVE, COOLER EXPANSION

main88515-33020iACV40,GSV40..JPP200601-200901

88539JHOSE, DRAIN COOLER

main88539-33090iACV40,GSV40..JPP200601-200901

88625THERMISTOR, COOLER, NO.1

main88625-33190iACV40,GSV40..JPP200601-200901

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-33660iASV40..JPP..LE200901-201108

main88650-33680iACV40..JPP..LE200601-200702

main88650-33681iACV40..JPP..LE200703-200901

main88650-33690iACV40..JPP..XLE200601-200702

main88650-33691iACV40..JPP..XLE200703-200901

main88650-33700iGSV40..JPP..LE200601-200702

main88650-33701iGSV40..JPP..LE200703-200901

main88650-33710iGSV40..JPP..XLE200601-200702

main88650-33711iGSV40..JPP..XLE200703-200901

main88650-33730iGSV40..JPP..LE200901-201108

main88650-33A00iGSV40..JPP..XLE200901-201011

main88650-33A01iGSV40..JPP..XLE201012-201108

main88650-33890supersedes 88650-33672iASV40..JPP..XLE200901-200907

KOREA SPEC

88899LPARTS, COOLING UNIT

main88899-33050iACV40,GSV40..JPP..LE200803-200901

88899MPLATE, COVER(FOR AIR FILTER)

main88899-33040iACV40,GSV40..JPP200601-200901

8712433070CLAMP, HEATER

main87124-33070

8712433080CLAMP, HEATER

main87124-33080

9009900318

main90099-00318

9011906144

main90119-06144

9015950267

main90159-50267

9015960383

main90159-60383

9017906282

main90179-06282

9048001696

main90480-01696

9048026030

main90480-26030

25 parts on this diagram · 2 diagrams in section
