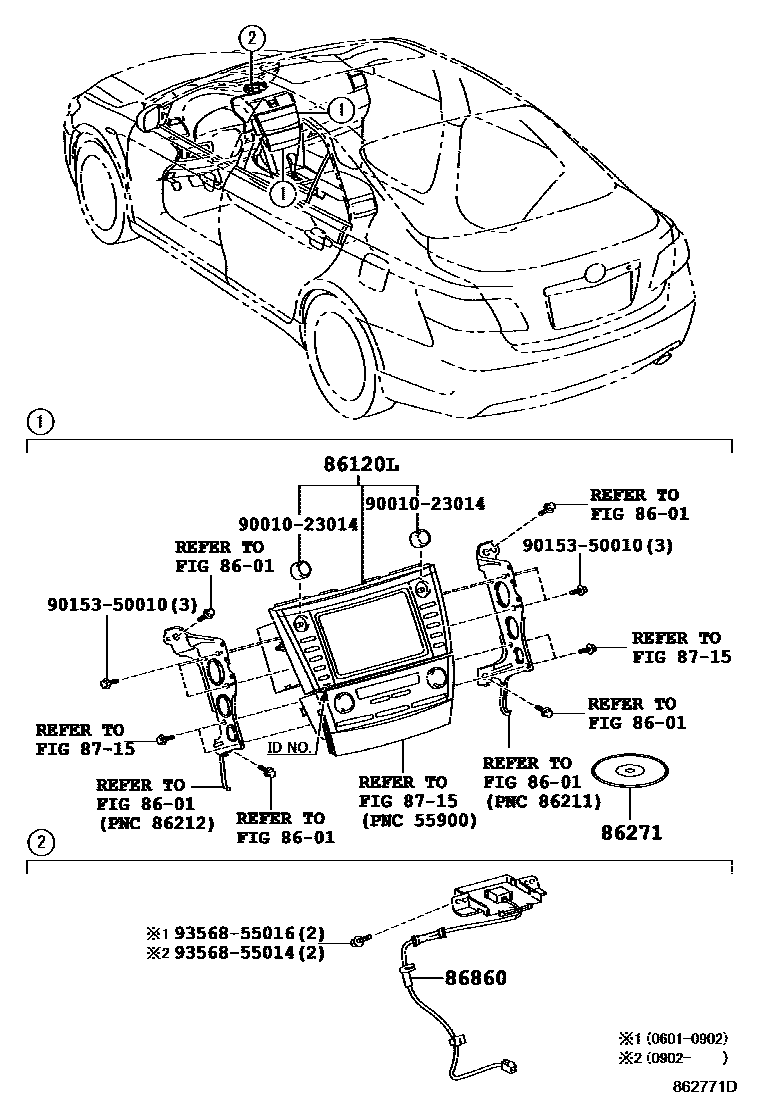

NAVIGATION & FRONT MONITOR DISPLAY

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86120LRECEIVER ASSY, NAVIGATION

main86120-33A10iACV40,GSV40..JPP..XLE200601-200901

DENSO,ID=E7012,AUDIO-AVN 2W 8SPEAKER PREMIUM SYSTEM

main86120-33C20iASV40..JPP..XLE200907-201103

DENSO,ID=E8020,KOREA SPEC&AUDIO-AVN,6SPEAKER,BLUETOOTH

main86120-33C21iASV40..JPP..XLE201104-201108

DENSO,ID=E8020,KOREA SPEC&AUDIO-AVN,6SPEAKER,BLUETOOTH

main86120-33D90iASV40,GSV40..JPP..XLE200901-201108

DENSO,ID=E7024,AUDIO-AVN,8SPEAKER,PREMIUM SYSTEM

86271DISC, DISC PLAYER

main86271-53020iACV40,GSV40..JPP..XLE200601-200607

AUDIO-AVN 2W 8SPEAKER PREMIUM SYSTEM

main86271-53021iACV40,GSV40..JPP..XLE200608-200708

AUDIO-AVN 2W 8SPEAKER PREMIUM SYSTEM

main86271-53022iACV40,GSV40..JPP..XLE200709-200807

AUDIO-AVN 2W 8SPEAKER PREMIUM SYSTEM

main86271-53023iACV40,GSV40..JPP..XLE200808-200901

AUDIO-AVN 2W 8SPEAKER PREMIUM SYSTEM

main86271-73010iASV40,GSV40..JPP..XLE200901-200907

AUDIO-AVN,8SPEAKER,PREMIUM SYSTEM

main86271-73011iASV40,GSV40..JPP..XLE200908-201007

AUDIO-AVN,8SPEAKER,PREMIUM SYSTEM

main86271-73012iASV40,GSV40..JPP..XLE201007-201108

AUDIO-AVN,8SPEAKER,PREMIUM SYSTEM

86860ANTENNA ASSY, NAVIGATION

main86860-33110iACV40,GSV40..JPP..XLE200601-200901

AUDIO-AVN 2W 8SPEAKER PREMIUM SYSTEM

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9001023014

main90010-23014

9015350010

main90153-50010

9356855014

main93568-55014

9356855016

main93568-55016

9 parts on this diagram · 1 diagram in section
