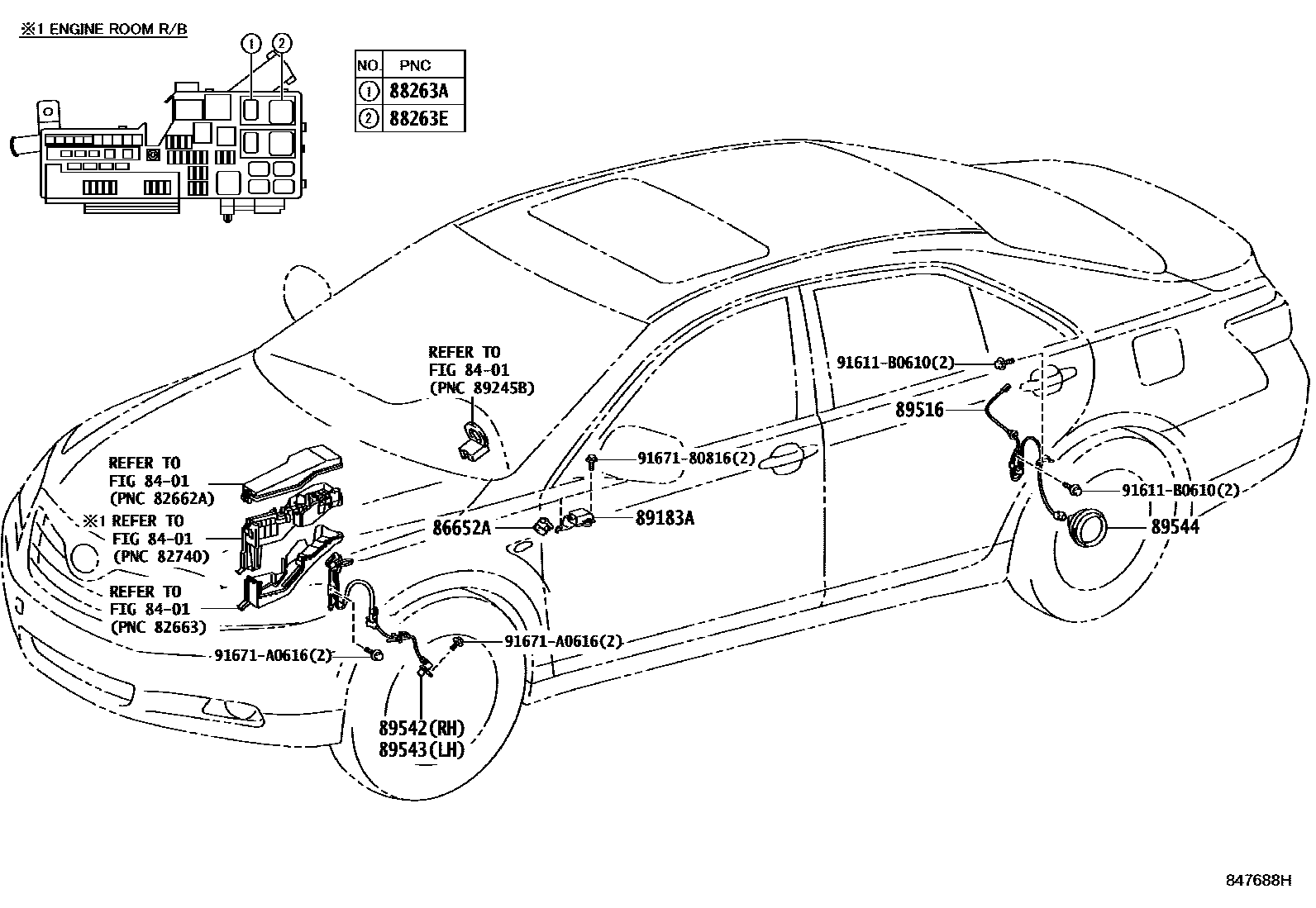

ABS & VSC

0001 1 0002 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86652ABUZZER ASSY, SKID CONTROL

main86652-48010iASV40,GSV40..JPP200901-201001

88263ARELAY, SKID CONTROL

main88263-32070iASV40,GSV40..JPP200901-201108

88263ERELAY, SKID CONTROL NO.2

main88263-21010iASV40,GSV40..JPP200901-201108

89183ASENSOR, YAWRATE

main89180-33050iASV40,GSV40..JPP200901-201108

89516WIRE, SKID CONTROL SENSOR

main89516-33030iACV40,GSV40..JPP200601-200901

RH

main89516-33040iACV40,GSV40..JPP200601-200901

LH

main89516-33050iASV40,GSV40..JPP200901-201108

RH

main89516-33060iASV40,GSV40..JPP200901-201108

LH

89542SENSOR, SPEED, FRONT RH

main89542-33090iACV40,GSV40..JPP200601-200901

89543SENSOR, SPEED, FRONT LH

main89543-33080iACV40,GSV40..JPP200601-200901

89544SENSOR, SKID CONTROL

main89544-48010×2iACV40,GSV40..JPP200601-200901

91611B0610

main91611-B0610

9167180816

main91671-80816

91671A0616

main91671-A0616

12 parts on this diagram · 2 diagrams in section
