ARMREST & VISOR

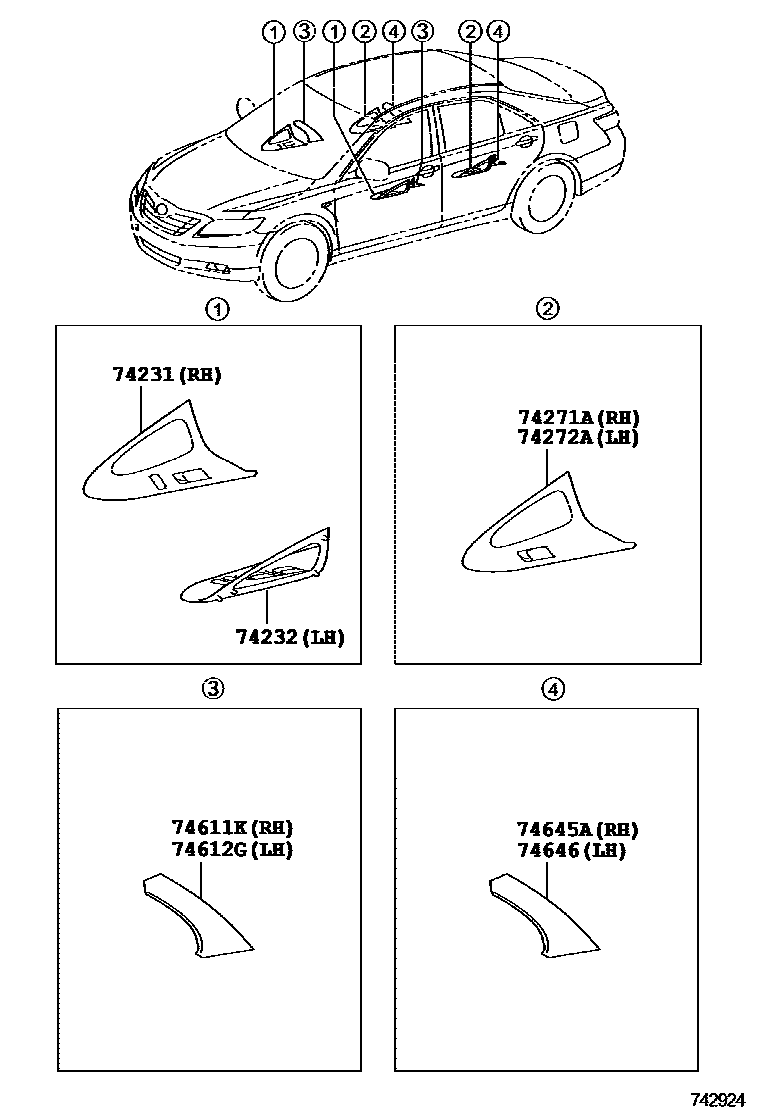

Parts diagram
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-33350-B0i200901-201108
GRAY,TRIM1#
main74231-33350-E0i200901-201108
GREGE,TRIM4#
main74231-33390-E0i200601-200707
LT.BROWN,TRIM1#,4#
main74231-33391-E2i200901-201108
BROWN,TRIM1#,4#
main74231-33400-B1i200601-200901
GRAY,TRIM1#
main74231-33400-E0i200601-200901
GREGE,TRIM4#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-33270-B0i200901-201108
GRAY,TRIM1#
main74232-33270-E0i200901-201108
GREGE,TRIM4#
main74232-33290-E0i200901-201108
BROWN,TRIM1#,4#
main74232-33320-E0i200601-200707
LT.BROWN,TRIM1#,4#
main74232-33321-E2i200707-200901
BROWN,TRIM1#,4#
main74232-33330-B1i200601-200901
GRAY,TRIM1#
main74232-33330-E0i200601-200901
GREGE,TRIM4#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-33210-B0i200901-201108
GRAY,TRIM1#
main74271-33210-E0i200901-201108
GREGE,TRIM4#
main74271-33230-E0i200601-200707
LT.BROWN,TRIM1#,4#
main74271-33231-E2i200901-201108
BROWN,TRIM1#,4#
main74271-33240-B1i200601-200901
GRAY,TRIM1#
main74271-33240-E0i200601-200901
GREGE,TRIM4#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-33210-B0i200901-201108
GRAY,TRIM1#
main74272-33210-E0i200901-201108
GREGE,TRIM4#
main74272-33230-E0i200601-200707
LT.BROWN,TRIM1#,4#
main74272-33231-E2i200707-200901
BROWN,TRIM1#,4#
main74272-33240-B1i200601-200901
GRAY,TRIM1#
main74272-33240-E0i200601-200901
GREGE,TRIM4#
74611KCOVER, ASSIST GRIP, RH FRONT SIDE
main74612-33040-B1i200901-201108
GRAY,TRIM1#
main74612-33040-E0i200901-201108
GREGE,TRIM4#
main74612-33050i200601-200901
74612GCOVER, ASSIST GRIP, LH FRONT SIDE
main74611-33030-B1i200901-201108
GRAY,TRIM1#
main74611-33030-E0i200601-200901
GREGE,TRIM4#
main74611-33040i200901-201108
74645ACOVER, DOOR ASSIST GRIP, RH
main74645-33030-B1i200601-200901
GRAY,TRIM1#
main74645-33030-E0i200901-201108
GREGE,TRIM4#
main74645-33040i200901-201108
74646COVER, DOOR ASSIST GRIP, LH
main74646-33030-B1i200901-201108
GRAY,TRIM1#
main74646-33030-E0i200601-200901
GREGE,TRIM4#
main74646-33040i200901-201108

8 parts on this diagram · 2 diagrams in section
