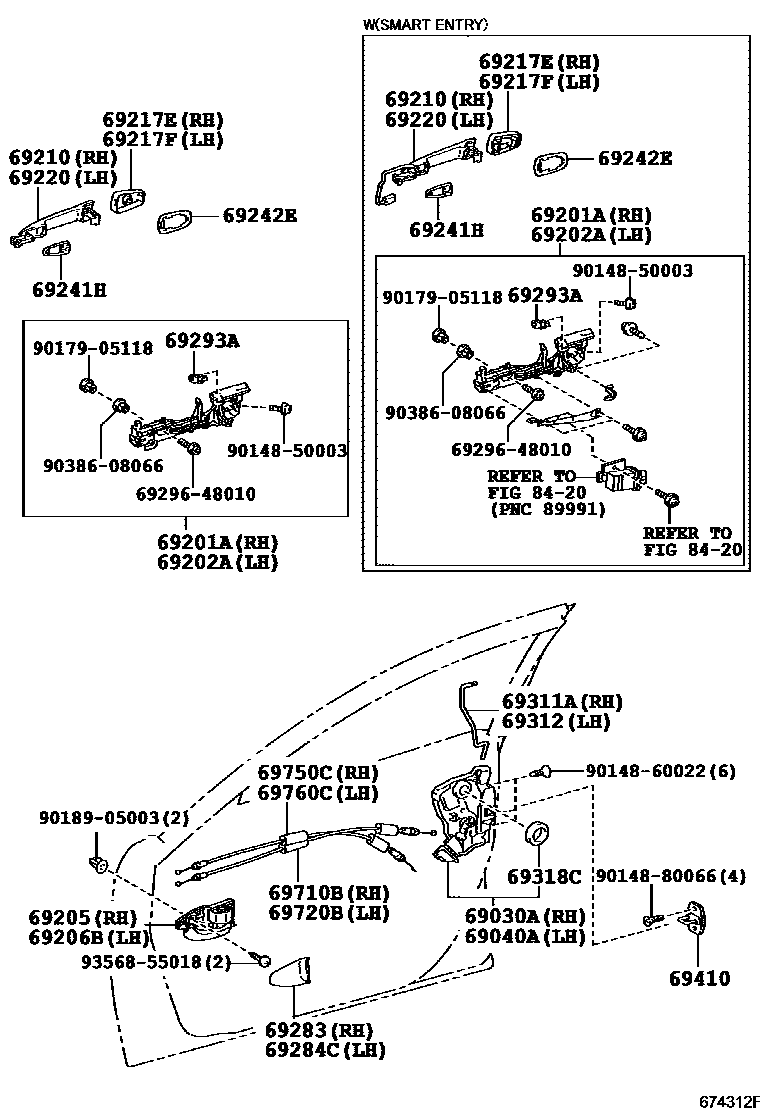

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
WIRELESS DOOR LOCK-W/O
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
STARTING SYSTEM-PUSH BUTTON
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
STARTING SYSTEM-PUSH BUTTON
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM1#,4#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM1#,4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
SILVER ME.,1D4
BLACK,202
BEIGE M. M.,4Q2
TURQUOISE M.M.,776
BEIGE ME.,4T8
SILVER ME.,1F7
GRAY ME.,1G3
DK.GREEN MC.,6V4
LT.BLUE ME.,8S4
DK.BLUE MC.,8T5
RED M.M.,3R3
STARTING SYSTEM-PUSH BUTTON,SUPER WHITE 2,040
STARTING SYSTEM-PUSH BUTTON,SILVER ME.,1F7
STARTING SYSTEM-PUSH BUTTON,SILVER ME.,1D4
STARTING SYSTEM-PUSH BUTTON,GRAY ME.,1G3
STARTING SYSTEM-PUSH BUTTON,BLACK,202
STARTING SYSTEM-PUSH BUTTON,RED M.M.,3R3
STARTING SYSTEM-PUSH BUTTON,BEIGE M. M.,4Q2
STARTING SYSTEM-PUSH BUTTON,BEIGE ME.,4T8
STARTING SYSTEM-PUSH BUTTON,DK.GREEN MC.,6V4
STARTING SYSTEM-PUSH BUTTON,TURQUOISE M.M.,776
STARTING SYSTEM-PUSH BUTTON,LT.BLUE ME.,8S4
STARTING SYSTEM-PUSH BUTTON,DK.BLUE MC.,8T5
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
SUPER WHITE 2,040
SILVER ME.,1D4
BLACK,202
BEIGE M. M.,4Q2
TURQUOISE M.M.,776
BEIGE ME.,4T8
SILVER ME.,1F7
GRAY ME.,1G3
DK.GREEN MC.,6V4
LT.BLUE ME.,8S4
DK.BLUE MC.,8T5
RED M.M.,3R3
WIRELESS DOOR LOCK-WITHOUT,SUPER WHITE 2,040
WIRELESS DOOR LOCK-W/O,SILVER ME.,1D4
WIRELESS DOOR LOCK-W/O,BLACK,202
WIRELESS DOOR LOCK-W/O,BEIGE M. M.,4Q2
WIRELESS DOOR LOCK-W/O,TURQUOISE M.M.,776
WIRELESS DOOR LOCK-WITHOUT,BEIGE ME.,4T8
WIRELESS DOOR LOCK-W/O,SILVER ME.,1F7
WIRELESS DOOR LOCK-W/O,GRAY ME.,1G3
WIRELESS DOOR LOCK-WITHOUT,DK.GREEN MC.,6V4
WIRELESS DOOR LOCK-W/O,LT.BLUE ME.,8S4
WIRELESS DOOR LOCK-WITHOUT,DK.BLUE MC.,8T5
WIRELESS DOOR LOCK-W/O,RED M.M.,3R3
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
SUPER WHITE 2,040
SILVER ME.,1D4
BLACK,202
BEIGE M. M.,4Q2
TURQUOISE M.M.,776
BEIGE ME.,4T8
SILVER ME.,1F7
GRAY ME.,1G3
DK.GREEN MC.,6V4
LT.BLUE ME.,8S4
DK.BLUE MC.,8T5
RED M.M.,3R3
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
SILVER ME.,1D4
BLACK,202
BEIGE M. M.,4Q2
TURQUOISE M.M.,776
BEIGE ME.,4T8
SILVER ME.,1F7
GRAY ME.,1G3
DK.GREEN MC.,6V4
LT.BLUE ME.,8S4
DK.BLUE MC.,8T5
RED M.M.,3R3
STARTING SYSTEM-PUSH BUTTON,SUPER WHITE 2,040
STARTING SYSTEM-PUSH BUTTON,SILVER ME.,1F7
STARTING SYSTEM-PUSH BUTTON,SILVER ME.,1D4
STARTING SYSTEM-PUSH BUTTON,GRAY ME.,1G3
STARTING SYSTEM-PUSH BUTTON,BLACK,202
STARTING SYSTEM-PUSH BUTTON,RED M.M.,3R3
STARTING SYSTEM-PUSH BUTTON,BEIGE M. M.,4Q2
STARTING SYSTEM-PUSH BUTTON,BEIGE ME.,4T8
STARTING SYSTEM-PUSH BUTTON,DK.GREEN MC.,6V4
STARTING SYSTEM-PUSH BUTTON,TURQUOISE M.M.,776
STARTING SYSTEM-PUSH BUTTON,LT.BLUE ME.,8S4
STARTING SYSTEM-PUSH BUTTON,DK.BLUE MC.,8T5
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM1#,4#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM1#,4#
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
8420WIRELESS DOOR LOCK
6929648010SCREW, DOOR INSIDE HANDLE
main69296-48010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9017905118
main90179-05118
9018905003
main90189-05003
9038608066
main90386-08066
9356855018
main93568-55018
32 parts on this diagram · 1 diagram in section
