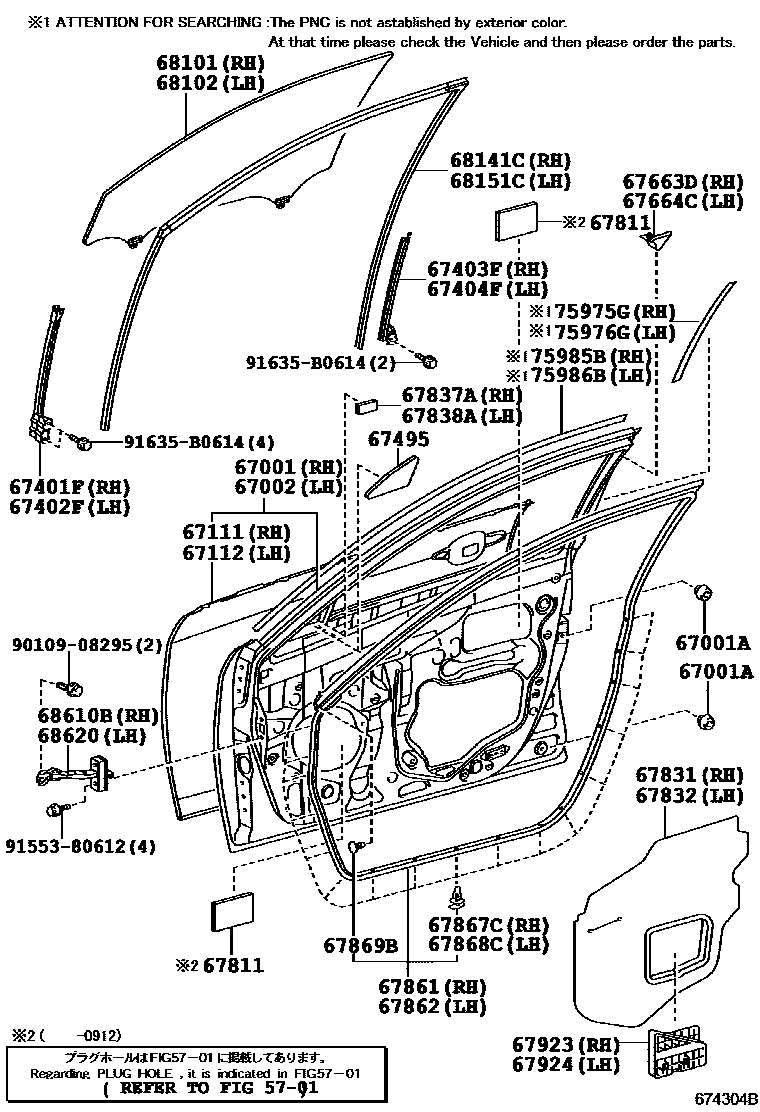

FRONT DOOR PANEL & GLASS
5701HOLE PLUG
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67495COVER, FRONT DOOR FRONT LOWER FRAME, UPPER
67663DGARNISH, DOOR FRAME, RH
67664CGARNISH, DOOR FRAME, LH
67811PAD, FRONT DOOR SILENCER
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67837ASEAL, FRONT DOOR VENT, RH
67838ASEAL, FRONT DOOR VENT, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67869BCLIP, FRONT DOOR WEATHERSTRIP
67923CUSHION, FRONT DOOR STIFFENER, NO.1
67924CUSHION, FRONT DOOR STIFFENER, NO.2
68101GLASS SUB-ASSY, FRONT DOOR, RH
*UVCT,T=5.0,GREEN
68102GLASS SUB-ASSY, FRONT DOOR, LH
*UVCT,T=5.0,GREEN
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
75975GSTRIPE, FRONT DOOR, NO.2 RH
75976GSTRIPE, FRONT DOOR, NO.2 LH
75985BSTRIPE, FRONT DOOR, NO.3 RH
75986BSTRIPE, FRONT DOOR, NO.3 LH
9010908295
main90109-08295
9155380612
main91553-80612
91635B0614
main91635-B0614
38 parts on this diagram · 2 diagrams in section
