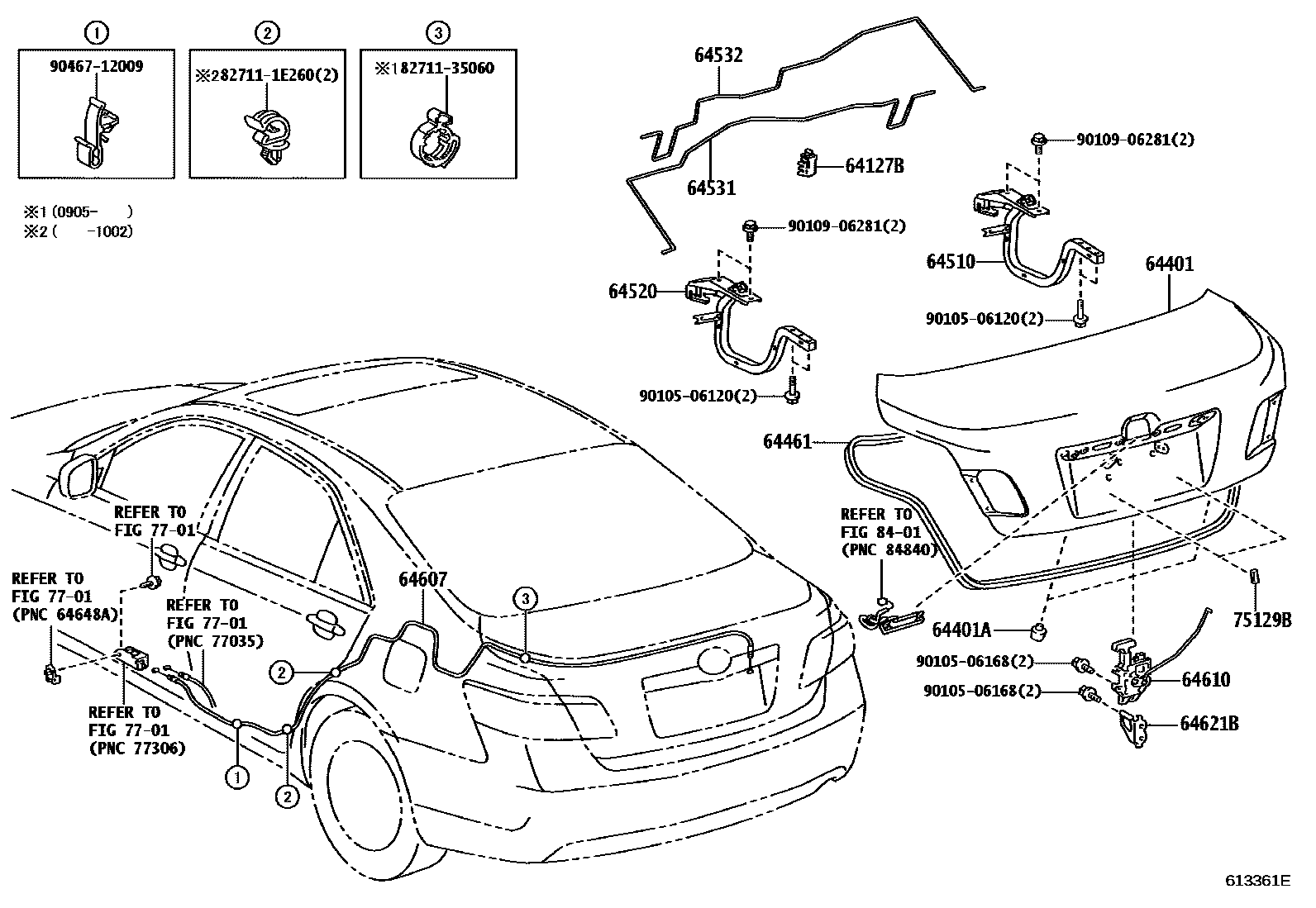

LUGGAGE COMPARTMENT DOOR & LOCK
64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
KOREA SPEC
KOREA SPEC
BACK MONITOR-WITH; STARTING SYSTEM-PUSH BUTTON; STARTING SYSTEM-PUSH BUTTON&BACK MONITOR-WITH
KOREA SPEC&BACK MONITOR-WITH
KOREA SPEC&BACK MONITOR-WITH
BACK MONITOR-WITH; STARTING SYSTEM-PUSH BUTTON; STARTING SYSTEM-PUSH BUTTON&BACK MONITOR-WITH
BACK MONITOR-WITH; STARTING SYSTEM-PUSH BUTTON; STARTING SYSTEM-PUSH BUTTON&BACK MONITOR-WITH
64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
WIRELESS DOOR LOCK-WITHOUT
64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK
75129BCUSHION, REAR LICENCE PLATE
7701FUEL TANK & TUBE
8401SWITCH & RELAY & COMPUTER
827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E260
8271135060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-35060
9010506120
main90105-06120
9010506168
main90105-06168
9010906281
main90109-06281
9046712009
main90467-12009
20 parts on this diagram · 1 diagram in section
