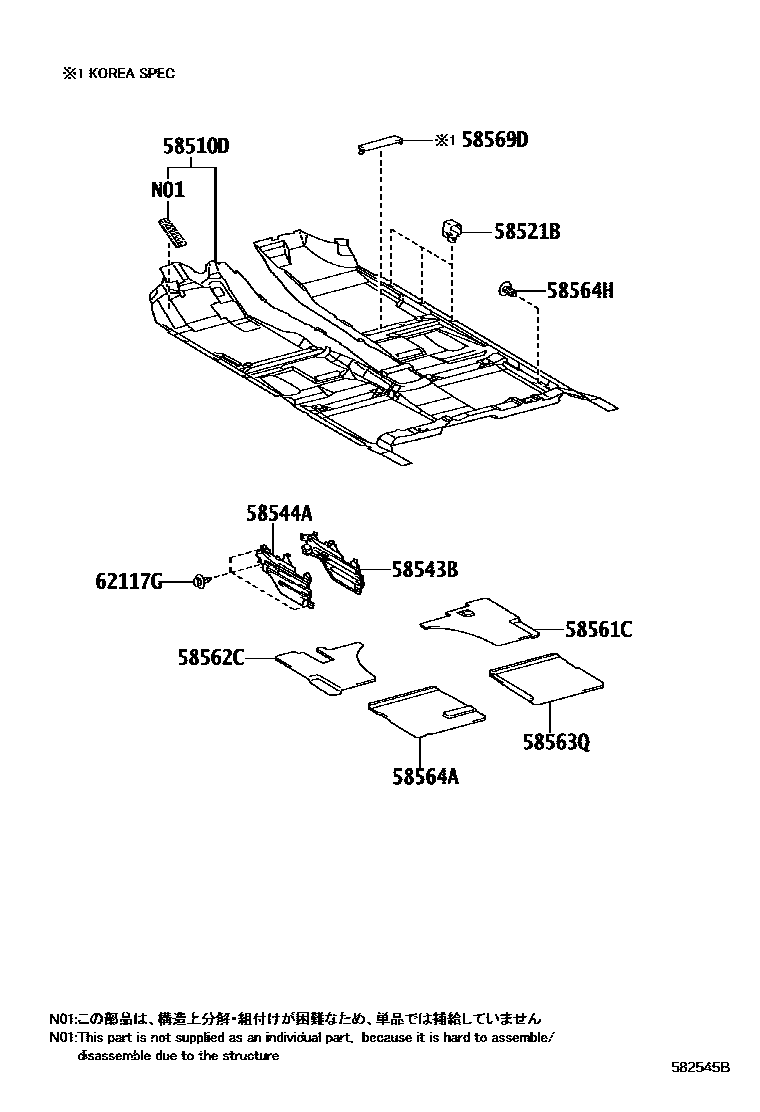

MAT & CARPET
58510DCARPET ASSY, FLOOR, FRONT
MD. GRAY,TRIM1#
GREGE,TRIM4#
MD. GRAY,TRIM1#
GREGE,TRIM4#
MD. GRAY,TRIM1#
GREGE,TRIM4#
KOREA SPEC,MD. GRAY,TRIM1#
KOREA SPEC,GREGE,TRIM4#
58521BHOOK, FLOOR CARPET
58543BBRACKET, FLOOR CARPET, RH
58544ABRACKET, FLOOR CARPET, LH
58561CSILENCER, FRONT FLOOR, NO.1
58562CSILENCER, FRONT FLOOR, NO.2
58563QSILENCER, FRONT FLOOR, NO.3
58564ASILENCER, FRONT FLOOR, NO.4
58564HCLIP(FOR REAR FLOOR CARPET)
BLACK
58569DCOVER, FRONT FLOOR CAUTION PLATE
KOREA SPEC,GRAY,TRIM1#
KOREA SPEC,GREGE,TRIM4#
62117GCLIP, NO.2(FOR COWL SIDE TRIM)
BLACK
11 parts on this diagram · 1 diagram in section
