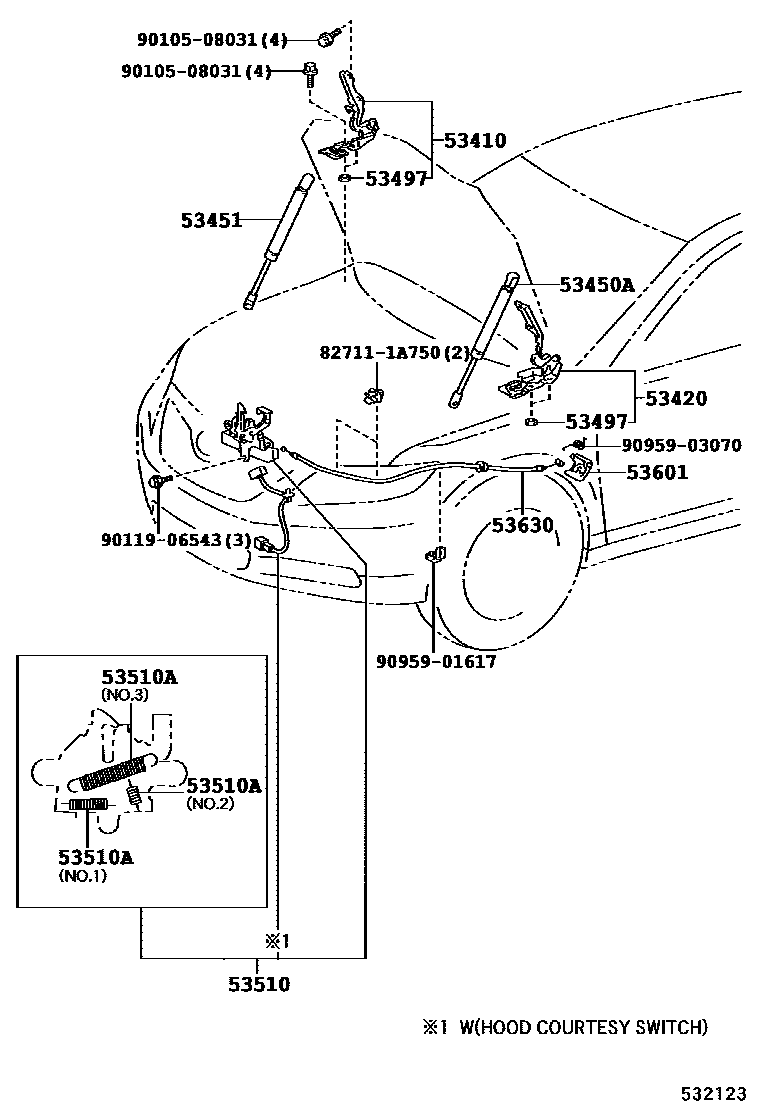

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-33180iACV40,GSV40..JPP200601-200901

53420HINGE ASSY, HOOD, LH

main53420-33180iACV40,GSV40..JPP200601-200901

53450ASUPPORT ASSY, HOOD, LH

main53450-06040iACV40,GSV40..JPP200601-200901

main53450-06041iASV40,GSV40..JPP201011-201108

53451ROD, HOOD SUPPORT

main53440-06050iACV40,GSV40..JPP200601-200901

main53440-06051iASV40,GSV40..JPP201011-201108

53497PAD, HOOD HINGE, NO.1

main53497-20070×4iACV40,GSV40..JPP200601-200901

T=2.0

main53497-42010×4iACV40,GSV40..JPP200601-200901

T=0.5

53510LOCK ASSY, HOOD

main53510-33270iACV40,GSV40..JPP..LE200601-200901

main53510-33310iASV40,GSV40..JPP..XLE200901-201002

main53510-33311iASV40,GSV40..JPP..XLE201003-201012

main53510-33390iASV40,GSV40..JPP..XLE201012-201108

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iACV40,GSV40..JPP200601-200901

WD=0.9,CW=21,NO.1

main90506-12063iASV40,GSV40..JPP200901-201108

WD=1.2,CW=8.5,NO.2

main90506-18067iASV40,GSV40..JPP200901-201108

WD=1.8,CW=13,NO.3

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53611-12040-B7iACV40,GSV40..JPP200601-200901

GRAY,TRIM1#

main53611-12040-E2iACV40,GSV40..JPP200601-200901

GREGE,TRIM4#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-33140iACV40,GSV40..JPP200601-200901

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750

9010508031

main90105-08031

9011906543

main90119-06543

9095901617

main90959-01617

9095903070

main90959-03070

14 parts on this diagram · 1 diagram in section
