BRAKE MASTER CYLINDER

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-33450iACV40..JPP..5F200601-200901

main47201-33470iACV40,GSV40..JPP..ATM200601-200901

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH001iACV40,GSV40..JPP200601-200901

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-33030iACV40..JPP..5F200601-200901

main47220-33060iACV40,GSV40..JPP..ATM200601-200901

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90015-AE401iACV40,GSV40..JPP200601-200901

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-48090iACV40,GSV40..JPP200601-200901

47255GROMMET, MASTER CYLINDER RESERVOIR

main90015-AT001×2iACV40,GSV40..JPP200601-200901

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-52110iACV40,GSV40..JPP200601-200901

9017908204

main90179-08204

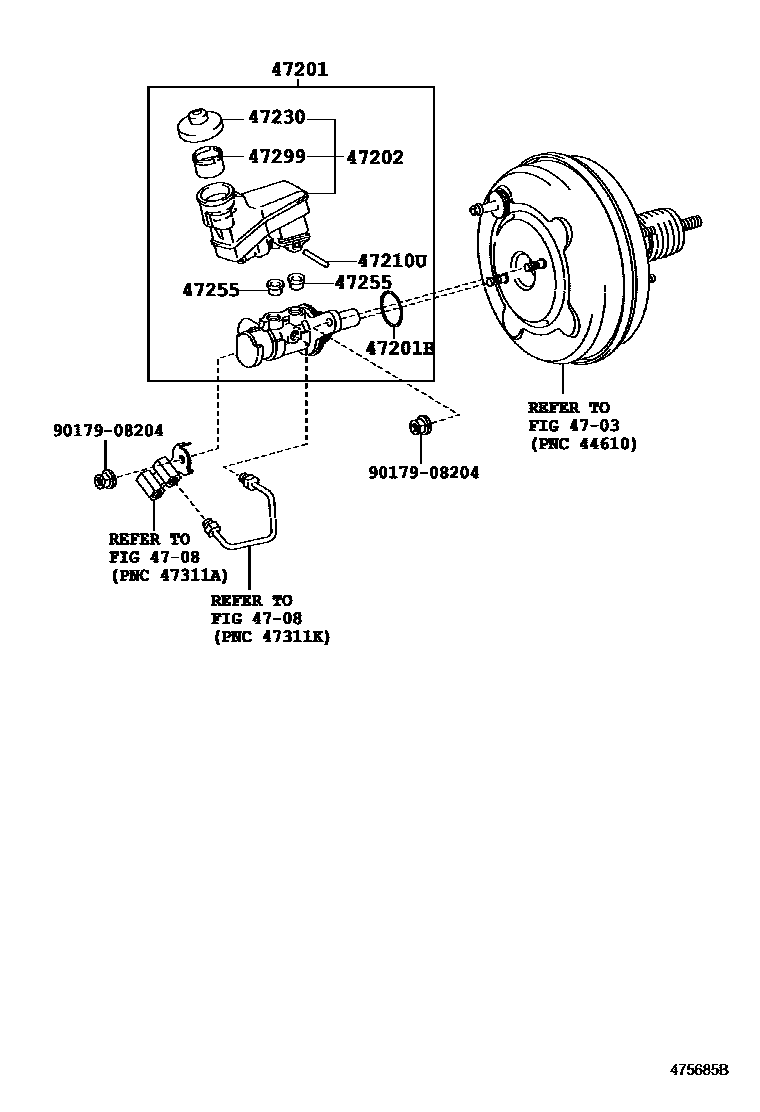

10 parts on this diagram · 1 diagram in section
