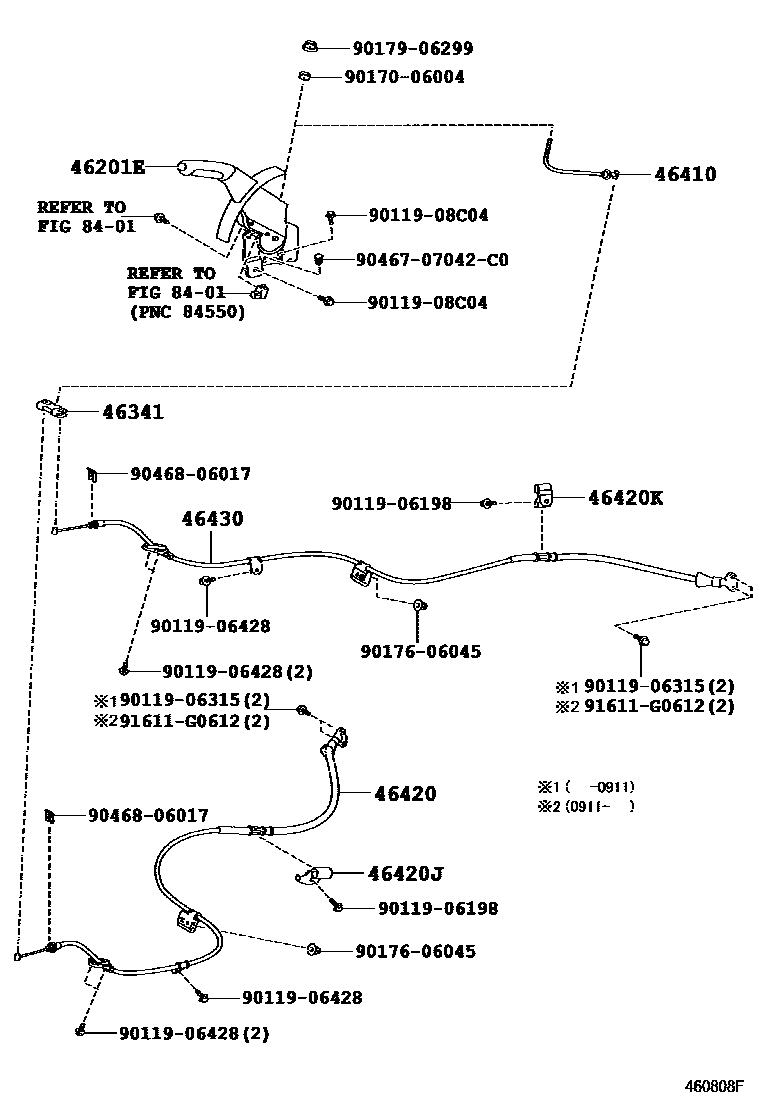

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-33210-B0iACV40..JPP..5F200601-200901

MD.GRAY,TRIM1#

main46201-33210-E0iACV40..JPP..5F200601-200901

ASH BROWN,TRIM4#

46341EQUALIZER, PARKING BRAKE

main46341-33030iACV40,GSV40..JPP200601-201108

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-33150iACV40..JPP..5F200601-200901

main46410-33170iACV40,GSV40..JPP..ATM200601-201108

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-33140iACV40..JPP..5F200601-200901

main46420-33170iACV40,GSV40..JPP..ATM200601-201108

sub46420-33171

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main90949-01C61iACV40,GSV40..JPP200601-201108

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main90949-01C62iACV40,GSV40..JPP200601-201108

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-33140iACV40..JPP..5F200601-200901

main46430-33170iACV40,GSV40..JPP..ATM200601-201108

sub46430-33171

8401

9011906198

main90119-06198

9011906315

main90119-06315

9011906428

main90119-06428

9011908C04

main90119-08C04

9017006004

main90170-06004

9017606045

main90176-06045

9017906299

main90179-06299

9046707042C0

main90467-07042C0

9046806017

main90468-06017

91611G0612

main91611-G0612

18 parts on this diagram · 3 diagrams in section
