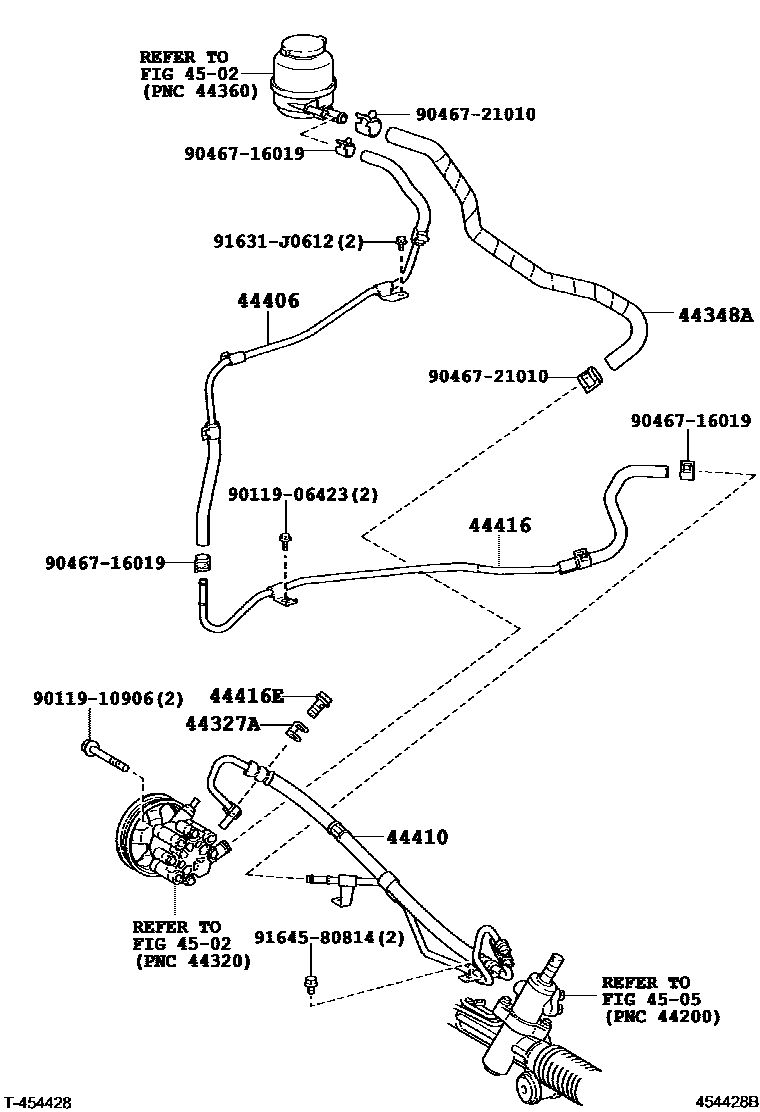

POWER STEERING TUBE

0001 1 0002 1 0003 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iACV40,GSV40..JPP200601-200901

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-33240iACV40..JPP200601-200901

main44348-33250iGSV40..JPP200601-200901

main44348-33270iASV40..JPP200901-201108

44406TUBE SUB-ASSY, RETURN

main44406-33120iACV40,GSV40..JPP200601-200607

main44406-33121iACV40,GSV40..JPP200607-200901

44410TUBE ASSY, PRESSURE FEED

main44410-33180iACV40..JPP200601-200901

main44410-33240iGSV40..JPP200601-200901

main44410-33241iGSV40..JPP200901-200904

main44410-33242iGSV40..JPP200905-201108

main44410-33260iASV40..JPP200901-201108

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-33170iACV40..JPP200601-200607

main44416-33171iACV40..JPP200607-200901

main44416-33190iGSV40..JPP200601-200607

main44416-33191iGSV40..JPP200607-200901

main44416-33230iASV40..JPP200901-201108

44416EBOLT, UNION(FOR RETURN TUBE)

main96341-41603iACV40,GSV40..JPP200601-200901

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9011906423

main90119-06423

9011910906

main90119-10906

9046716019

main90467-16019

9046721010

main90467-21010

91631J0612

main91631-J0612

9164580814

main91645-80814

14 parts on this diagram · 3 diagrams in section
