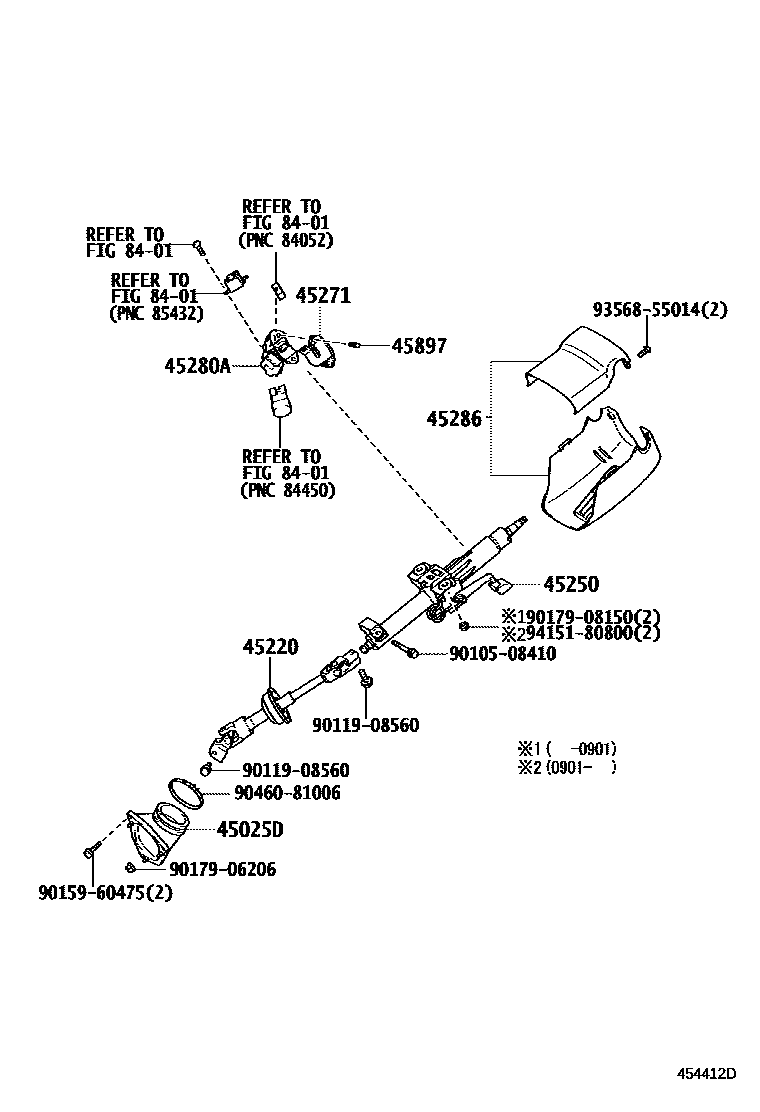

STEERING COLUMN & SHAFT

0001 1 0002 1W(SMART KEY SYSTEM)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-33110iACV40,GSV40..JPP200601-200901

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-33190iACV40,GSV40..JPP200601-200708

main45220-33280iACV40,GSV40..JPP200709-200807

main45220-33281iACV40,GSV40..JPP200808-200901

45250COLUMN ASSY, STEERING

main45250-33660iACV40,GSV40..JPP200601-200901

main45250-33670iGSV40..JPP..XLE200601-200901

STARTING SYSTEM-PUSH BUTTON

45271CLAMP, STEERING COLUMN, UPPER

main45271-22020iACV40,GSV40..JPP200810-200901

main45271-33050iACV40,GSV40..JPP200601-200810

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-22510iACV40,GSV40..JPP..ATM200601-200901

main45280-52090iACV40..JPP..5F200601-200901

45286COVER, STEERING COLUMN

main45286-33932-B2iACV40,GSV40..JPP200601-200810

MD.GRAY,TRIM1#

main45286-33932-E2iACV40,GSV40..JPP200601-200810

ASH BROWN,TRIM4#

main45286-33936-B2iASV40,GSV40..JPP200901-201004

MD.GRAY,TRIM1#

main45286-33936-E2iASV40,GSV40..JPP200901-201004

ASH BROWN,TRIM4#

main45286-33939-B2iASV40,GSV40..JPP201004-201108

MD.GRAY,TRIM1#

main45286-33939-E2iASV40,GSV40..JPP201004-201108

ASH BROWN,TRIM4#

main45286-33933-B2iGSV40..JPP..XLE200601-200810

STARTING SYSTEM-PUSH BUTTON,MD.GRAY,TRIM1#

main45286-33933-E2iGSV40..JPP..XLE200601-200810

STARTING SYSTEM-PUSH BUTTON,ASH BROWN,TRIM4#

main45286-33937-B2iGSV40..JPP..XLE200810-200901

STARTING SYSTEM-PUSH BUTTON,MD.GRAY,TRIM1#

main45286-33937-E2iGSV40..JPP..XLE200810-200901

STARTING SYSTEM-PUSH BUTTON,ASH BROWN,TRIM4#

main45286-33940-B1iGSV40..JPP..XLE201004-201108

STARTING SYSTEM-PUSH BUTTON,MD.GRAY,TRIM1#

main45286-33940-E0iGSV40..JPP..XLE201004-201108

STARTING SYSTEM-PUSH BUTTON,ASH BROWN,TRIM4#

45897BOLT, STEERING LOCK SET

main45897-12020×2iACV40,GSV40..JPP200601-200901

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508410

main90105-08410

9011908560

main90119-08560

9015960475

main90159-60475

9017906206

main90179-06206

9017908150

main90179-08150

9046081006

main90460-81006

9356855014

main93568-55014

9415180800

main94151-80800

16 parts on this diagram · 2 diagrams in section
