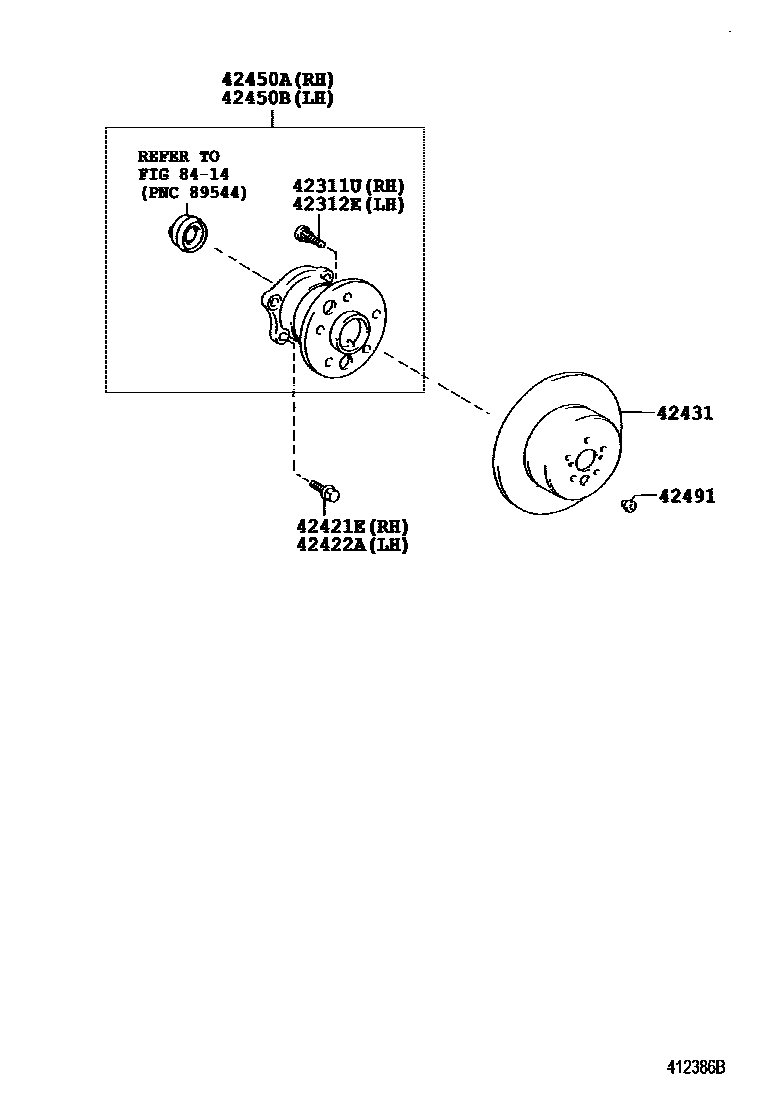

Toyota CAMRY (JPP)284 — REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

42312EBOLT, HUB(FOR REAR AXLE LH)

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

42431DISC, REAR

42431-33130

42450AHUB & BEARING ASSY, REAR AXLE, RH

42450BHUB & BEARING ASSY, REAR AXLE, LH

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

47491-22020

8414ABS & VSC

→ Go to FIG 84-14

9 parts on this diagram · 2 diagrams in section

REAR AXLE SHAFT & HUB for Toyota CAMRY (JPP)284

This section contains 9 genuine Toyota parts for the REAR AXLE SHAFT & HUB system of the Toyota CAMRY (JPP)284. Key components include: BOLT, HUB(FOR REAR AXLE RH), BOLT, HUB(FOR REAR AXLE LH), BOLT (FOR REAR AXLE BEARING CASE RH), BOLT (FOR REAR AXLE BEARING CASE LH), DISC, REAR.
