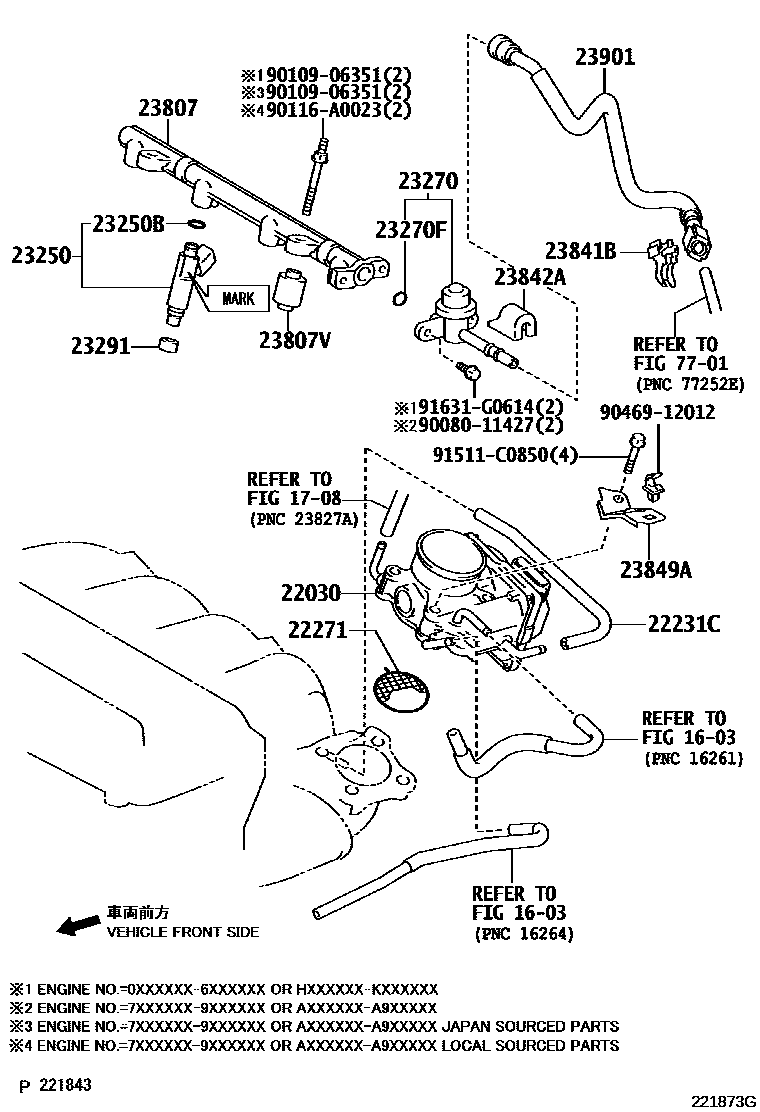

FUEL INJECTION SYSTEM
1603RADIATOR & WATER OUTLET
1708VACUUM PIPING
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
*195,*108
22231CHOSE, THROTTLE BODY, NO.1
*195,*108
22271GASKET, THROTTLE BODY
*195,*108
23250INJECTOR ASSY, FUEL
*108,MARK23250-0H030
*195,*108,MARK23250-28080
23250BRING, O(FOR FUEL INJECTOR)
*195,*108
*195,*108
23270DAMPER ASSY, FUEL PRESSURE PULSATION
*195,*108
*195,*108
*195,*108
23270FRING, O(FOR PULSATION DAMPER)
*195,*108
23291INSULATOR, INJECTOR VIBRATION
*195,*108
23807PIPE SUB-ASSY, FUEL DELIVERY
(L),*108
*195,(J),*108
23807VSPACER, NO.1(FOR DELIVERY PIPE)
*195,*108
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23849ASUPPORT, FUEL PIPE
*195,*108
23901TUBE SUB-ASSY, FUEL
7701FUEL TANK & TUBE
9008011427
main90080-11427
9010906351
main90109-06351
90116A0023
main90116-A0023
9046912012
main90469-12012
91511C0850
main91511-C0850
91631G0614
main91631-G0614
23 parts on this diagram · 3 diagrams in section
