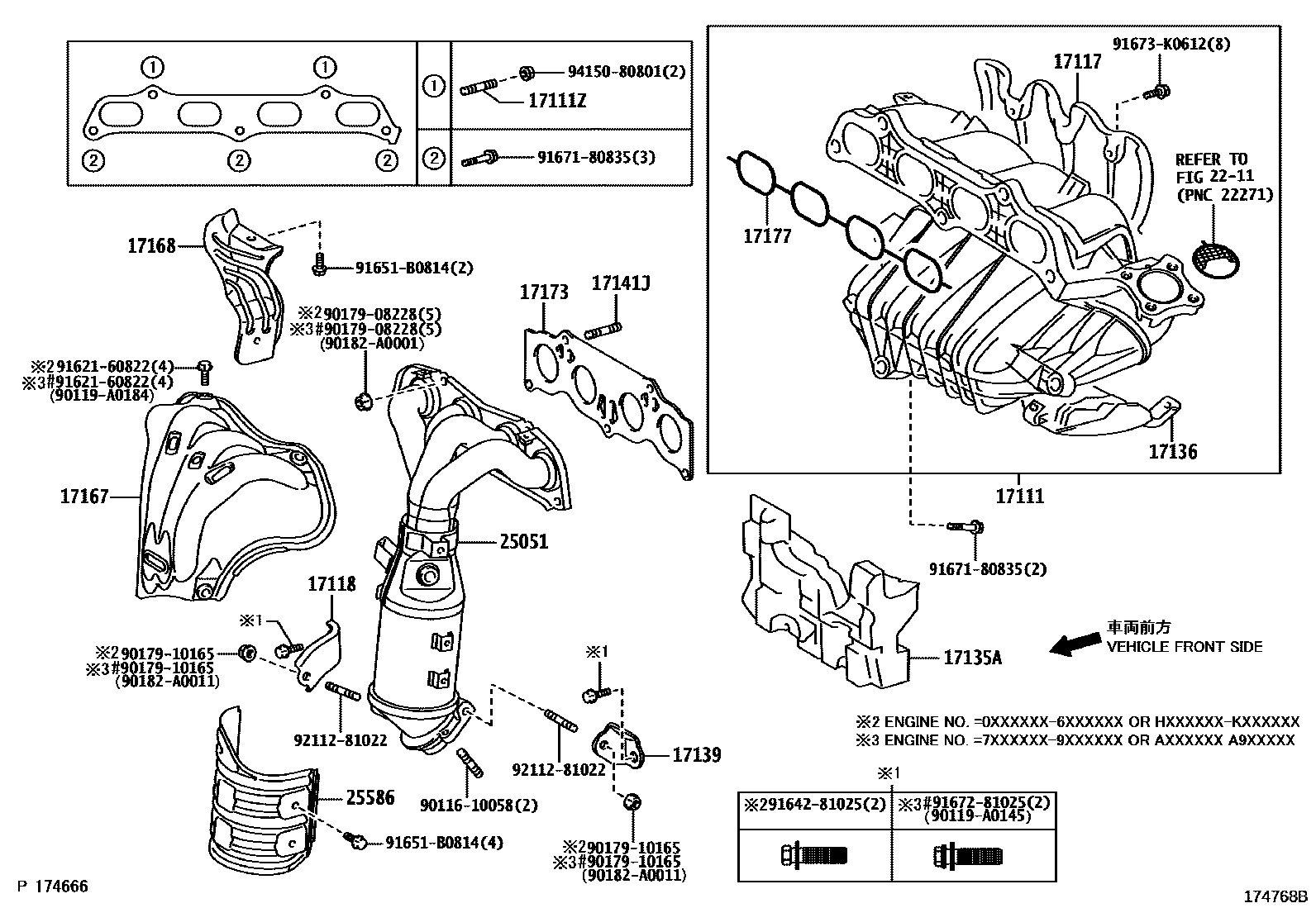

MANIFOLD
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
*195,(J),*108
(L),*108
17117INSULATOR, INTAKE PIPE
*195,*108
17118STAY, MANIFOLD
*195,*108
17135AINSULATOR, INTAKE MANIFOLD, NO.1
*195,*108
17136INSULATOR, INTAKE MANIFOLD, NO.2
*195,*108
17139STAY, MANIFOLD, NO.2
*195,*108
17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)
*195,(J),*108
(L),*108
17173GASKET, EXHAUST MANIFOLD TO HEAD
*108
ENGINE OIL COOLER-WITH,*195,*108
*195
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
2211
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
*108
*114=TOYOTA/28330/Y,*195
25586INSULATOR, MANIFOLD CONVERTER, NO.1
*195,*108
9011610058
main90116-10058
90119A0145
main90119-A0145
90119A0184
main90119-A0184
9017908228
main90179-08228
9017910165
main90179-10165
90182A0001
main90182-A0001
90182A0011
main90182-A0011
9162160822
main91621-60822
9164281025
main91642-81025
91651B0814
main91651-B0814
9167180835
main91671-80835
9167281025
main91672-81025
91673K0612
main91673-K0612
9211281022
main92112-81022
9415080801
main94150-80801
30 parts on this diagram · 4 diagrams in section
