V-BELT

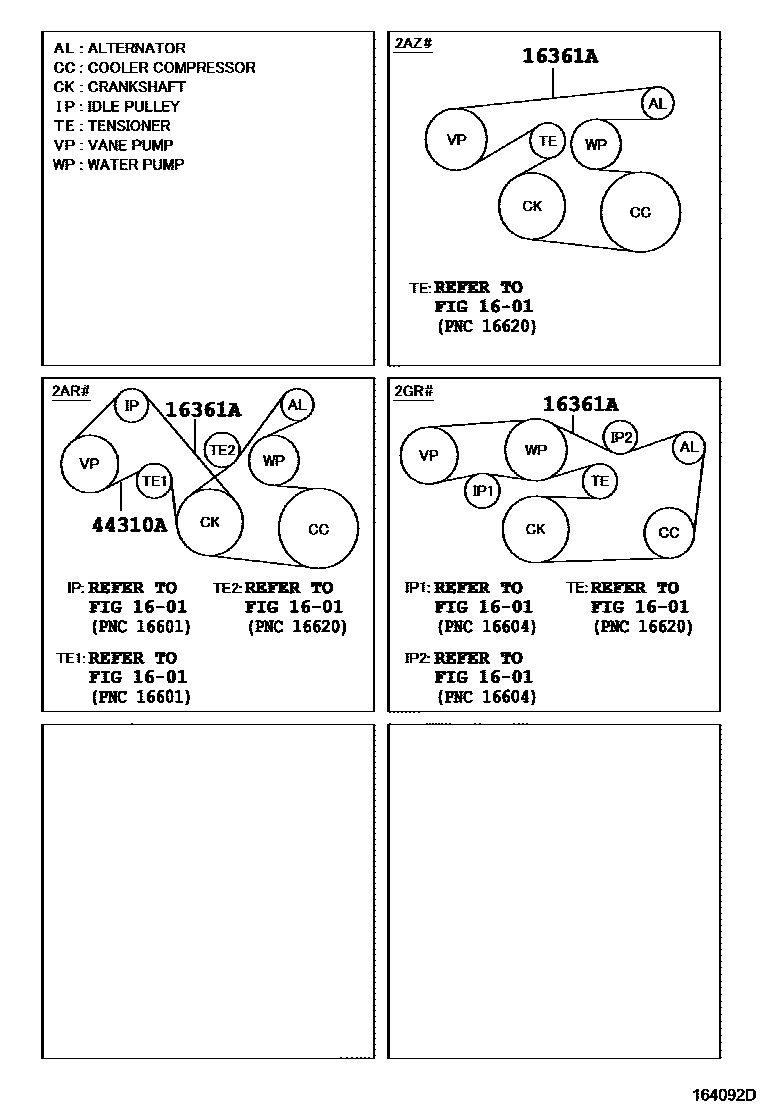

Parts diagram

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02652i200601-200901

main90916-02671i200901-201108

main99367-C2090i200601-200901

44310ABELT, V(FOR VANE PUMP)

main99363-K1200i200901-201108

L=1200

3 parts on this diagram · 1 diagram in section
