ENGINE OVERHAUL GASKET KIT

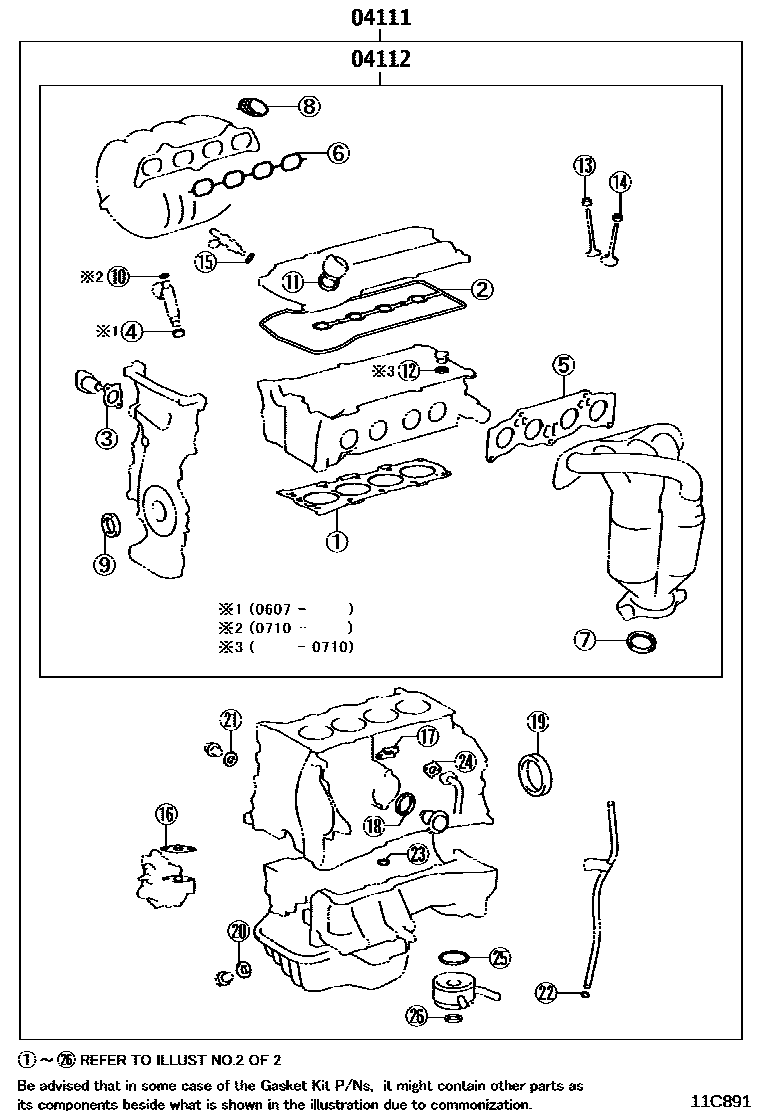

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-28660i200601-200607

main04111-28661i200607-200710

main04111-28822i200710-200901

main04111-31440i200601-200805

main04111-31441i200805-200811

main04111-31442i200811-200901

main04111-36080i200901-201108

main04111-28650i200601-200607

CALIFORNIA SPEC

main04111-28651i200607-200710

CALIFORNIA SPEC

main04111-28652i200710-200901

CALIFORNIA SPEC

04112GASKET KIT, ENGINE VALVE GRIND

main04112-28570i200601-200607

main04112-28571i200607-200710

main04112-28572i200710-200901

main04112-31270i200601-200805

main04112-31271i200805-200811

main04112-31272i200811-200901

main04112-36070i200901-201108

main04112-28560i200601-200607

CALIFORNIA SPEC

main04112-28561i200607-200710

CALIFORNIA SPEC

main04112-28562i200710-200901

CALIFORNIA SPEC

2 parts on this diagram · 8 diagrams in section
