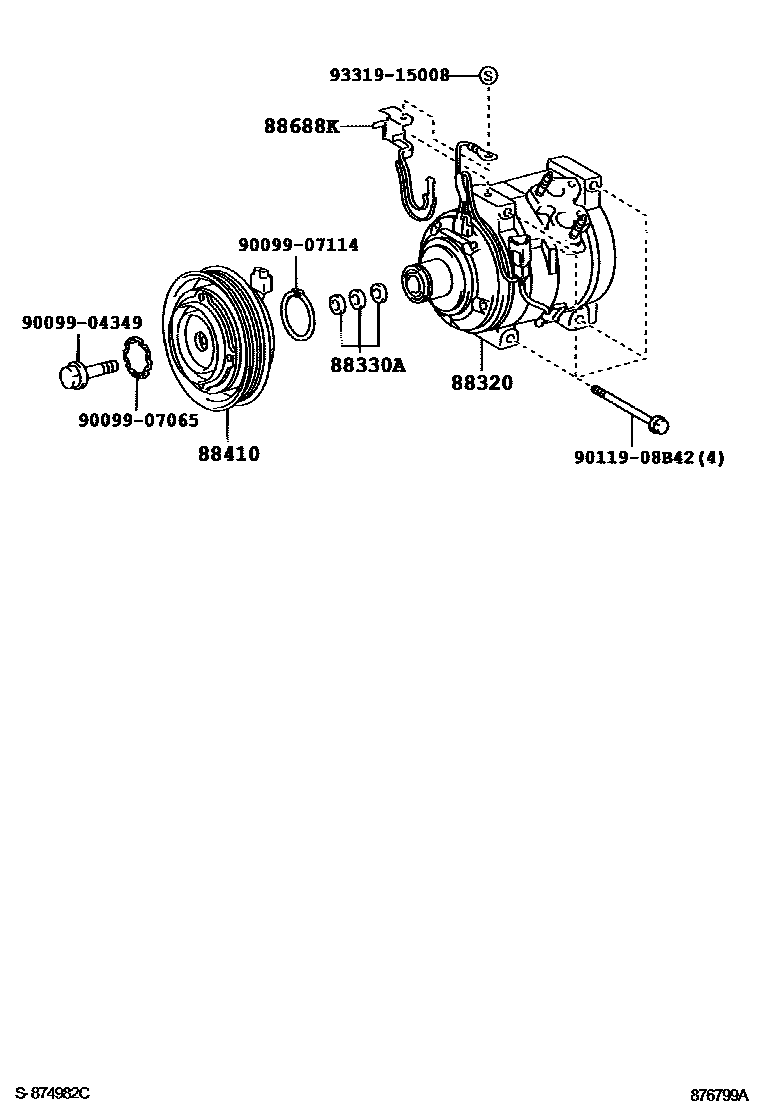

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88320COMPRESSOR ASSY, COOLER

main88320-33160iMCV3#..JPP200406

main88320-48080iACV30..JPP200406

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iACV30,MCV3#..JPP200107-200406

88410CLUTCH ASSY, MAGNET

main88410-33120iMCV3#..JPP200107-200406

main88410-33140iMCV3#..JPP200406

main88410-42040iACV30..JPP200107-200406

main88410-42080iACV30..JPP200406

88688KBRACKET, COOLER COMPRESSOR

main88688-03030iMCV3#..JPP200107-200310

main88688-48070iACV30..JPP200406

main88688-48110iMCV3#..JPP200310-200406

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9011908B42

main90119-08B42

9331915008

main93319-15008

9 parts on this diagram · 3 diagrams in section
