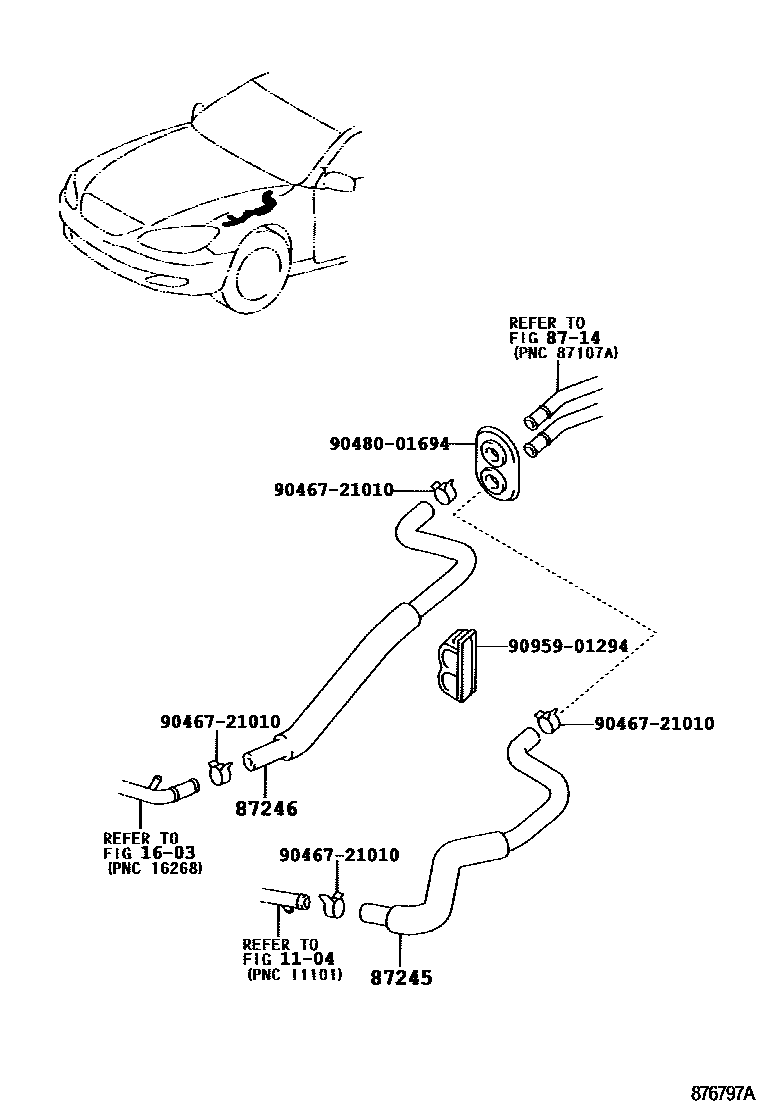

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87245-33450iACV30..JPP200107-200406

main87245-33470iMCV30..JPP200107-200301

main87245-33520iMCV3#..JPP200301-200406

87246HOSE, HEATER WATER, OUTLET

main87245-33400iMCV30..JPP200107-200301

main87245-33460iACV30..JPP200107-200406

main87245-33530iMCV3#..JPP200301-200406

9046721010

main90467-21010

9048001694

main90480-01694

9095901294

main90959-01294

8 parts on this diagram · 2 diagrams in section
