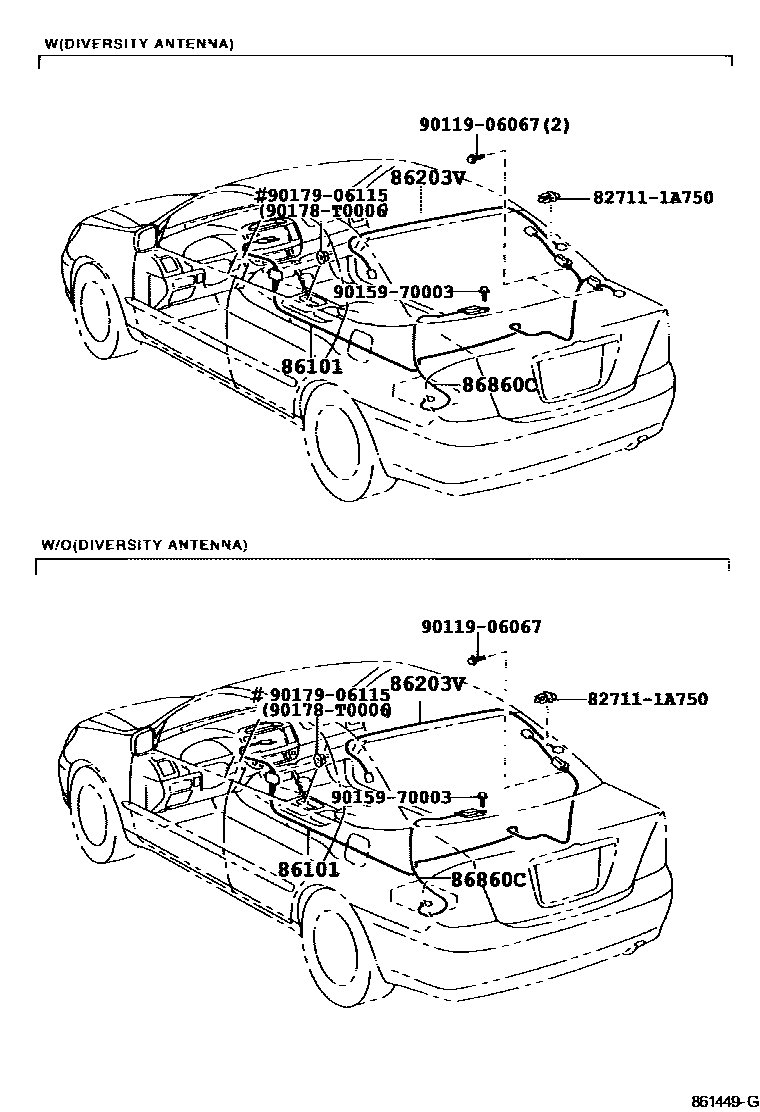

ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-AA130iACV30,MCV3#..JPP..(LE,SE)200107-200406

W/O(DIVERSITY ANTENNA)

main86101-AA140iACV30,MCV3#..JPP200107-200406

main86101-AA170iMCV3#..JPP..(SE,XLE)200307-200406

W(DIVERSITY ANTENNA & NAVIGATION SYSTEM)

86203VWIRE SUB ASSY, RADIO

main86203-AA030iACV30,MCV3#..JPP200107-200406

86860CANTENNA ASSY, NAVIGATION

main86860-33050iACV30..JPP..(SE,XLE)200107-200211

main86860-33080iMCV3#..JPP..(SE,XLE)200307-200406

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750

9011906067

main90119-06067

9015970003

main90159-70003

90178T0006

main90178-T0006

9017906115

main90179-06115

8 parts on this diagram · 1 diagram in section
