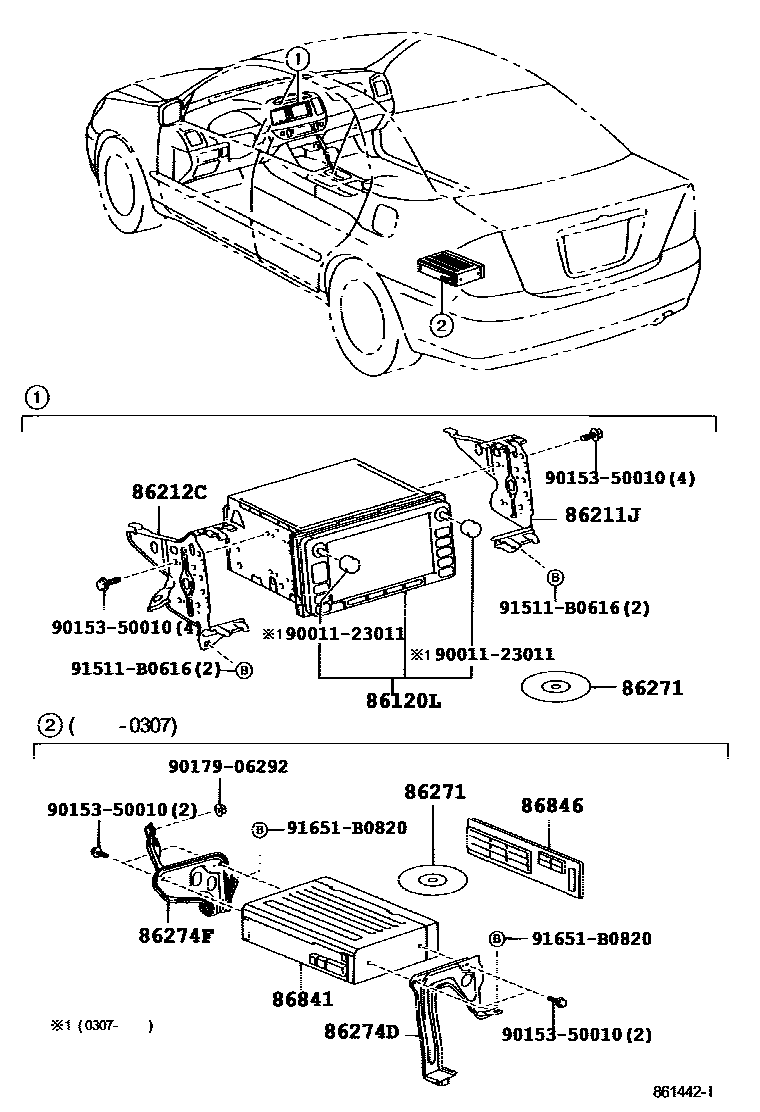

NAVIGATION & FRONT MONITOR DISPLAY

86120LRECEIVER ASSY, NAVIGATION

main86120-33400iACV30,MCV30..JPP..(SE,XLE)200107-200211

FUJITSU TEN

main86120-33401iMCV30..JPP..(SE,XLE)200211-200301

FUJITSU TEN

main86120-33600iMCV3#..JPP..(SE,XLE)200307-200406

DENSO,ID=E7003

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-33150iACV30..JPP..(SE,XLE)200107-200211

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-33150iACV30..JPP..(SE,XLE)200107-200211

86271DISC, DISC PLAYER

main86271-33030iACV30,MCV30..JPP..(SE,XLE)200107-200208

main86271-33031iMCV30..JPP..(SE,XLE)200208-200301

main86271-33040iMCV3#..JPP..(SE,XLE)200307-200403

main86271-33041iMCV3#..JPP..(SE,XLE)200403-200406

main86271-33043iMCV3#..JPP..(SE,XLE)200407-200411

main86271-33044iMCV3#..JPP..(SE,XLE)200411-200506

main86271-33045iMCV3#..JPP..(SE,XLE)200507

86274DBRACKET, DISC PLAYER

main86274-33190iACV30..JPP..(SE,XLE)200107-200208

86274FBRACKET, DISC PLAYER, NO.2

main86274-33200iACV30..JPP..(SE,XLE)200107-200208

86841COMPUTER, NAVIGATION

main86841-33060iACV30..JPP..(SE,XLE)200107-200208

86846PLATE, NAVIGATION COMPUTER

main86846-33020iACV30..JPP..(SE,XLE)200107-200208

9001123011

main90011-23011

9015350010

main90153-50010

9017906292

main90179-06292

91511B0616

main91511-B0616

91651B0820

main91651-B0820

13 parts on this diagram · 1 diagram in section
