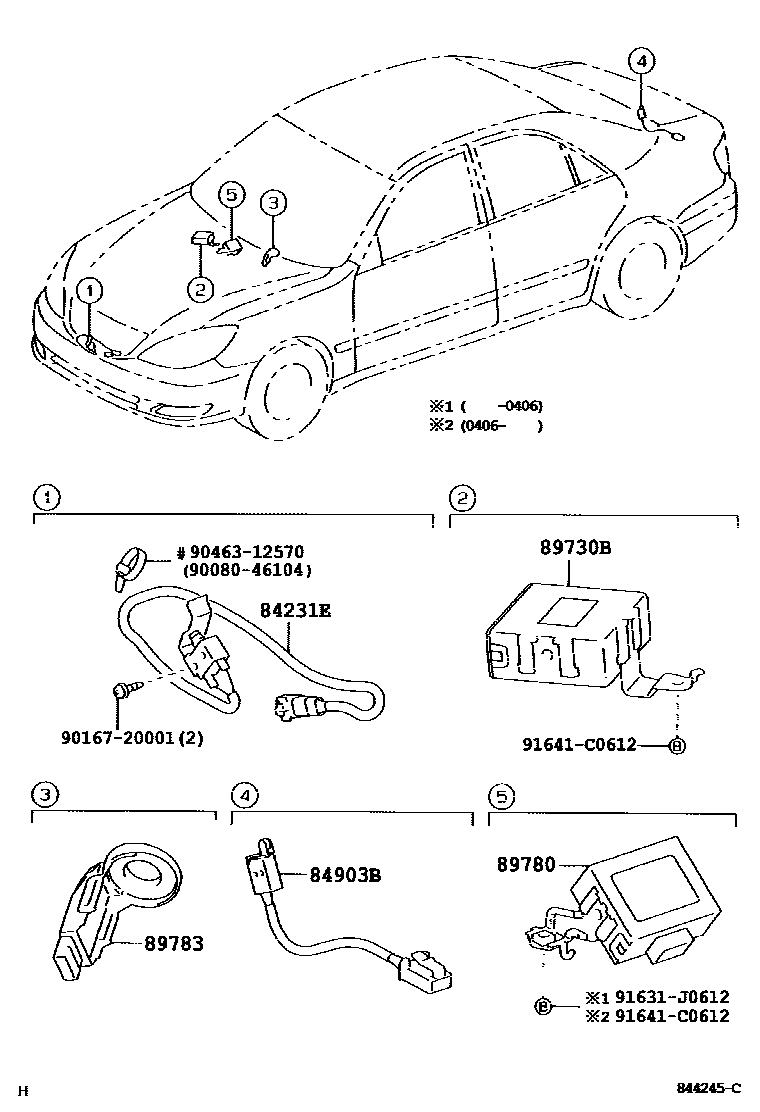

ANTI-THEFT DEVICE

84231ESWITCH, COURTESY(FOR SECURITY)

main84231-33090iACV30,MCV30..JPP..XLE200107-200406

84903BSWITCH SUB-ASSY, DOOR UNLOCK

main84903-33160iACV30,MCV30..JPP..XLE200107-200406

89730BCOMPUTER ASSY, THEFT WARNING

main89730-AA010iACV30,MCV30..JPP..XLE200107-200406

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-33100iMCV3#..JPP200301-200406

main89780-33130iACV30,MCV3#..JPP200406

89783AMPLIFIER, TRANSPONDER KEY

main89783-33070iACV30,MCV30..JPP200107-200301

main89783-33100iMCV30..JPP200301-200307

9008046104

main90080-46104

9016720001

main90167-20001

9046312570

main90463-12570

91631J0612

main91631-J0612

91641C0612

main91641-C0612

10 parts on this diagram · 1 diagram in section
