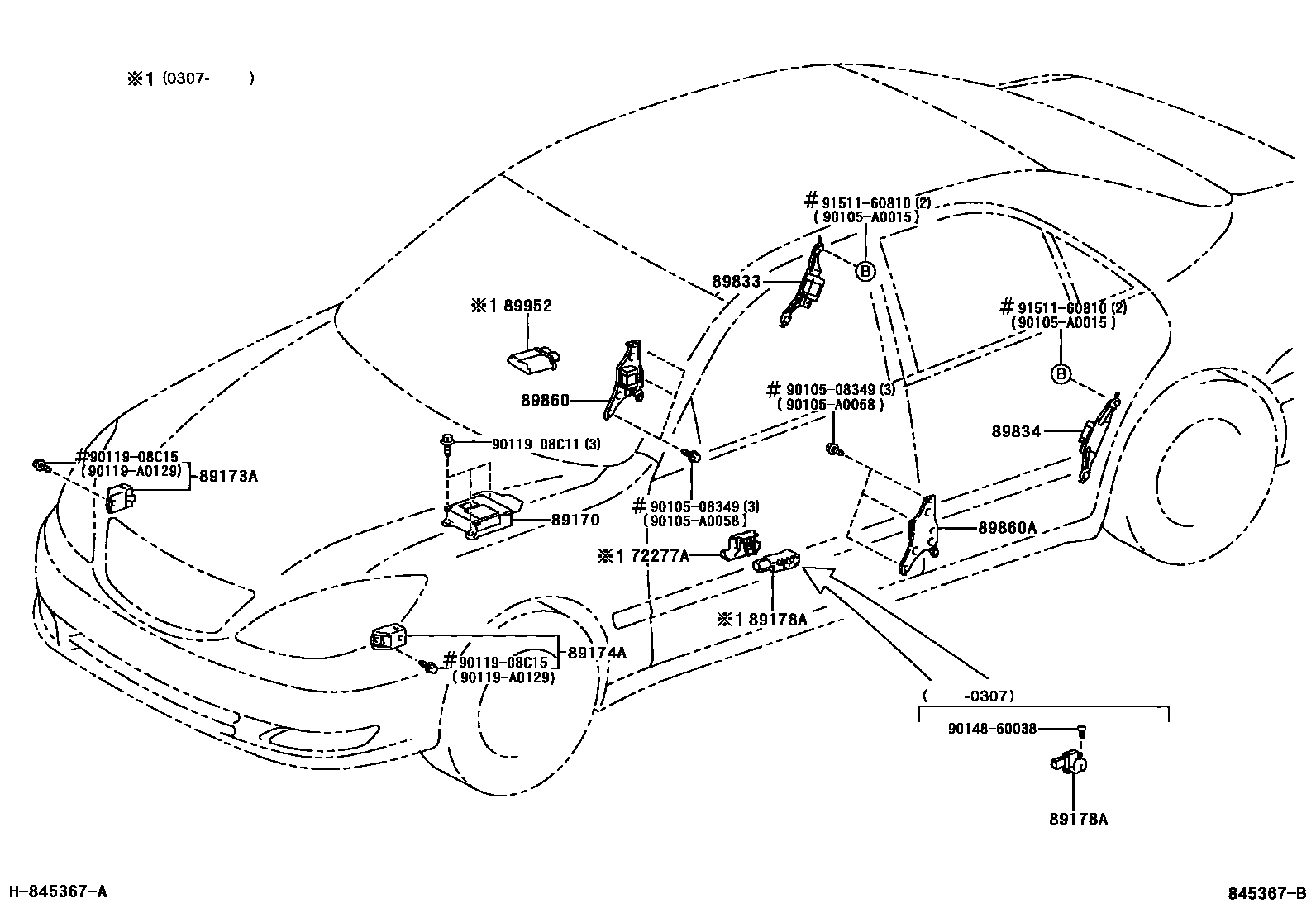

AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33010iACV30,MCV3#..JPP..(LE,SE)200307-200406

W(MANUAL SEAT)

main72277-33020iACV30,MCV3#..JPP200307-200308

W(POWER SEAT)

main72277-33021iACV30,MCV3#..JPP200308-200406

W(POWER SEAT)

89170SENSOR ASSY, AIRBAG

main89170-33230iACV30,MCV30..JPP200107-200307

main89170-33260iACV30,MCV30..JPP200107-200307

*80,CURTAIN SHIELD

main89170-33300iACV30,MCV3#..JPP200307-200406

main89170-33310iACV30,MCV3#..JPP200307-200406

*80,CURTAIN SHIELD

89173ASENSOR, AIRBAG, FRONT RH

main89173-09110iMCV30..JPP200107-200301

89174ASENSOR, AIRBAG, FRONT LH

main89173-09110iMCV30..JPP200107-200301

89178ASENSOR, SEAT POSITION AIRBAG

main89178-06020iMCV30..JPP200107-200301

main89178-33020iACV30,MCV3#..JPP..(LE,SE)200307-200406

W(MANUAL SEAT)

main89178-33030iACV30,MCV3#..JPP200307-200309

W(POWER SEAT)

main89178-33031iACV30,MCV3#..JPP200309-200406

W(POWER SEAT)

main89178-33040iACV30..JPP..5F;ACV30..JPP..LE..5FC200406

W(MANUAL SEAT)

main89178-33050iACV30,MCV3#..JPP200406

W(POWER SEAT)

89833SENSOR, AIRBAG, REAR RH

main89833-33010iACV30,MCV30..JPP200107-200307

main89833-33040iACV30,MCV3#..JPP200307-200406

89834SENSOR, AIRBAG, REAR LH

main89834-33010iACV30,MCV30..JPP200107-200307

main89834-33040iACV30,MCV3#..JPP200307-200406

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-33050iACV30,MCV30..JPP200107-200307

main89860-33100iACV30,MCV3#..JPP200307-200406

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-33050iACV30,MCV30..JPP200107-200307

main89830-33100iACV30,MCV3#..JPP200307-200406

89952COMPUTER, OCCUPANT DETECTION

main89952-33010iACV30,MCV3#..JPP200307-200406

main89952-33011iACV30,MCV30..JPP..XLE200406-200503

W(POWER SEAT)

main89952-35011iACV30,MCV3#..JPP200406-200503

W(MANUAL SEAT)

9010508349

main90105-08349

90105A0015

main90105-A0015

90105A0058

main90105-A0058

9011908C11

main90119-08C11

9011908C15

main90119-08C15

90119A0129

main90119-A0129

9014860038

main90148-60038

9151160810

main91511-60810

18 parts on this diagram · 1 diagram in section
