WIRELESS DOOR LOCK

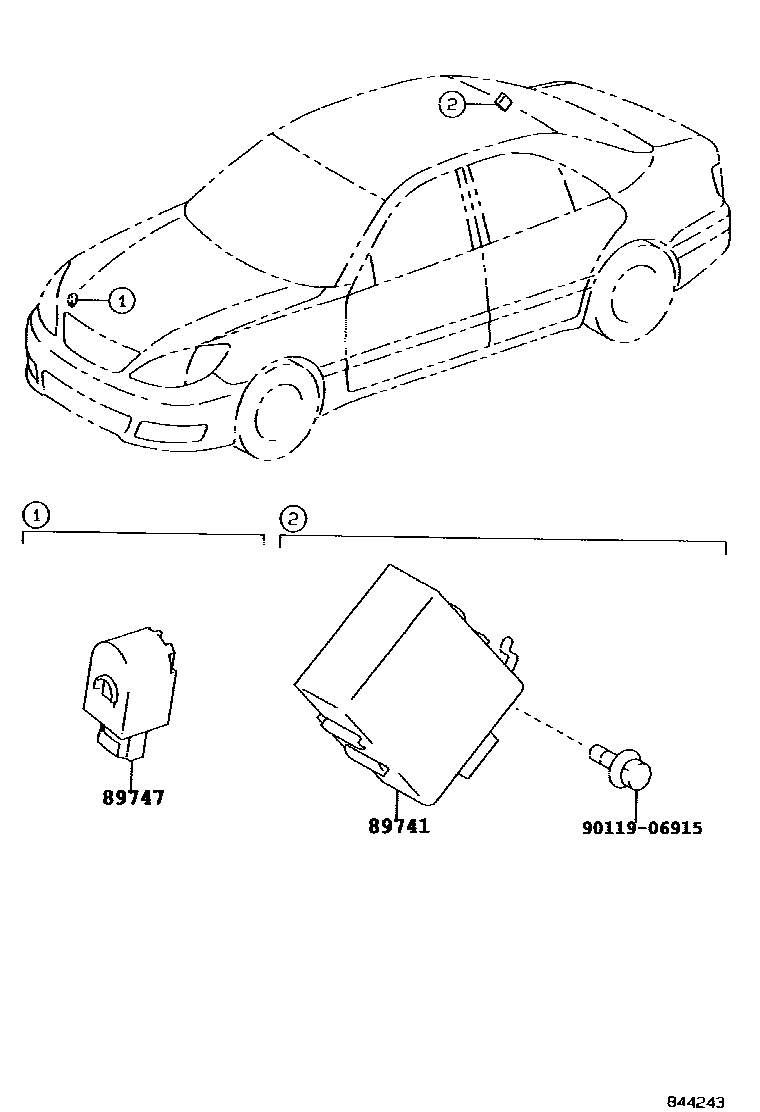

Parts diagram

89741RECEIVER, DOOR CONTROL

main89741-AA020i200107-200406

89747BUZZER, WIRELESS DOOR LOCK

main89747-48020i200307-200406

main89747-51010i200107-200307

9011906915

main90119-06915

3 parts on this diagram · 1 diagram in section
