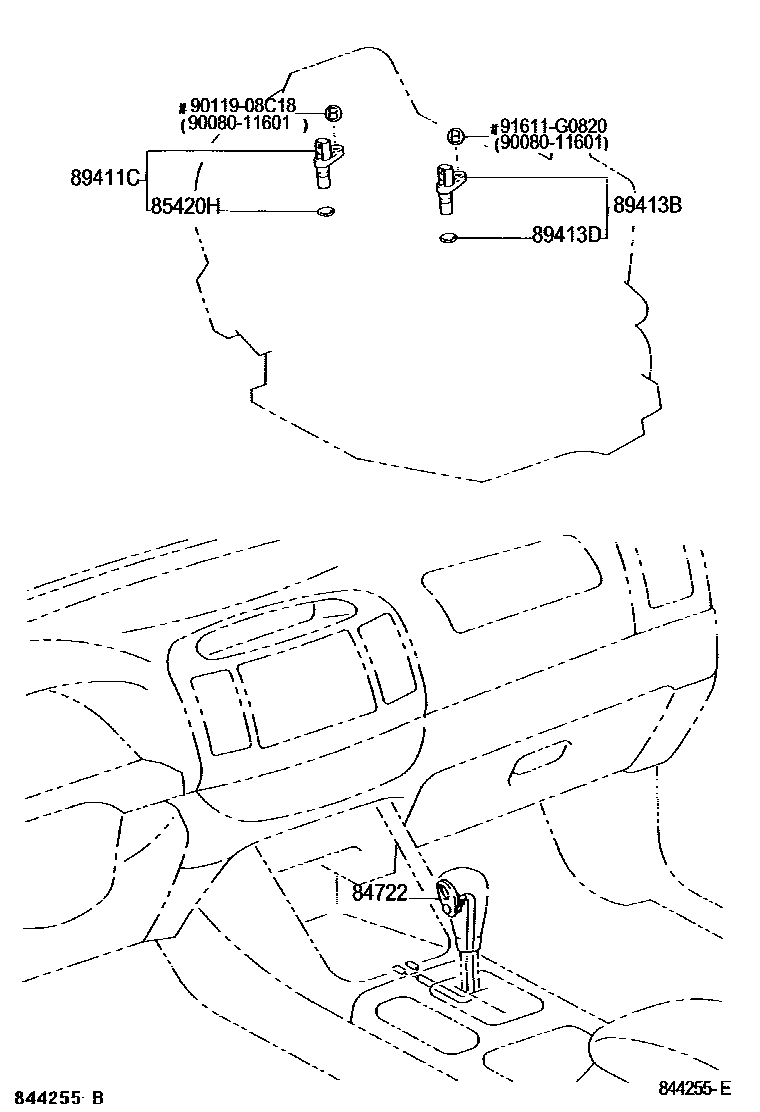

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1 0004 1

84722SWITCH, TRANSMISSION CONTROL

main84722-33100-B0iACV30,MCV30..JPP..(LE,XLE)..4FC200107-200406

DK.CHARCOAL,TRIM1#

main84722-33100-B1iACV30,MCV30..JPP..SE..4FC200107-200406

DK.GRAY,TRIM1#,4#

main84722-33100-E0iACV30,MCV30..JPP..(LE,XLE)..4FC200107-200406

SANDAL WOOD,TRIM4#

main84722-33140iMCV3#..JPP200301-200406

85420HRING, O(FOR SPEED SENSOR)

main90301-11008iMCV30..JPP200107-200112

89411CSENSOR, SPEED

main89411-33010iMCV30..JPP200107-200112

TOYOTA

main89413-08020iACV30..JPP..4FC200212-200406

AISIN,(L)

main89413-24010iACV30..JPP..4FC200107-200406

AISIN,(J)

main89413-48010iMCV3#..JPP200301-200406

89413BSENSOR, TRANSMISSION REVOLUTION

main89411-33010iMCV30..JPP200107-200112

TOYOTA

main89413-08020iACV30..JPP..4FC200212-200406

AISIN,(L)

main89413-24010iMCV30..JPP..5FC;ACV30,MCV31..JPP..ATM200107-200406

AISIN,(J)

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008iMCV30..JPP200107-200112

9008011601

main90080-11601

9011908C18

main90119-08C18

91611G0820

main91611-G0820

8 parts on this diagram · 4 diagrams in section
