SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1ENGINE ROOM 0006 1COWL 0007 1INSTRUMENT PANEL 0008 1IGNITION & COMBINATION SWITCH0009 1IGNITION & COMBINATION SWITCH0010 1DOOR,ROOF,FLOOR,SEAT & LUGGAG

83181GSENSOR, SPEEDOMETER

main83181-12030iACV30..JPP..5F200107-200406

main83181-12040iACV30..JPP..4FC200107-200406

83181HRING, O (FOR SPEEDOMETER SENSOR)

main96711-24018iACV30..JPP200107-200406

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iACV30,MCV3#..JPP200107-200406

DENSO

main83530-60020iACV30,MCV3#..JPP200107-200406

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iACV30..JPP..5F200107-200406

84540SWITCH ASSY, NEUTRAL START

main84540-06010iMCV30..JPP200107-200307

(L)

main84540-0E010iACV30..JPP..4FC200307-200406

(L)

main84540-32110iMCV30..JPP200107-200307

(J)

main84540-32110iMCV30..JPP200301-200307

main84540-48010iACV30..JPP..4FC200307-200406

(J)

main84540-48010iACV30..JPP..4FC200310-200406

89465SENSOR, OXYGEN

main89465-33220iACV30..JPP200107-200307

main89465-33250iMCV30..JPP200107-200406

main89465-33320iACV30..JPP..4FC200212-200404

CALIFORNIA SPEC

main89465-33321iACV30..JPP..5FC200405-200406

CALIFORNIA SPEC

main89465-33380iMCV31..JPP200307-200406

main89465-33410iACV30..JPP200307-200406

89465ASENSOR, OXYGEN NO.2

main89465-33260iMCV30..JPP200107-200406

main89465-33330iACV30..JPP..4FC200212-200404

main89465-33331iACV30..JPP..4FC200405-200406

main89465-33370iMCV31..JPP200307-200406

89467BSENSOR, AIR FUEL RATIO

main89467-33040iACV30..JPP200107-200307

main89467-33050iMCV30..JPP200107-200307

FRONT

main89467-33060iMCV30..JPP200107-200406

REAR

main89467-33080iACV30..JPP..5F200307-200406

main89467-33080iACV30..JPP..4FC200212-200406

CALIFORNIA SPEC

main89467-33100iMCV31..JPP200406

REAR

main89467-33100iMCV31..JPP200307-200406

FRONT

main89467-33110iMCV31..JPP200406

FRONT

main89467-33110iMCV31..JPP200307-200406

REAR

main89467-33120iMCV30..JPP200307-200406

FRONT

89615SENSOR, KNOCK CONTROL

main89615-12090iMCV30..JPP200107-200406

main89615-20090iMCV31..JPP200212-200406

main89615-32030iACV30..JPP200107-200212

W/O(PAINTED=ORANGE)

main89615-44010iACV30..JPP200107-200212

W(PAINTED=ORANGE)

8761628010CLAMP, COOLING UNIT CASE

main87616-28010

9008011683

main90080-11683

9012608039

main90126-08039

90126A0008

main90126-A0008

9017908153

main90179-08153

9043018008

main90430-18008

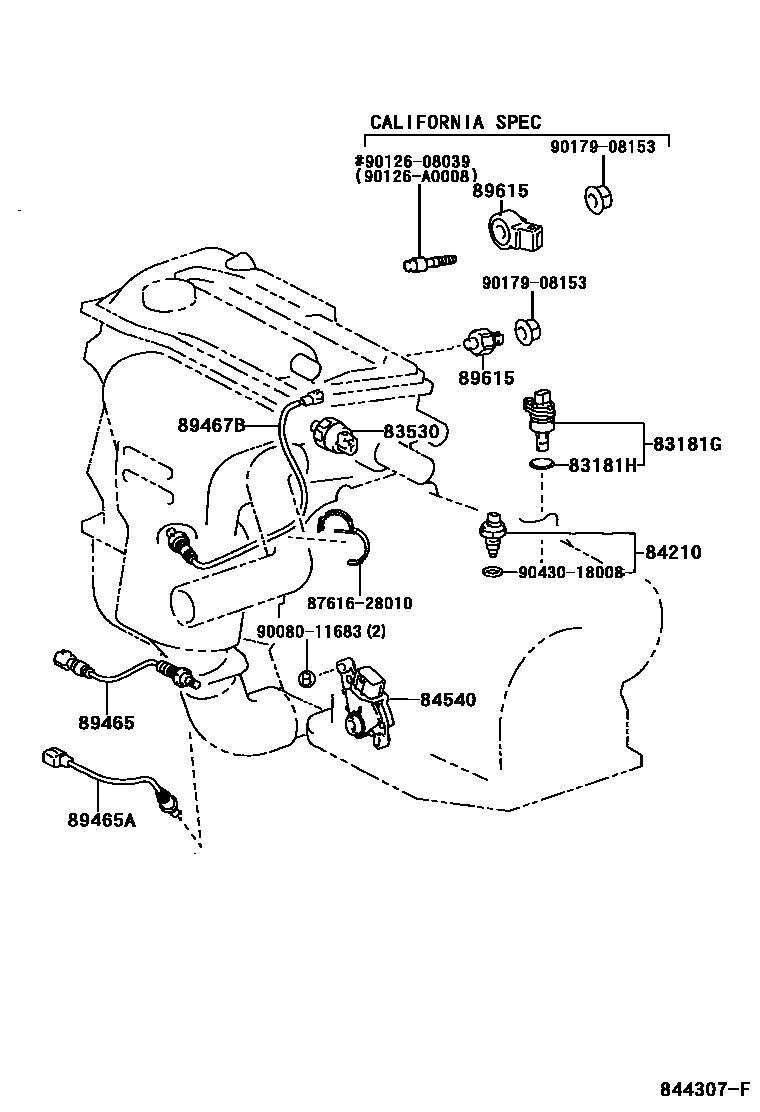

15 parts on this diagram · 10 diagrams in section
