METER

0001 1 0002 1

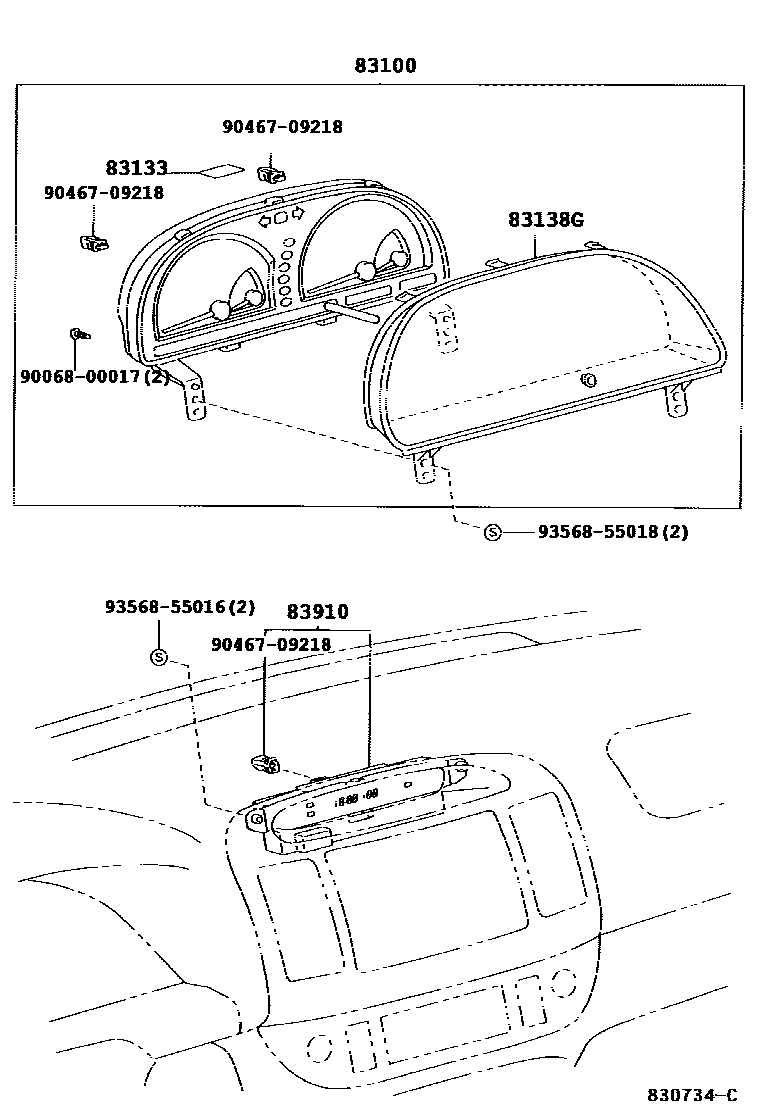

83100METER ASSY, COMBINATION

main83800-06630iACV30..JPP..(LE,XLE)..4FC200107-200307

W(ABS)

main83800-06632iACV30..JPP..(LE,XLE)..4FC200307-200406

main83800-06640iACV30..JPP..LE..4FC200107-200307

main83800-06650iMCV30..JPP..(LE,XLE)200107-200301

main83800-06651iMCV30..JPP..(LE,XLE)200301-200307

main83800-06653iMCV30..JPP200307-200406

main83800-06680iACV30..JPP..SE..4FC200107-200307

W(ABS)

main83800-06682iACV30..JPP..SE..4FC200307-200406

main83800-06690iACV30..JPP..SE..4FC200107-200307

main83800-06700iMCV30..JPP..SE200107-200301

main83800-06701iMCV30..JPP..SE200301-200307

main83800-06A01iMCV31..JPP200307-200406

main83800-06A11iMCV31..JPP200307-200406

CANADA SPEC

main83800-06B50iACV30..JPP..LE..5F200406

main83800-06B60iACV30..JPP..LE..5F200406

CANADA SPEC

main83800-06B70iACV30..JPP..SE..5F200406

main83800-06B90iACV30..JPP..SE..5F200406

CANADA SPEC

main83800-06C10iACV30..JPP..(LE,XLE)..5FC200406

main83800-06C20iMCV30..JPP200406

main83800-06D50iMCV31..JPP200406

main83800-06D60iACV30..JPP..SE..5FC200406

main83800-0W180iACV30..JPP..LE..5F200107-200307

CANADA SPEC & W(ABS)

main83800-0W182iACV30..JPP..LE..5F200307-200406

CANADA SPEC

main83800-0W190iACV30..JPP..LE..5F200107-200307

CANADA SPEC

main83800-0W200iACV30..JPP..(LE,XLE)..4FC200107-200307

CANADA SPEC & W(ABS)

main83800-0W202iACV30..JPP..(LE,XLE)..4FC200307-200406

CANADA SPEC

main83800-0W210iACV30..JPP..LE..4FC200107-200307

CANADA SPEC

main83800-0W220iMCV30..JPP..(LE,XLE)200107-200301

CANADA SPEC

main83800-0W221iMCV30..JPP..(LE,XLE)200301-200307

CANADA SPEC

main83800-0W222iMCV30..JPP200307-200406

CANADA SPEC

main83800-0W230iMCV30..JPP..SE200107-200301

CANADA SPEC

main83800-0W231iMCV30..JPP..SE200301-200307

CANADA SPEC

main83800-0W240iACV30..JPP..LE..5F200107-200307

W(ABS)

main83800-0W242iACV30..JPP..LE..5F200307-200406

main83800-0W250iACV30..JPP..LE..5F200107-200307

main83800-0W260iACV30..JPP..SE..5F200107-200307

W(ABS)

main83800-0W262iACV30..JPP..SE..5F200307-200406

main83800-0W270iACV30..JPP..SE..5F200107-200307

main83800-0W290iACV30..JPP..SE..5F200208-200307

CANADA SPEC & W(ABS)

main83800-0W292iACV30..JPP..SE..5F200307-200406

CANADA SPEC

main83800-0W300iACV30..JPP..SE..5F200208-200307

CANADA SPEC

main83800-0W310iACV30..JPP..SE..4FC200208-200307

CANADA SPEC & W(ABS)

main83800-0W312iACV30..JPP..SE..4FC200307-200406

CANADA SPEC

main83800-0W320iACV30..JPP..SE..4FC200208-200307

CANADA SPEC

83133PLATE, COMBINATION METER, NO.1

main83811-0W240iACV30,MCV3#..JPP200406

83138GGLASS, COMBINATION METER

main83852-06B50iACV30,MCV3#..JPP200406

main83852-0W260iACV30,MCV30..JPP200107-200301

83910CLOCK ASSY

main83910-33060iACV30,MCV30..JPP..LE200107-200307

main83910-33070iACV30,MCV30..JPP..XLE200107-200307

main83910-33100iMCV30..JPP..SE;ACV30..JPP..SE..5F200107-200307

main83910-33110iACV30,MCV31..JPP..SE..(5F,5FC)200307-200406

main83910-33120iACV30..JPP..LE..5F;ACV30,MCV30..JPP..ATM..(LE,SE)200307-200406

main83910-33130iACV30,MCV30..JPP..XLE200307-200406

9006800017

main90068-00017

9046709218

main90467-09218

9356855016

main93568-55016

9356855018

main93568-55018

8 parts on this diagram · 2 diagrams in section
