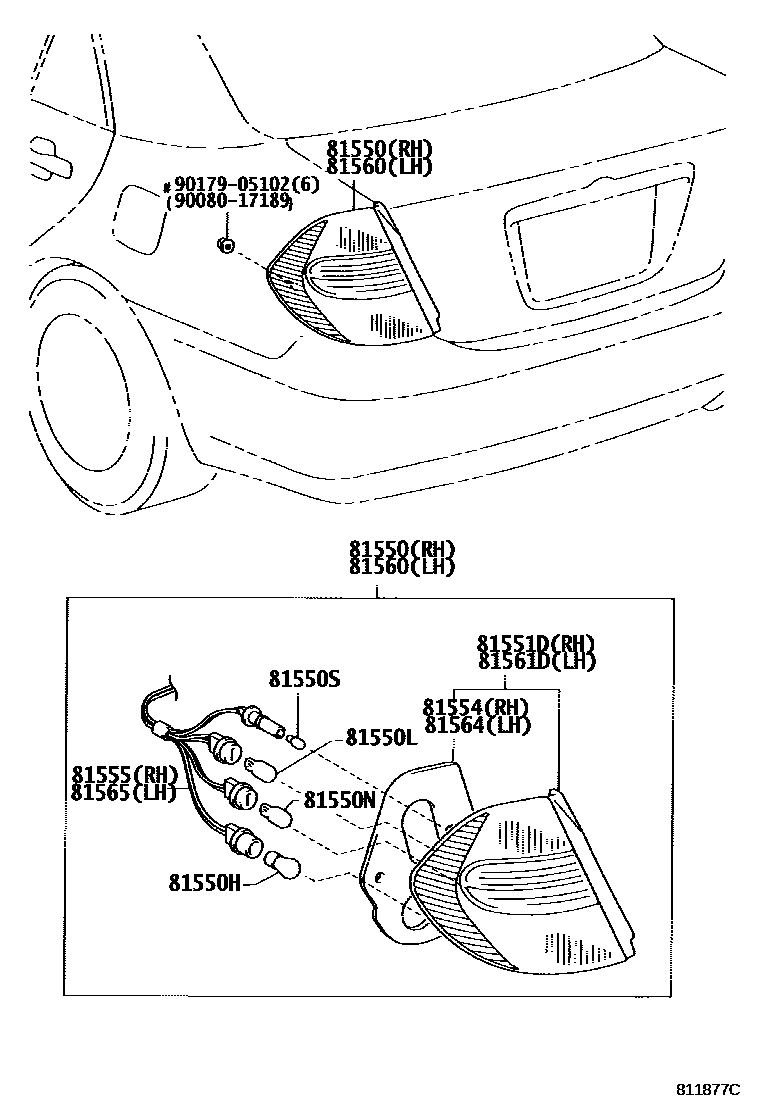

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-AA050iACV30,MCV30..JPP200107-200301

81550HBULB, TAIL & STOP LAMP

main90084-81001×2iACV30,MCV3#..JPP200107-200406

12V 27/8W

81550LBULB, REAR TURN SIGNAL LAMP

main90981-11059×2iACV30,MCV3#..JPP200107-200406

12V 16W

main90981-15021×2iACV30,MCV3#..JPP200406-200601

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059×2iACV30,MCV3#..JPP200107-200406

12V 16W

81550SBULB, REAR SIDE MARKER LAMP

main90080-81073×2iACV30,MCV3#..JPP200107-200406

12V 3.8W

main90981-13044×2iACV30,MCV3#..JPP200406-200601

12V 21/5W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-33410iACV30,MCV30..JPP..(LE,XLE)200406

main81551-33420iACV30,MCV31..JPP..SE200406

main81551-AA050iACV30,MCV30..JPP200107-200301

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-33370iACV30,MCV3#..JPP200406

main81554-AA050iACV30,MCV3#..JPP200301-200406

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-33370iACV30,MCV3#..JPP200406

main81555-AA050iACV30,MCV3#..JPP200107-200406

81560LAMP ASSY, REAR COMBINATION, LH

main81560-AA050iACV30,MCV30..JPP200107-200301

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-33380iACV30,MCV30..JPP..(LE,XLE)200406

main81561-33390iACV30,MCV31..JPP..SE200406

main81561-AA050iACV30,MCV3#..JPP200301-200406

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-AA050iACV30,MCV30..JPP200107-200301

main81564-33340iACV30,MCV3#..JPP200406-200601

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-33370iACV30,MCV3#..JPP200406

main81555-AA050iACV30,MCV30..JPP200107-200301

9008017189

main90080-17189

9017905102

main90179-05102

14 parts on this diagram · 2 diagrams in section
