EPC Data

FRONT SEAT & SEAT TRACK

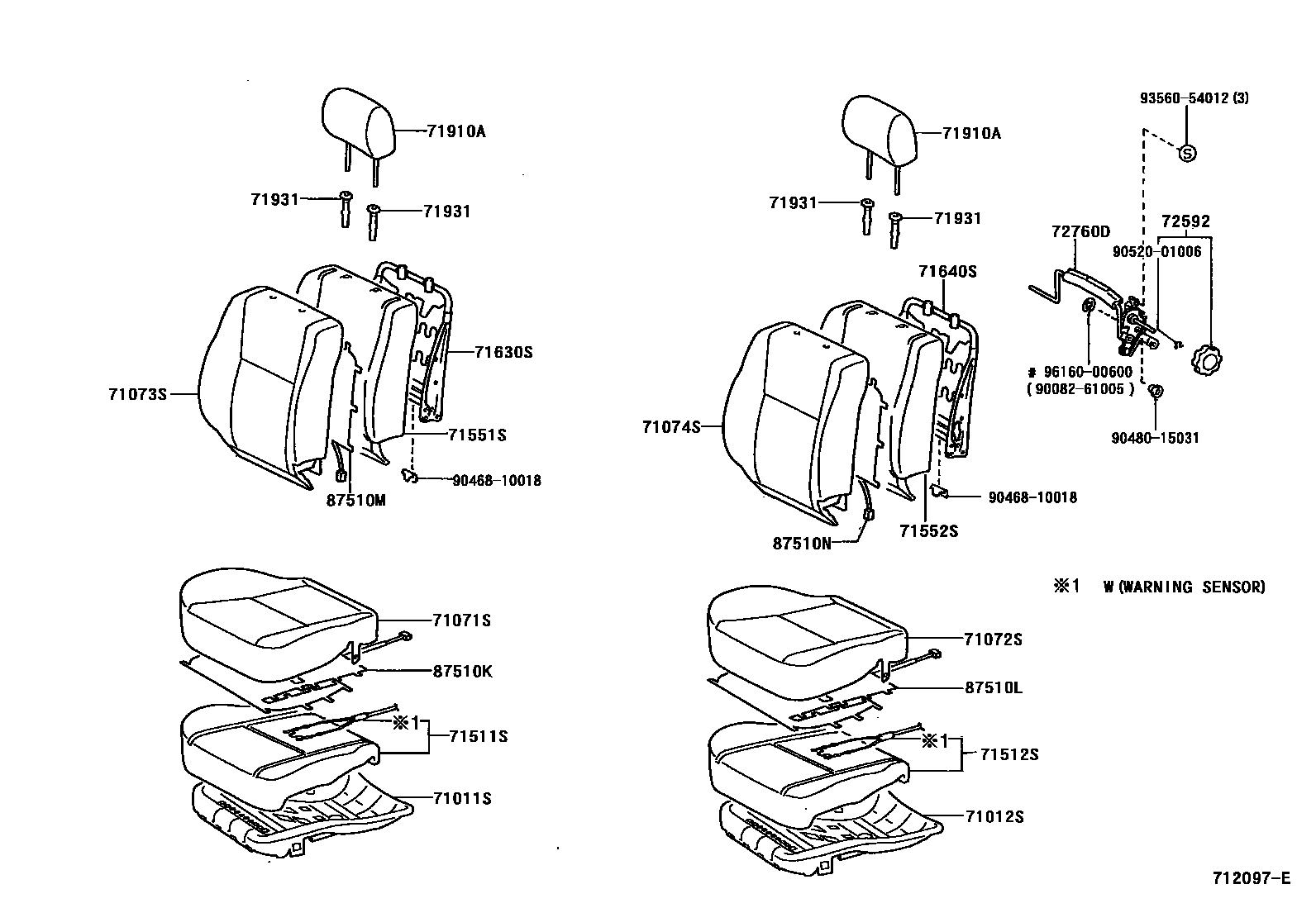

Parts diagram
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
main71011-33020i200107-200307
main71110-33010i200307-200406
main71110-33011i200406
main71110-33030i200406-200503
W(POWER SEAT)
main71110-33031i200503
W(POWER SEAT)
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
main71011-33020i200107-200307
main71120-33010i200307-200406
main71120-33030i200406
W(POWER SEAT)
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-33390-B0i200307-200406
STONE-COMFORT SEAT I,TRIM1#
main71071-33390-E0i200307-200406
FAWN-COMFORT SEAT IN,TRIM4#
main71071-33790-B1i200107-200210
STONE-COMFORT SEAT I,TRIM1#
main71071-33790-E1i200107-200210
FAWN-COMFORT SEAT IN,TRIM4#
main71071-33791-B1i200210-200307
STONE-COMFORT SEAT I,TRIM1#
main71071-33791-E1i200210-200307
FAWN-COMFORT SEAT IN,TRIM4#
main71071-33800-B1i200107-200210
W(SRS SIDE AIR BAG),STONE-COMFORT SEAT I,TRIM1#
main71071-33800-E1i200107-200210
W(SRS SIDE AIR BAG),FAWN-COMFORT SEAT IN,TRIM4#
main71071-33801-B1i200210-200307
W(SRS SIDE AIR BAG),STONE,TRIM1#
main71071-33801-E1i200210-200307
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71071-33811-B1i200210-200307
W(PASSENGER POWER SEAT),STONE-COMFORT SEAT I,TRIM1#
main71071-33811-E1i200301-200307
W(POWER SEAT),FAWN-COMFORT SEAT IN,TRIM4#
main71071-33830-B0i200307-200406
W(SEAT BACK POCKET),STONE-COMFORT SEAT I,TRIM1#
main71071-33830-E0i200307-200406
W(SEAT BACK POCKET),FAWN-COMFORT SEAT IN,TRIM4#
main71071-33840-B2i200107-200307
LEATHER SEAT,STONE,TRIM1#
main71071-33840-E1i200107-200307
LEATHER SEAT,FAWN,TRIM4#
main71071-33860-B2i200107-200307
DK. GRAY SPORT INSER,TRIM1#
main71071-33860-E1i200107-200307
FAWN SPORT INSERT,TRIM4#
main71071-33870-B2i200107-200307
W(SRS SIDE AIR BAG),DK. GRAY SPORT INSER,TRIM1#
main71071-33870-E1i200107-200307
W(SRS SIDE AIR BAG),FAWN SPORT INSERT,TRIM4#
main71071-33880-B1i200107-200307
LEATHER SEAT,DK. GRAY,TRIM1#
main71071-33880-E1i200107-200307
LEATHER SEAT,FAWN,TRIM4#
main71071-33890-B1i200107-200307
LEATHER SEAT & W(SRS SIDE AIR BAG),DK. GRAY,TRIM1#
main71071-33890-E1i200107-200307
LEATHER SEAT & W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71071-33A30-E0i200307-200403
20TH ANNIVERSARY(USA),FAWN,TRIM4#
main71071-33A90-B0i200307-200406
DK. GRAY SPORT INSERT,TRIM1#
main71071-33A90-E0i200307-200406
FAWN SPORT INSERT,TRIM4#
main71071-33B50-B2i200406
STONE,TRIM9#
main71071-33B50-E2i200406
FAWN,TRIM4#
main71071-33B60-B1i200406
LEATHER SEAT & W(POWER SEAT),STONE,TRIM9#
main71071-33B60-E0i200406
LEATHER SEAT & W(POWER SEAT),FAWN,TRIM4#
main71071-33B70-B0i200409
LEATHER SEAT,DK.GRAY,TRIM9#
main71071-33B70-E0i200409
LEATHER SEAT,FAWN,TRIM4#
main71071-33C10-B1i200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),STONE,TRIM9#
main71071-33C10-E0i200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),FAWN,TRIM4#
main71071-33C30-B0i200409
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),DK.GRAY,TRIM9#
main71071-33C30-E0i200409
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),FAWN,TRIM4#
main71071-33C80-B1i200406
W(POWER SEAT),STONE,TRIM9#
main71071-33C80-E1i200406
W(POWER SEAT),FAWN,TRIM4#
main71071-3T050-B1i200307-200406
LEATHER SEAT & W(POWER SEAT),STONE,TRIM1#
main71071-3T050-E1i200307-200406
LEATHER SEAT & W(POWER SEAT),FAWN,TRIM4#
main71071-3T080-B1i200107-200307
LEATHER SEAT & W(SEAT HEATER & SRS SIDE AIR BAG),DK. GRAY,TRIM1#
main71071-3T080-E1i200107-200307
LEATHER SEAT & W(SEAT HEATER & SRS SIDE AIR BAG),FAWN,TRIM4#
main71071-3T090-B1i200107-200307
LEATHER SEAT & W(SEAT HEATER),DK. GRAY,TRIM1#
main71071-3T090-E1i200107-200307
LEATHER SEAT & W(SEAT HEATER),FAWN,TRIM4#
main71071-3T100-B1i200307-200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),STONE,TRIM1#
main71071-3T100-E1i200307-200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),FAWN,TRIM4#
main71071-3T110-B1i200307-200406
LEATHER SEAT,DK. GRAY,TRIM1#
main71071-3T110-E1i200307-200406
LEATHER SEAT,FAWN,TRIM4#
main71071-3T120-B1i200307-200406
LEATHER SEAT & W(SEAT HEATER),DK. GRAY,TRIM1#
main71071-3T120-E1i200307-200406
LEATHER SEAT & W(SEAT HEATER),FAWN,TRIM4#
main71071-3T190-B0i200107-200307
LEATHER SEAT & W(SEAT HEATER),STONE,TRIM1#
main71071-3T190-E0i200107-200307
LEATHER SEAT & W(SEAT HEATER),FAWN,TRIM4#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71071-33840-B2i200107-200307
LEATHER SEAT,STONE,TRIM1#
main71071-33840-E1i200107-200307
LEATHER SEAT,FAWN,TRIM4#
main71071-3T190-B0i200107-200307
LEATHER SEAT & W(SRS SIDE AIR BAG),STONE,TRIM1#
main71071-3T190-E0i200107-200307
LEATHER SEAT & W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71072-33790-B1i200107-200210
STONE-COMFORT SEAT I,TRIM1#
main71072-33790-E1i200107-200210
FAWN-COMFORT SEAT IN,TRIM4#
main71072-33791-B1i200210-200307
STONE-COMFORT SEAT I,TRIM1#
main71072-33791-E1i200210-200307
FAWN-COMFORT SEAT IN,TRIM4#
main71072-33800-B1i200107-200210
W(SRS SIDE AIR BAG),STONE-COMFORT SEAT I,TRIM1#
main71072-33800-E1i200107-200210
W(SRS SIDE AIR BAG),FAWN-COMFORT SEAT IN,TRIM4#
main71072-33801-B1i200210-200307
W(SRS SIDE AIR BAG),STONE,TRIM1#
main71072-33801-E1i200210-200307
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71072-33810-B0i200107-200210
W(POWER SEAT),STONE-COMFORT SEAT I,TRIM1#
main71072-33810-E0i200107-200210
W(POWER SEAT),FAWN-COMFORT SEAT IN,TRIM4#
main71072-33811-B0i200210-200307
W(POWER SEAT),STONE-COMFORT SEAT I,TRIM1#
main71072-33811-E0i200210-200307
W(POWER SEAT),FAWN-COMFORT SEAT IN,TRIM4#
main71072-33820-B2i200107-200307
DK. GRAY SPORT INSER,TRIM1#
main71072-33820-E1i200107-200307
FAWN SPORT INSERT,TRIM4#
main71072-33830-B2i200107-200307
W(SRS SIDE AIR BAG),DK. GRAY SPORT INSER,TRIM1#
main71072-33830-E1i200107-200307
W(SRS SIDE AIR BAG),FAWN SPORT INSERT,TRIM4#
main71072-33840-B2i200107-200307
W(POWER SEAT & SRS SIDE AIR BAG),DK. GRAY SPORT INSER,TRIM1#
main71072-33840-E1i200107-200307
W(POWER SEAT & SRS SIDE AIR BAG),FAWN SPORT INSERT,TRIM4#
main71072-33850-B1i200107-200307
LEATHER SEAT,DK. GRAY,TRIM1#
main71072-33850-E1i200107-200307
LEATHER SEAT,FAWN,TRIM4#
main71072-33860-B0i200307-200406
STONE-COMFORT SEAT I,TRIM1#
main71072-33860-E0i200307-200406
FAWN-COMFORT SEAT IN,TRIM4#
main71072-33890-B0i200307-200406
W(POWER SEAT),STONE-COMFORT SEAT I,TRIM1#
main71072-33890-E0i200307-200406
W(POWER SEAT),FAWN-COMFORT SEAT IN,TRIM4#
main71072-33A10-B1i200307-200406
LEATHER SEAT & W(POWER SEAT),STONE,TRIM1#
main71072-33A10-E1i200307-200406
LEATHER SEAT & W(POWER SEAT),FAWN,TRIM4#
main71072-33A20-B1i200307-200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),STONE,TRIM1#
main71072-33A20-E1i200307-200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),FAWN,TRIM4#
main71072-33A60-E0i200307-200403
20TH ANNIVERSARY(USA),FAWN,TRIM4#
main71072-33A70-E0i200307-200403
20TH ANIVERSARY(USA) & W(POWER SEAT),FAWN,TRIM4#
main71072-33B30-B0i200406
DK. GRAY SPORT INSERT,TRIM9#
main71072-33B30-E0i200406
FAWN SPORT INSERT,TRIM4#
main71072-33B40-B0i200307-200406
W(SRS SIDE AIR BAG),DK. GRAY SPORT INSERT,TRIM1#
main71072-33B40-E0i200406
W(POWER SEAT),FAWN SPORT INSERT,TRIM4#
main71072-33C10-B1i200406
STONE,TRIM9#
main71072-33C10-E1i200406
FAWN,TRIM4#
main71072-33C20-B1i200406
LEATHER SEAT & W(POWER SEAT),STONE,TRIM9#
main71072-33C20-E0i200406
LEATHER SEAT & W(POWER SEAT),FAWN,TRIM4#
main71072-33C30-B0i200409
LEATHER SEAT & W(POWER SEAT),DK.GRAY,TRIM9#
main71072-33C30-E0i200409
LEATHER SEAT & W(POWER SEAT),FAWN,TRIM4#
main71072-33C90-B1i200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),STONE,TRIM9#
main71072-33C90-E0i200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),FAWN,TRIM4#
main71072-33D10-B0i200409
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),DK.GRAY,TRIM9#
main71072-33D10-E0i200409
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),FAWN,TRIM4#
main71072-33D40-B1i200406
W(POWER SEAT),STONE,TRIM9#
main71072-33D40-E1i200406
W(POWER SEAT),FAWN,TRIM4#
main71072-3T030-B1i200307-200406
LEATHER SEAT & W(POWER SEAT),DK. GRAY,TRIM1#
main71072-3T030-E1i200307-200406
LEATHER SEAT & W(POWER SEAT),FAWN,TRIM4#
main71072-3T050-B1i200307-200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),DK. GRAY,TRIM1#
main71072-3T050-E1i200307-200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),FAWN,TRIM4#
main71072-3T140-B0i200107-200307
LEATHER SEAT & W(SEAT HEATER),DK. GRAY,TRIM1#
main71072-3T140-E0i200107-200307
LEATHER SEAT & W(SEAT HEATER),FAWN,TRIM4#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-33A00-B0i200307-200406
LEATHER SEAT & W(POWER SEAT),STONE,TRIM1#
main71073-33A00-E0i200307-200406
LEATHER SEAT & W(POWER SEAT),FAWN,TRIM4#
main71073-33A10-B1i200307-200406
LEATHER SEAT & W(POWER SEAT & SRS SIDE AIR BAG),STONE,TRIM1#
main71073-33A10-E1i200307-200406
LEATHER SEAT & W(POWER SEAT & SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-33A20-B0i200307-200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),STONE,TRIM1#
main71073-33A20-E0i200307-200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),FAWN,TRIM4#
main71073-33A30-B1i200307-200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER & SRS SIDE AIR BAG),STONE,TRIM1#
main71073-33A30-E1i200307-200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER & SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-33A40-B0i200307-200406
LEATHER SEAT,DK. GRAY,TRIM1#
main71073-33A40-E0i200307-200406
LEATHER SEAT,FAWN,TRIM4#
main71073-33A50-B1i200307-200406
LEATHER SEAT & W(SRS SIDE AIR BAG),DK. GRAY,TRIM1#
main71073-33A50-E1i200307-200406
LEATHER SEAT & W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-33A60-B0i200307-200406
LEATHER SEAT & W(SEAT HEATER),DK. GRAY,TRIM1#
main71073-33A60-E0i200307-200406
LEATHER SEAT & W(SEAT HEATER),FAWN,TRIM4#
main71073-33A70-B1i200307-200406
LEATHER SEAT & W(SEAT HEATER & SRS SIDE AIR BAG),DK. GRAY,TRIM1#
main71073-33A70-E1i200307-200406
LEATHER SEAT & W(SEAT HEATER & SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-33B50-B0i200406
W(SRS SIDE AIR BAG),STONE,TRIM9#
main71073-33B50-E0i200406
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-33B60-B0i200406
STONE,TRIM9#
main71073-33B60-E0i200406
FAWN,TRIM4#
main71073-33C10-B0i200307-200406
W(SEAT BACK POCKET),STONE-COMFORT SEAT INSERT,TRIM1#
main71073-33C10-E0i200307-200406
W(SEAT BACK POCKET),FAWN-COMFORT SEAT INSERT,TRIM4#
main71073-33C20-B1i200307-200406
W(POWER SEAT & SRS SIDE AIR BAG),STONE-COMFORT SEAT INSERT,TRIM1#
main71073-33C20-E1i200307-200406
W(POWER SEAT & SRS SIDE AIR BAG),FAWN-COMFORT SEAT INSERT,TRIM4#
main71073-33C30-E0i200307-200403
20TH ANNIVERSARY(USA),FAWN,TRIM4#
main71073-33C40-E0i200307-200403
20TH ANNIVERSARY(USA) & W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-33D20-B0i200307-200406
DK. GRAY SPORT INSERT,TRIM1#
main71073-33D20-E0i200406
FAWN SPORT INSERT,TRIM4#
main71073-33D30-B0i200307-200406
W(SRS SIDE AIR BAG),DK. GRAY SPORT INSERT,TRIM1#
main71073-33D30-B1i200406
W(SRS SIDE AIR BAG),DK.GRAY SPORT INSERT,TRIM9#
main71073-33D30-E0i200307-200406
W(SRS SIDE AIR BAG),FAWN SPORT INSERT,TRIM4#
main71073-33D30-E1i200406
W(SRS SIDE AIR BAG),FAWN SPORT INSERT,TRIM4#
main71073-33E30-B1i200406
W(POWER SEAT),STONE,TRIM9#
main71073-33E30-E1i200406
W(POWER SEAT),FAWN,TRIM4#
main71073-33E40-B1i200406
W(POWER SEAT & SRS SIDE AIR BAG),STONE,TRIM9#
main71073-33E40-E1i200406
W(POWER SEAT & SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-33E70-B0i200406
LEATHER SEAT & W(POWER SEAT),STONE,TRIM9#
main71073-33E70-E0i200406
LEATHER SEAT & W(POWER SEAT),FAWN,TRIM4#
main71073-33E80-B0i200406
LEATHER SEAT & W(POWER SEAT & SRS SIDE AIR BAG),STONE,TRIM9#
main71073-33E80-E0i200406
LEATHER SEAT & W(POWER SEAT & SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-33E90-B0i200409
LEATHER SEAT,DK.GRAY,TRIM9#
main71073-33E90-E0i200409
LEATHER SEAT,FAWN,TRIM4#
main71073-33F00-B0i200409
LEATHER SEAT & W(SRS SIDE AIR BAG),DK.GRAY,TRIM9#
main71073-33F00-E0i200409
LEATHER SEAT & W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-33G00-B0i200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),STONE,TRIM9#
main71073-33G00-E0i200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),FAWN,TRIM4#
main71073-33G10-B0i200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER & SRS SIDE AIR BAG),STONE,TRIM9#
main71073-33G10-E0i200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER & SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-33G20-B0i200409
LEATHER SEAT & W(SEAT HEATER),DK.GRAY,TRIM9#
main71073-33G20-E0i200409
LEATHER SEAT & W(SEAT HEATER),FAWN,TRIM4#
main71073-33G30-B0i200409
LEATHER SEAT & W(SEAT HEATER & SRS SIDE AIR BAG),DK.GRAY,TRIM9#
main71073-33G30-E0i200409
LEATHER SEAT & W(SEAT HEATER & SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-3T050-B0i200307-200406
STONE-COMFORT SEAT I,TRIM1#
main71073-3T050-E0i200307-200406
FAWN-COMFORT SEAT IN,TRIM4#
main71073-3T290-B0i200107-200210
STONE-COMFORT SEAT I,TRIM1#
main71073-3T290-E0i200107-200210
FAWN-COMFORT SEAT IN,TRIM4#
main71073-3T291-B0i200210-200307
STONE-COMFORT SEAT I,TRIM1#
main71073-3T291-E0i200210-200307
FAWN-COMFORT SEAT IN,TRIM4#
main71073-3T300-B0i200107-200210
W(SRS SIDE AIR BAG),STONE-COMFORT SEAT I,TRIM1#
main71073-3T300-E0i200107-200210
W(SRS SIDE AIR BAG),FAWN-COMFORT SEAT IN,TRIM4#
main71073-3T301-B0i200210-200307
W(SRS SIDE AIR BAG),STONE,TRIM1#
main71073-3T301-E0i200210-200307
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-3T310-B0i200107-200307
LEATHER SEAT & W(POWER SEAT),STONE,TRIM1#
main71073-3T310-E0i200107-200307
LEATHER SEAT & W(POWER SEAT),FAWN,TRIM4#
main71073-3T320-B0i200107-200307
LEATHER SEAT & W(POWER SEAT & SRS SIDE AIR BAG),STONE,TRIM1#
main71073-3T320-E0i200107-200307
LEATHER SEAT & W(POWER SEAT & SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-3T330-B0i200107-200307
DK. GRAY SPORT INSER,TRIM1#
main71073-3T330-E0i200107-200307
FAWN SPORT INSERT,TRIM4#
main71073-3T340-B0i200107-200307
W(SRS SIDE AIR BAG),DK. GRAY SPORT INSER,TRIM1#
main71073-3T340-E0i200107-200307
W(SRS SIDE AIR BAG),FAWN SPORT INSERT,TRIM4#
main71073-3T350-B0i200107-200307
LEATHER SEAT,DK. GRAY,TRIM1#
main71073-3T350-E0i200107-200307
LEATHER SEAT,FAWN,TRIM4#
main71073-3T360-B0i200107-200307
LEATHER SEAT & W(SRS SIDE AIR BAG),DK. GRAY,TRIM1#
main71073-3T360-E0i200107-200307
LEATHER SEAT & W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-3T390-B0i200107-200210
W(POWER SEAT & SEAT BACK POCKET),STONE-COMFORT SEAT I,TRIM1#
main71073-3T390-E0i200107-200210
W(POWER SEAT & SEAT BACK POCKET),FAWN-COMFORT SEAT IN,TRIM4#
main71073-3T391-B0i200301-200307
W(POWER SEAT),STONE-COMFORT SEAT I,TRIM1#
main71073-3T391-E0i200210-200307
W(POWER SEAT & SEAT BACK POCKET),FAWN-COMFORT SEAT IN,TRIM4#
main71073-3T400-B0i200107-200210
W(POWER SEAT & SEAT BACK POCKET & SRS SIDE AIR BAG),STONE-COMFORT SEAT I,TRIM1#
main71073-3T400-E0i200107-200210
W(POWER SEAT & SEAT BACK POCKET & SRS SIDE AIR BAG),FAWN-COMFORT SEAT IN,TRIM4#
main71073-3T401-B0i200210-200307
W(POWER SEAT & SEAT BACK POCKET & SRS SIDE AIR BAG),STONE,TRIM1#
main71073-3T401-E0i200210-200307
W(POWER SEAT & SEAT BACK POCKET & SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-3T410-B0i200107-200307
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),STONE,TRIM1#
main71073-3T410-E0i200107-200307
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),FAWN,TRIM4#
main71073-3T420-B1i200307-200406
W(SRS SIDE AIR BAG),STONE-COMFORT SEAT INSERT,TRIM1#
main71073-3T420-E2i200307-200406
W(SRS SIDE AIR BAG),FAWN-COMFORT SEAT INSERT,TRIM4#
main71073-3T430-B0i200107-200210
W(SEAT BACK POCKET),STONE-COMFORT SEAT I,TRIM1#
main71073-3T430-E0i200107-200210
W(SEAT BACK POCKET),FAWN-COMFORT SEAT IN,TRIM4#
main71073-3T431-B0i200210-200307
W(SEAT BACK POCKET),STONE-COMFORT SEAT I,TRIM1#
main71073-3T431-E0i200210-200307
W(SEAT BACK POCKET),FAWN-COMFORT SEAT IN,TRIM4#
main71073-3T440-B0i200107-200210
W(SEAT BACK POCKET & SRS SIDE AIR BAG),STONE-COMFORT SEAT I,TRIM1#
main71073-3T440-E0i200107-200210
W(SEAT BACK POCKET & SRS SIDE AIR BAG),FAWN-COMFORT SEAT IN,TRIM4#
main71073-3T441-B0i200210-200307
W(SEAT BACK POCKET & SRS SIDE AIR BAG),STONE,TRIM1#
main71073-3T441-E0i200210-200307
W(SEAT BACK POCKET & SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-3T450-B0i200107-200307
W(SEAT BACK POCKET),DK. GRAY SPORT INSER,TRIM1#
main71073-3T450-E0i200107-200307
W(SEAT BACK POCKET),FAWN SPORT INSERT,TRIM4#
main71073-3T460-B0i200107-200307
W(SEAT BACK POCKET & SRS SIDE AIR BAG),DK. GRAY SPORT INSER,TRIM1#
main71073-3T460-E0i200107-200307
W(SEAT BACK POCKET & SRS SIDE AIR BAG),FAWN SPORT INSERT,TRIM4#
main71073-3T490-B0i200107-200307
LEATHER SEAT & W(POWER SEAT & SEAT HEATER & SRS SIDE AIR BAG),STONE,TRIM1#
main71073-3T490-E0i200107-200307
LEATHER SEAT & W(POWER SEAT & SEAT HEATER & SRS SIDE AIR BAG),FAWN,TRIM4#
main71073-3T570-B0i200107-200307
LEATHER SEAT & W(SEAT HEATER),DK. GRAY,TRIM1#
main71073-3T570-E0i200107-200307
LEATHER SEAT & W(SEAT HEATER),FAWN,TRIM4#
main71073-3T580-B0i200107-200307
LEATHER SEAT & W(SEAT HEATER & SRS SIDE AIR BAG),DK. GRAY,TRIM1#
main71073-3T580-E0i200107-200307
LEATHER SEAT & W(SEAT HEATER & SRS SIDE AIR BAG),FAWN,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-33B60-B0i200406
STONE,TRIM9#
main71073-33B60-E0i200406
FAWN,TRIM4#
main71073-33D20-B0i200406
DK. GRAY SPORT INSERT,TRIM9#
main71073-33D20-E0i200406
FAWN SPORT INSERT,TRIM4#
main71073-33E30-B1i200406
W(POWER SEAT),STONE,TRIM9#
main71073-33E30-E1i200406
W(POWER SEAT),FAWN,TRIM4#
main71073-33E70-B0i200406
LEATHER SEAT & W(POWER SEAT),STONE,TRIM9#
main71073-33E70-E0i200406
LEATHER SEAT & W(POWER SEAT),FAWN,TRIM4#
main71073-33G00-B0i200406
STONE,TRIM9#
main71073-33G00-E0i200406
FAWN,TRIM4#
main71074-33890-B0i200107-200210
STONE-COMFORT SEAT I,TRIM1#
main71074-33890-E0i200107-200210
FAWN-COMFORT SEAT IN,TRIM4#
main71074-33891-B0i200210-200307
STONE-COMFORT SEAT I,TRIM1#
main71074-33891-E0i200210-200307
FAWN-COMFORT SEAT IN,TRIM4#
main71074-33A10-B0i200307-200406
LEATHER SEAT & W(POWER SEAT),STONE,TRIM1#
main71074-33A10-E0i200307-200406
LEATHER SEAT & W(POWER SEAT),FAWN,TRIM4#
main71074-33A20-B1i200307-200406
LEATHER SEAT & W(POWER SEAT & SRS SIDE AIR BAG),STONE,TRIM1#
main71074-33A20-E1i200307-200406
LEATHER SEAT & W(POWER SEAT & SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-33A30-B0i200307-200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),STONE,TRIM1#
main71074-33A30-E0i200307-200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),FAWN,TRIM4#
main71074-33A40-B1i200307-200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER & SRS SIDE AIR BAG),STONE,TRIM1#
main71074-33A40-E1i200307-200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER & SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-33A50-B0i200307-200406
LEATHER SEAT & W(POWER SEAT),DK. GRAY,TRIM1#
main71074-33A50-E0i200307-200406
LEATHER SEAT & W(POWER SEAT),FAWN,TRIM4#
main71074-33A60-B1i200307-200406
LEATHER SEAT & W(POWER SEAT & SRS SIDE AIR BAG),DK. GRAY,TRIM1#
main71074-33A60-E1i200307-200406
LEATHER SEAT & W(POWER SEAT & SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-33A70-B0i200307-200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),DK. GRAY,TRIM1#
main71074-33A70-E0i200307-200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),FAWN,TRIM4#
main71074-33A80-B1i200307-200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER & SRS SIDE AIR BAG),DK. GRAY,TRIM1#
main71074-33A80-E1i200307-200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER & SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-33B80-B0i200307-200406
W(SEAT BACK POCKET),STONE-COMFORT SEAT INSERT,TRIM1#
main71074-33B80-E0i200307-200406
W(SEAT BACK POCKET),FAWN-COMFORT SEAT INSERT,TRIM4#
main71074-33B90-B1i200307-200406
W(POWER SEAT & SRS SIDE AIR BAG),STONE-COMFORT SEAT INSERT,TRIM1#
main71074-33B90-E1i200307-200406
W(POWER SEAT & SRS SIDE AIR BAG),FAWN-COMFORT SEAT INSERT,TRIM4#
main71074-33C20-E0i200307-200403
20TH ANNIVERSARY(USA),FAWN,TRIM4#
main71074-33C30-E0i200307-200403
20TH ANNIVERSARY(USA) & W(SEAT BACK POCKET),FAWN,TRIM4#
main71074-33C40-E0i200307-200403
20TH ANNIVERSARY(USA) & W(POWER SEAT & SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-33D20-B0i200307-200406
DK. GRAY SPORT INSERT,TRIM1#
main71074-33D20-E0i200307-200406
FAWN SPORT INSERT,TRIM4#
main71074-33D30-B0i200307-200406
W(SRS SIDE AIR BAG),DK. GRAY SPORT INSERT,TRIM1#
main71074-33D30-B1i200406
W(SRS SIDE AIR BAG),DK.GRAY SPORT INSERT,TRIM9#
main71074-33D30-E0i200307-200406
W(SRS SIDE AIR BAG),FAWN SPORT INSERT,TRIM4#
main71074-33D30-E1i200406
W(SRS SIDE AIR BAG),FAWN SPORT INSERT,TRIM4#
main71074-33D40-B0i200307-200406
W(POWER SEAT),DK. GRAY SPORT INSERT,TRIM1#
main71074-33D40-E0i200307-200406
W(POWER SEAT),FAWN SPORT INSERT,TRIM4#
main71074-33D50-B0i200307-200406
W(POWER SEAT & SRS AIR BAG),DK. GRAY SPORT INSERT,TRIM1#
main71074-33D50-B1i200406
W(POWER SEAT & SRS SIDE AIR BAG),DK. GRAY SPORT INSERT,TRIM9#
main71074-33D50-E0i200307-200406
W(POWER SEAT & SRS AIR BAG),FAWN SPORT INSERT,TRIM4#
main71074-33D50-E1i200406
W(POWER SEAT & SRS SIDE AIR BAG),FAWN SPORT INSERT,TRIM4#
main71074-33E00-E0i200307-200403
20TH ANNIVERSARY(USA) & W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-33E50-B1i200406
W(POWER SEAT & SRS SIDE AIR BAG),STONE,TRIM9#
main71074-33E50-E1i200406
W(POWER SEAT & SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-33E70-B0i200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER & SRS SIDE AIR BAG),STONE,TRIM9#
main71074-33E70-E0i200406
LEATHER SEAT & W(POWER SEAT & SEAT HEATER & SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-33E80-B0i200409
LEATHER SEAT & W(POWER SEAT & SRS SIDE AIR BAG),DK.GRAY,TRIM9#
main71074-33E80-E0i200409
LEATHER SEAT & W(POWER SEAT & SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-33G00-B0i200409
LEATHER SEAT & W(POWER SEAT & SEAT HEATER & SRS SIDE AIR BAG),DK.GRAY,TRIM9#
main71074-33G00-E0i200409
LEATHER SEAT & W(POWER SEAT & SEAT HEATER & SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-33G10-B1i200406
W(SRS SIDE AIR BAG),STONE,TRIM9#
main71074-33G10-E1i200406
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-33G20-B0i200406
LEATHER SEAT & W(POWER SEAT & SRS SIDE AIR BAG),STONE,TRIM9#
main71074-33G20-E0i200406
LEATHER SEAT & W(POWER SEAT & SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-33G40-B0i200409
LEATHER SEAT & W(POWER SEAT),DK.GRAY,TRIM9#
main71074-33G40-E0i200409
LEATHER SEAT & W(POWER SEAT),FAWN,TRIM4#
main71074-33G50-B0i200409
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),DK.GRAY,TRIM9#
main71074-33G50-E0i200409
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),FAWN,TRIM4#
main71074-3T020-B0i200107-200210
W(SRS SIDE AIR BAG),STONE-COMFORT SEAT I,TRIM1#
main71074-3T020-E0i200107-200210
W(SRS SIDE AIR BAG),FAWN-COMFORT SEAT IN,TRIM4#
main71074-3T021-B0i200210-200307
W(SRS SIDE AIR BAG),STONE,TRIM1#
main71074-3T021-E0i200210-200307
W(SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-3T030-B0i200107-200307
LEATHER SEAT & W(POWER SEAT),STONE,TRIM1#
main71074-3T030-E0i200107-200307
LEATHER SEAT & W(POWER SEAT),FAWN,TRIM4#
main71074-3T040-B0i200107-200307
LEATHER SEAT & W(POWER SEAT & SRS SIDE AIR BAG),STONE,TRIM1#
main71074-3T040-E0i200107-200307
LEATHER SEAT & W(POWER SEAT & SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-3T050-B0i200107-200307
DK. GRAY SPORT INSER,TRIM1#
main71074-3T050-E0i200107-200307
FAWN SPORT INSERT,TRIM4#
main71074-3T060-B0i200107-200307
W(SRS SIDE AIR BAG),DK. GRAY SPORT INSER,TRIM1#
main71074-3T060-E0i200107-200307
W(SRS SIDE AIR BAG),FAWN SPORT INSERT,TRIM4#
main71074-3T070-B0i200107-200307
LEATHER SEAT & W(POWER SEAT),DK. GRAY,TRIM1#
main71074-3T070-E0i200107-200307
LEATHER SEAT & W(POWER SEAT),FAWN,TRIM4#
main71074-3T080-B0i200107-200307
LEATHER SEAT & W(POWER SEAT & SRS SIDE AIR BAG),DK. GRAY,TRIM1#
main71074-3T080-E0i200107-200307
LEATHER SEAT & W(POWER SEAT & SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-3T110-B0i200107-200307
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),STONE,TRIM1#
main71074-3T110-E0i200107-200307
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),FAWN,TRIM4#
main71074-3T120-B0i200107-200307
LEATHER SEAT & W(POWER SEAT & SEAT HEATER & SRS SIDE AIR BAG),STONE,TRIM1#
main71074-3T120-E0i200107-200307
LEATHER SEAT & W(POWER SEAT & SEAT HEATER & SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-3T130-B0i200307-200406
STONE-COMFORT SEAT I,TRIM1#
main71074-3T130-E0i200307-200406
FAWN-COMFORT SEAT IN,TRIM4#
main71074-3T140-B1i200307-200406
W(SRS SIDE AIR BAG),STONE-COMFORT SEAT INSERT,TRIM1#
main71074-3T140-E2i200307-200406
W(SRS SIDE AIR BAG),FAWN-COMFORT SEAT INSERT,TRIM4#
main71074-3T150-B0i200107-200210
W(POWER SEAT & SEAT BACK POCKET),STONE-COMFORT SEAT I,TRIM1#
main71074-3T150-E0i200107-200210
W(POWER SEAT & SEAT BACK POCKET),FAWN-COMFORT SEAT IN,TRIM4#
main71074-3T151-B0i200210-200307
W(POWER SEAT & SEAT BACK POCKET),STONE-COMFORT SEAT I,TRIM1#
main71074-3T151-E0i200210-200307
W(POWER SEAT & SEAT BACK POCKET),FAWN-COMFORT SEAT IN,TRIM4#
main71074-3T160-B0i200107-200210
W(POWER SEAT & SEAT BACK POCKET & SRS SIDE AIR BAG),STONE-COMFORT SEAT I,TRIM1#
main71074-3T160-E0i200107-200210
W(POWER SEAT & SEAT BACK POCKET & SRS SIDE AIR BAG),FAWN-COMFORT SEAT IN,TRIM4#
main71074-3T161-B0i200210-200307
W(POWER SEAT & SEAT BACK POCKET & SRS SIDE AIR BAG),STONE,TRIM1#
main71074-3T161-E0i200210-200307
W(POWER SEAT & SEAT BACK POCKET & SRS SIDE AIR BAG),FAWN,TRIM4#
main71074-3T170-B0i200107-200307
W(POWER SEAT & SEAT BACK POCKET),DK. GRAY SPORT INSER,TRIM1#
main71074-3T170-E0i200107-200307
W(POWER SEAT & SEAT BACK POCKET),FAWN SPORT INSERT,TRIM4#
main71074-3T180-B0i200107-200307
W(POWER SEAT & SEAT BACK POCKET & SRS SIDE AIR BAG),DK. GRAY SPORT INSER,TRIM1#
main71074-3T180-E0i200107-200307
W(POWER SEAT & SEAT BACK POCKET & SRS SIDE AIR BAG),FAWN SPORT INSERT,TRIM4#
main71074-3T200-B0i200107-200307
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),DK. GRAY,TRIM1#
main71074-3T200-E0i200107-200307
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),FAWN,TRIM4#
main71074-3T260-B0i200107-200307
LEATHER SEAT & W(POWER SEAT & SEAT HEATER & SRS SIDE AIR BAG),DK. GRAY,TRIM1#
main71074-3T260-E0i200107-200307
LEATHER SEAT & W(POWER SEAT & SEAT HEATER & SRS SIDE AIR BAG),FAWN,TRIM4#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71502-33020i200107-200307
LEATHER SEAT & W(WARNING SENSOR)
main71502-33030i200107-200307
W(WARNING SENSOR)
main71511-33120i200107-200307
LEATHER SEAT
main71511-33130i200307-200406
main71511-33140i200307-200406
LEATHER SEAT
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-33110i200107-200307
main71511-33120i200107-200307
LEATHER SEAT
main71512-33070i200406
main71512-33080i200406
W(POWER SEAT)
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-33090i200107-200307
main71551-33110i200107-200307
LEATHER SEAT
main71551-33140i200307-200406
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-33090i200107-200307
main71551-33110i200107-200307
LEATHER SEAT
main71551-33140i200307-200406
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-33080i200107-200307
LEATHER SEAT
main71630-47010i200107-200307
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71630-33070i200107-200307
main71630-33090i200107-200307
LEATHER SEAT
71910AHEADREST ASSY, FRONT SEAT
main71910-33420-B0×2i200107-200210
STONE-COMFORT SEAT I,TRIM1#
main71910-33420-E0×2i200107-200210
FAWN-COMFORT SEAT IN,TRIM4#
main71910-33421-B0×2i200210-200406
STONE-COMFORT SEAT I,TRIM1#
main71910-33421-E0×2i200210-200406
FAWN-COMFORT SEAT IN,TRIM4#
main71910-33430-B0×2i200107-200406
LEATHER SEAT,STONE,TRIM1#
main71910-33430-B1×2i200107-200406
LEATHER SEAT,DK. GRAY,TRIM1#
main71910-33430-E0×2i200107-200406
LEATHER SEAT,FAWN,TRIM4#
main71910-33440-B0×2i200107-200406
DK. GRAY SPORT INSERT,TRIM1#
main71910-33440-E0×2i200107-200406
FAWN SPORT INSERT,TRIM4#
main71910-33450-E0×2i200307-200403
20TH ANNIVERSARY(USA),FAWN,TRIM4#
main71910-33500-B0×2i200409
LEATHER SEAT,DK.GRAY,TRIM9#
main71910-33500-B1×2i200406
LEATHER SEAT,STONE,TRIM9#
main71910-33500-E0×2i200406
LEATHER SEAT,FAWN,TRIM4#
main71910-33510-B0×2i200406
STONE,TRIM9#
main71910-33510-E0×2i200406
FAWN,TRIM4#
main71910-33520-B0×2i200406
DK. GRAY SPORT INSERT,TRIM9#
main71910-33520-E0×2i200406
FAWN SPORT INSERT,TRIM4#
71931SUPPORT, FRONT SEAT HEADREST
main71930-42020-B3×2i200406
W(LOCK)&W(BUTTON),STONE,TRIM9#
main71930-42020-B4×2i200107-200406
W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#
main71930-42020-E0×2i200107-200406
W(LOCK)&W(BUTTON),FAWN,TRIM4#
main71931-42020-B3×2i200107-200406
W(LOCK)&W/O(BUTTON),STONE,TRIM1#
main71931-42020-B4×2i200107-200406
W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1#
main71931-42020-E0×2i200406
W(LOCK)&W/O(BUTTON),FAWN,TRIM4#
72592KNOB, RECLINING ADJUSTER
main72592-20040-B7i200107-200307
STONE,TRIM1#
main72592-20040-B8i200107-200307
DK.GRAY,TRIM1#
main72592-20040-E3i200107-200307
FAWN,TRIM4#
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-33030i200107-200307
main72760-33060i200307-200406
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
main87510-06010i200107-200307
main87510-06030i200307-200406
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
main87510-06010i200107-200307
main87510-06030i200307-200406
87510MHEATER ASSY, FRONT SEATBACK, RH
main87510-06020i200107-200307
main87530-06010i200307-200406
87510NHEATER ASSY, FRONT SEATBACK, LH
main87510-06020i200107-200307
main87530-06010i200307-200406
9008261005
main90082-61005
9046810018
main90468-10018
9048015031
main90480-15031
9052001006
main90520-01006
9356054012
main93560-54012
9616000600
main96160-00600

26 parts on this diagram · 12 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
