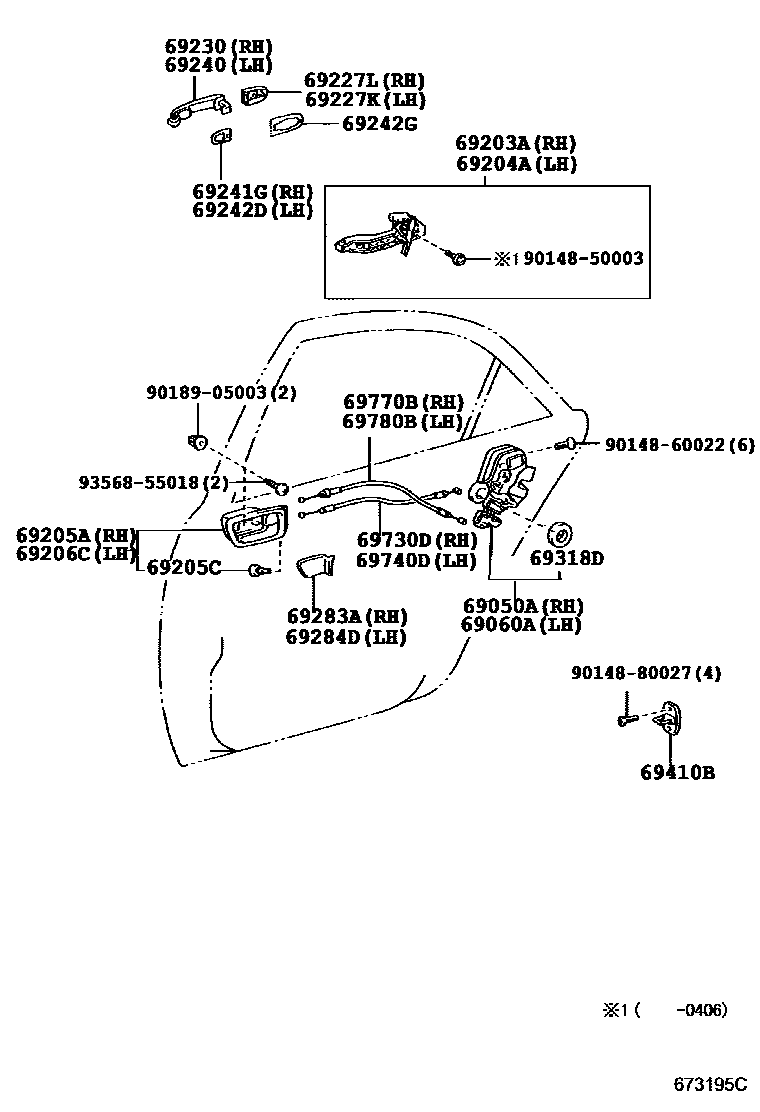

REAR DOOR LOCK & HANDLE
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
DK.CHARCOAL,TRIM1#
SANDAL WOOD,TRIM4#
DK.CHARCOAL,TRIM9#
DK.CHARCOAL,TRIM1#
DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM4#,9#
SANDAL WOOD,TRIM4#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
DK.CHARCOAL,TRIM1#
SANDAL WOOD,TRIM4#
DK.CHARCOAL,TRIM9#
DK.CHARCOAL,TRIM1#
DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM4#,9#
SANDAL WOOD,TRIM4#
69227KCOVER, REAR DOOR OUTSIDE HANDLE, RH
20TH ANNIVERSARY(USA),WHITE PEARL CS.,062
sub69227-33040
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
20TH ANNIVERSARY(USA),WHITE PEARL CS.,062
sub69227-33040
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
20TH ANNIVERSARY(USA),WHITE PEARL CS.,062
sub69210-33080
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
20TH ANNIVERSARY(USA),WHITE PEARL CS.,062
sub69210-33080
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242DPAD, REAR DOOR OUTSIDE HANDLE, LH
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9014850003
main90148-50003
9014860022
main90148-60022
9014880027
main90148-80027
9018905003
main90189-05003
9356855018
main93568-55018
27 parts on this diagram · 1 diagram in section
