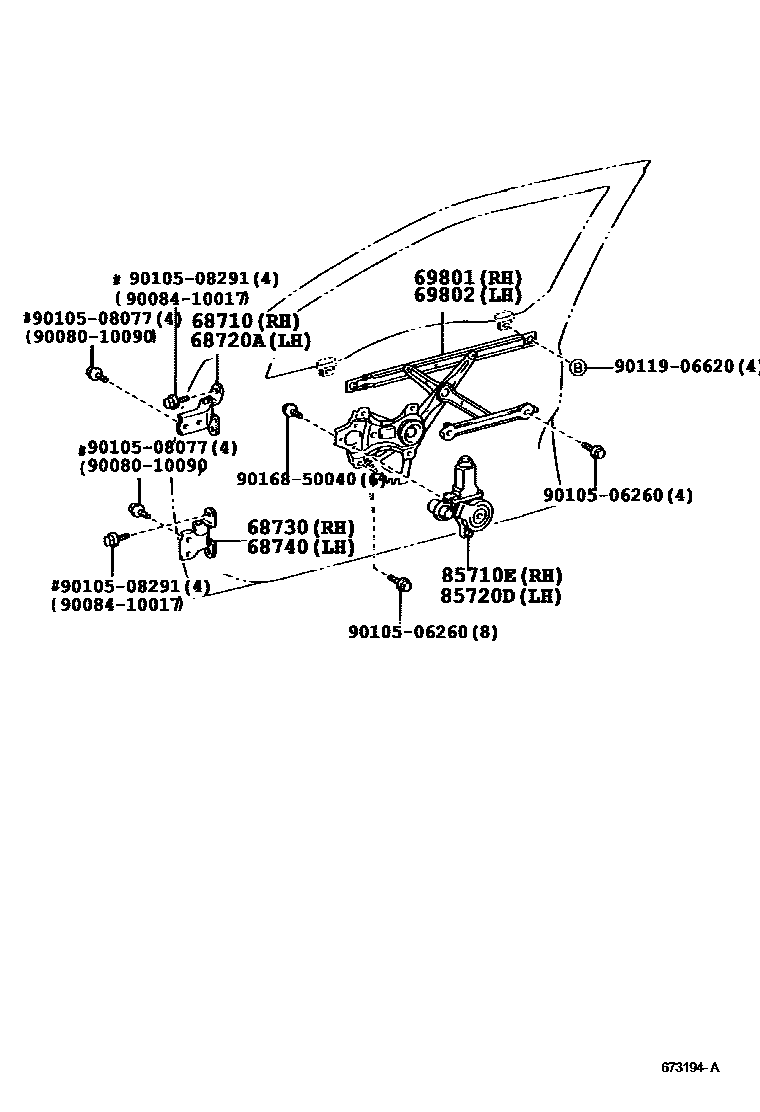

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-33030iACV30,MCV3#..JPP200406

68720AHINGE ASSY, FRONT DOOR, LH

main68720-33030iACV30,MCV3#..JPP200107-200406

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-33020iACV30,MCV3#..JPP200107-200406

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-33020iACV30,MCV3#..JPP200107-200406

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-33050iACV30,MCV3#..JPP200406

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-33060iACV30,MCV3#..JPP200107-200406

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-33130iACV30,MCV3#..JPP200107-200406

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-33120iACV30,MCV3#..JPP..(LE,SE)200107-200406

main85720-33130iACV30,MCV30..JPP..XLE200406

9008010090

main90080-10090

9008410017

main90084-10017

9010506260

main90105-06260

9010508077

main90105-08077

9010508291

main90105-08291

9011906620

main90119-06620

9016850040

main90168-50040

15 parts on this diagram · 1 diagram in section
