ROOF PANEL & BACK WINDOW GLASS

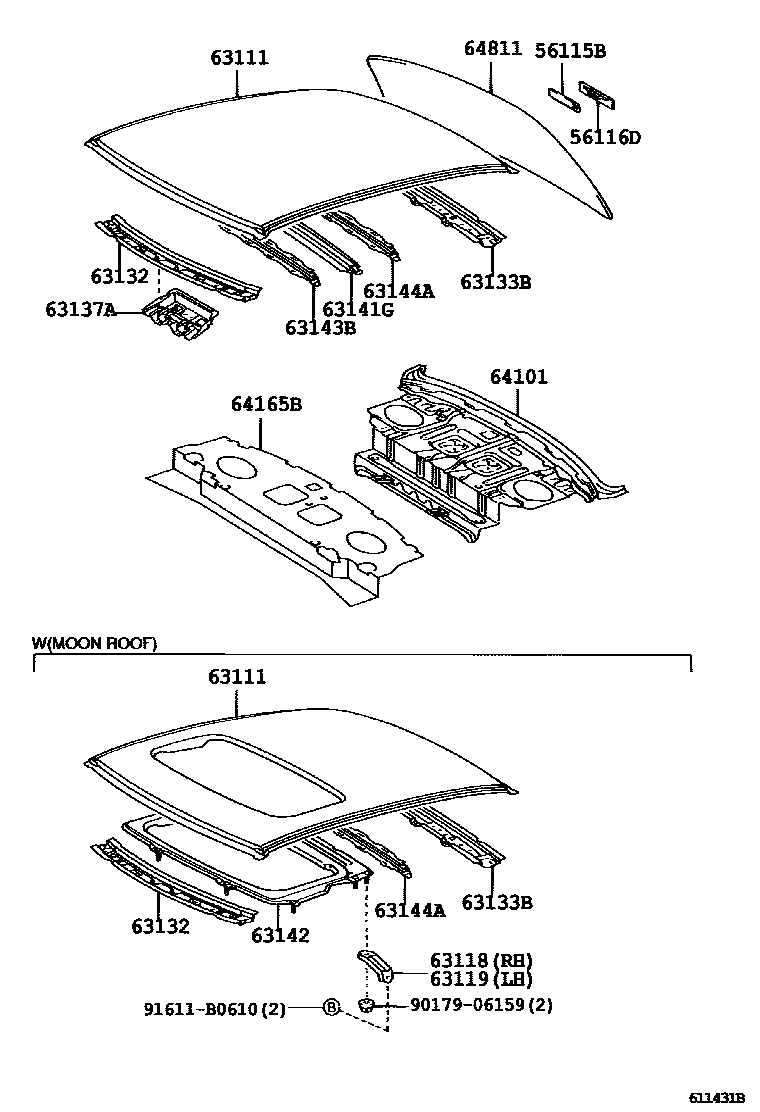

Parts diagram

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30100×2i200107-200406

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050×2i200107-200406

63111PANEL, ROOF

main63111-33190i200406

main63111-33200i200107-200307

W(MOON ROOF)

63118SUPPORT, ROOF PANEL, RH

main63118-33010i200107-200406

63119SUPPORT, ROOF PANEL, LH

main63118-33010i200107-200406

63132PANEL, WINDSHIELD HEADER, INNER

main63132-33040i200107-200406

63133BFRAME, BACK WINDOW

main63133-33040i200107-200406

63137ABRACKET, DOME LAMP, NO.1

main63137-33070i200406

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-33050i200406

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-33040i200107-200406

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-33050i200406

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-33070i200107-200406

main63144-33080i200107-200406

W(MOON ROOF)

64101PANEL SUB-ASSY, UPPER BACK

main64101-33260i200107-200406

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-33060i200107-200307

main64165-33061i200307-200406

main64165-33062i200408

64811GLASS, BACK WINDOW

main64801-33210i200406

main64801-33220i200406

W(TELEVISION ANTENNA)

main64811-33390i200107-200212

*UVCEHTT,T=3.5,GREEN

main64811-33400i200107-200212

*UVCEHTT,T=3.5,GREEN,W(DIVERSITY ANTENNA)

main64811-33510i200212-200406

*UVCEHTT,T=3.5,GREEN,W(DIVERSITY ANTENNA)

main64811-33520i200212-200406

*UVCEHTT,T=3.5,GREEN

main64811-AA100i200107-200406

*EHTT,T=3.5,GREEN

main64811-AA110i200107-200406

*EHTT,T=3.5,GREEN,W(DIVERSITY ANTENNA)

9017906159

main90179-06159

91611B0610

main91611-B0610

17 parts on this diagram · 2 diagrams in section
