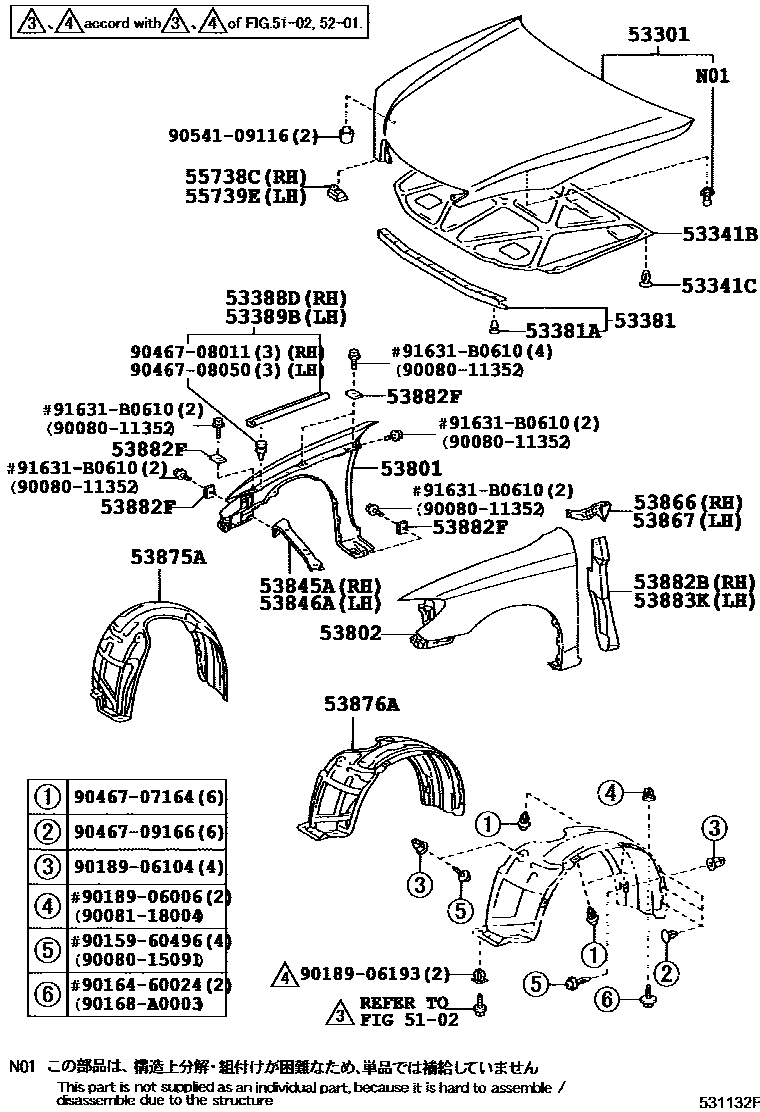

HOOD & FRONT FENDER
5102
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53801FENDER SUB-ASSY, FRONT RH
sub53801-AA020
53802FENDER SUB-ASSY, FRONT LH
sub53802-AA020
53845ABRACE, FRONT WHEEL OPENING APRON, RH
53846ABRACE, FRONT WHEEL OPENING APRON, LH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53882BSEAL, FRONT FENDER, RH
53882FSEAL, FRONT FENDER
53883KSEAL, FRONT FENDER, LH
55738CSTOPPER, HOOD, RH
55739ESTOPPER, HOOD, LH
9008011352
main90080-11352
9008015091
main90080-15091
9008118004
main90081-18004
9015960496
main90159-60496
9016460024
main90164-60024
90168A0003
main90168-A0003
9018906006
main90189-06006
9018906104
main90189-06104
9018906193
main90189-06193
9046707164
main90467-07164
9046708011
main90467-08011
9046708050
main90467-08050
9046709166
main90467-09166
9054109116
main90541-09116
91631B0610
main91631-B0610
36 parts on this diagram · 2 diagrams in section
