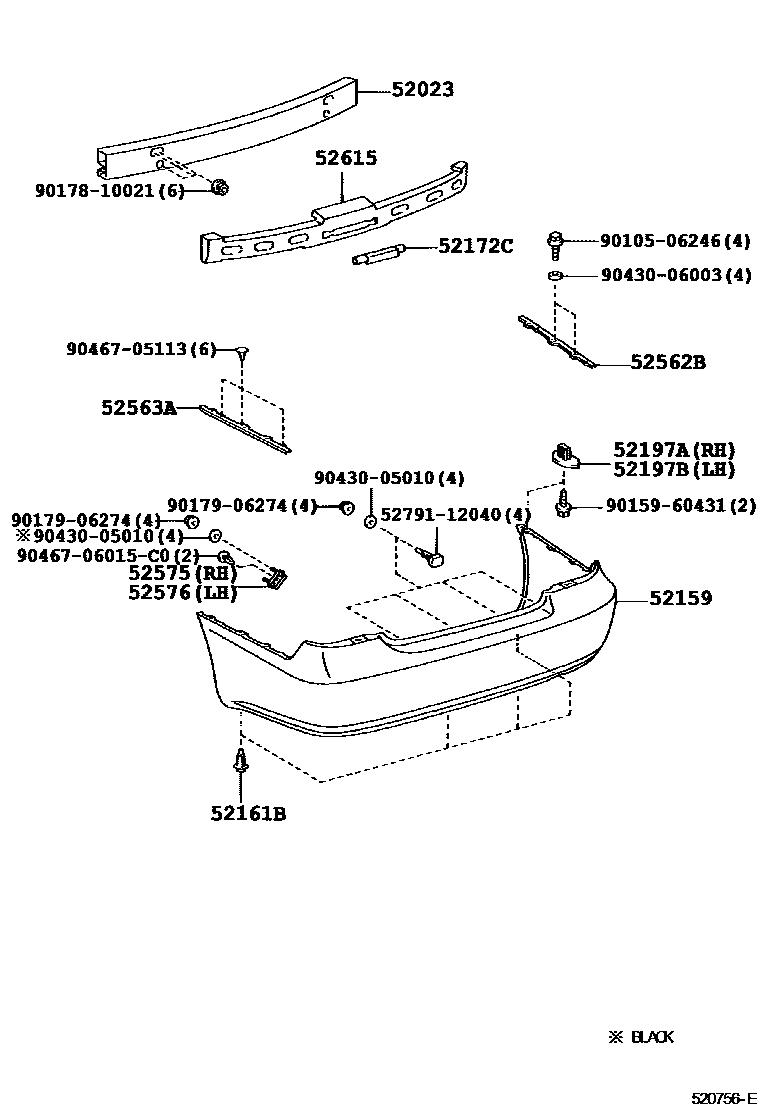

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52171-33100iACV30,MCV3#..JPP200107-200406

52159COVER, REAR BUMPER

main52159-33912iACV30,MCV30..JPP200107-200301

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-16010×4iACV30,MCV3#..JPP200107-200406

52172CREINFORCEMENT, REAR BUMPER BAR, CENTER

main52172-33020iACV30,MCV3#..JPP200107-200406

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-16020iACV30,MCV30..JPP200107-200203

main52197-33020iACV30,MCV3#..JPP200203-200406

52197BBRACKET, REAR BUMPER SEAL, LH

main52197-16020iACV30,MCV30..JPP200107-200203

main52197-33020iACV30,MCV3#..JPP200203-200406

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-33010iACV30,MCV3#..JPP200107-200406

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-33010iACV30,MCV3#..JPP200107-200406

52575RETAINER, REAR BUMPER SIDE, RH

main52575-33090iACV30,MCV3#..JPP200107-200406

52576RETAINER, REAR BUMPER SIDE, LH

main52575-33090iACV30,MCV3#..JPP200107-200406

52615ABSORBER, REAR BUMPER ENERGY

main52615-33080iACV30,MCV3#..JPP200107-200406

5279112040BOLT, BUMPER MOULDING SET, NO.1

main52791-12040

9010506246

main90105-06246

9015960431

main90159-60431

9017810021

main90178-10021

9017906274

main90179-06274

9043005010

main90430-05010

9043006003

main90430-06003

9046705113

main90467-05113

9046706015C0

main90467-06015C0

20 parts on this diagram · 1 diagram in section
