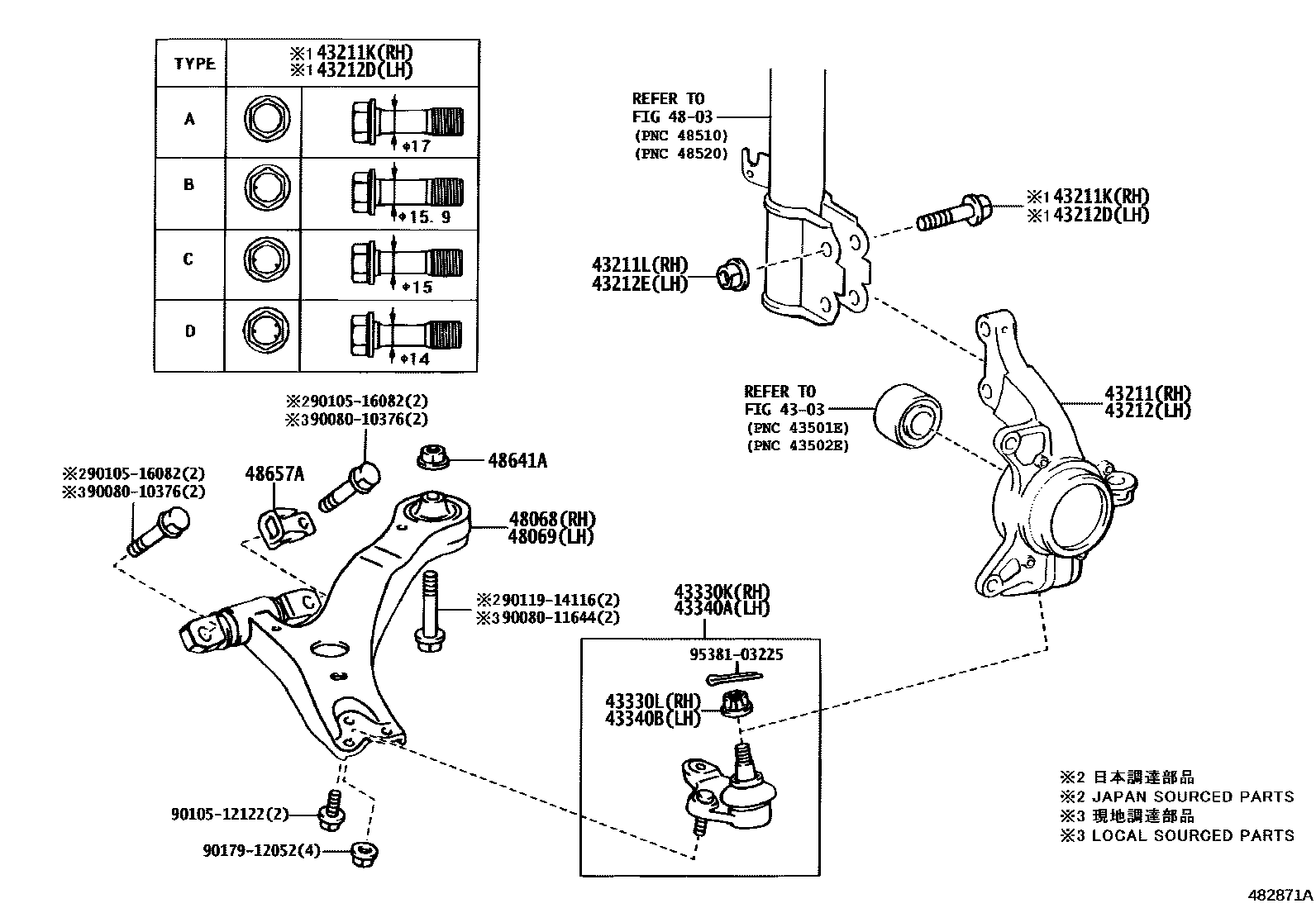

FRONT AXLE ARM & STEERING KNUCKLE

0001 1W/O(ABS) 0002 1W(ABS) 0003 1

4303

43211KNUCKLE, STEERING, RH

main43211-33080iACV30..JPP..(LE,SE)200107-200307

main43211-39045iACV30,MCV30..JPP200107-200307

W(ABS)

main43211-58010iACV30,MCV3#..JPP200307-200406

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17008×2iACV30,MCV30..JPP200107-200301

OD=17,TYPE A:REFER TO ILLUSTRATION

main90105-17009iACV30,MCV3#..JPP200406

OD=15.9,TYPE B:REFER TO ILLUSTRATION

main90105-17010iACV30,MCV3#..JPP200301-200406

OD=15,TYPE C:REFER TO ILLUSTRATION

main90105-17011iACV30,MCV3#..JPP200301-200406

OD=14,TYPE D:REFER TO ILLUSTRATION

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17001×2iACV30,MCV3#..JPP200406

43212KNUCKLE, STEERING, LH

main43212-33100iACV30..JPP..(LE,SE)200107-200307

main43212-39035iACV30,MCV30..JPP200107-200307

W(ABS)

main43212-58010iACV30,MCV3#..JPP200307-200406

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17008×2iACV30..JPP..SE200406

OD=17,TYPE A:REFER TO ILLUSTRATION

main90105-17009iACV30,MCV3#..JPP200301-200406

OD=15.9,TYPE B:REFER TO ILLUSTRATION

main90105-17010iACV30,MCV30..JPP200107-200301

OD=15,TYPE C:REFER TO ILLUSTRATION

main90105-17011iACV30,MCV3#..JPP200301-200406

OD=14,TYPE D:REFER TO ILLUSTRATION

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17001×2iACV30..JPP..SE200406

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-29405iACV30,MCV30..JPP200107-200301

sub43330-29615

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iACV30,MCV30..JPP200107-200301

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-29175iACV30,MCV30..JPP200107-200301

sub43340-29215

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iMCV3#..JPP..(SE,XLE)200406

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-33050iACV30..JPP;MCV30..JPP..LE200301-200406

main48068-58010iMCV3#..JPP..(SE,XLE)200301-200406

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-33050iACV30..JPP;MCV30..JPP..LE200406

main48069-58010iMCV3#..JPP..(SE,XLE)200301-200406

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90179-14068×2iACV30,MCV30..JPP200107-200301

48657ASTOPPER, FRONT LOWER ARM BUSH

main48657-28010×2iACV30,MCV30..JPP200107-200301

9008010376

main90080-10376

9008011644

main90080-11644

9010512122

main90105-12122

9010516082

main90105-16082

9011914116

main90119-14116

9017912052

main90179-12052

9538103225

main95381-03225

23 parts on this diagram · 3 diagrams in section
