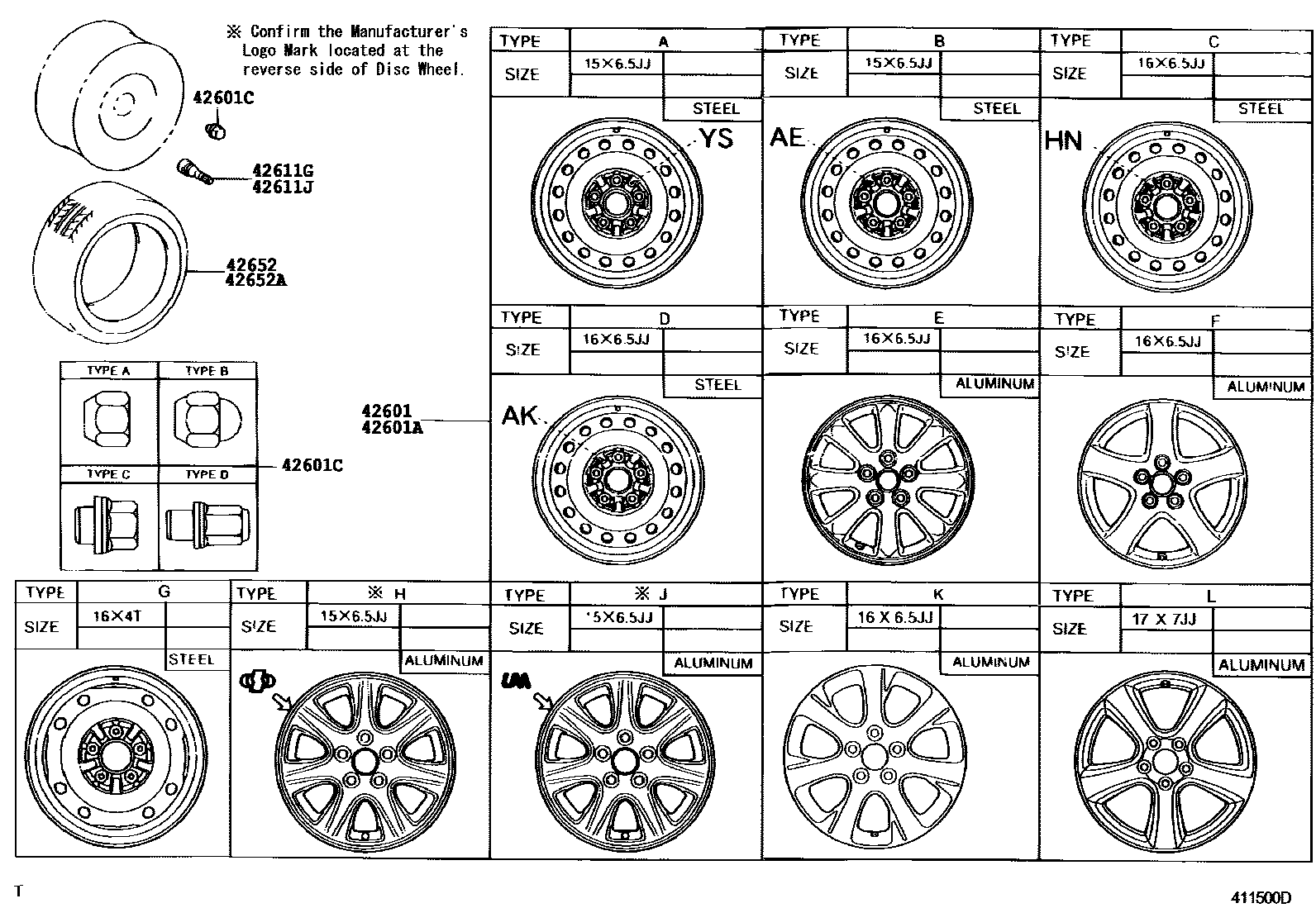

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-28420×4iACV30,MCV30..JPP..LE200406

15X6.5JJ,#,TYPE A:REFER ILLUST.

main42611-28430×4iACV30,MCV30..JPP..LE200107-200406

15X6.5JJ,#,TYPE B:REFER TO ILLUSTRATION

main42611-2A080×4iACV30,MCV30..JPP..XLE200406

16X6.5JJ,#,20TH ANNIVERSARY(USA), TYPE K:REFER TO ILLUSTRATION

main42611-33310×4iACV30,MCV3#..JPP..(SE,XLE)200107-200406

16X6.5JJ,#,TYPE D:REFER TO ILLUSTRATION

main42611-33320×4iACV30,MCV30..JPP..(SE,XLE)200406

16X6.5JJ,#,TYPE C:REFER TO ILLUSTRATION

main42611-33330×4iACV30,MCV30..JPP..XLE200107-200406

16X6.5JJ,#,TYPE E:REFER TO ILLUSTRATION

main42611-33340×4iACV30,MCV3#..JPP..SE200107-200406

16X6.5JJ,#,TYPE F:REFER TO ILLUSTRATION

main42611-33350×4iMCV30..JPP..LE200107-200406

15X6.5JJ,#,TYPE H:REFER TO ILLUSTRATION

main42611-33360×4iMCV30..JPP..LE200406

15X6.5JJ,#,TYPE J:REFER TO ILLUSTRATION

main42611-33410×4iMCV31..JPP200406

17X7JJ,#,TYPE L:REFER TO ILLUSTRATION

42601AWHEEL, DISC (FOR SPARE)

main42611-28250iACV30..JPP..LE200406

16X4T,TYPE G:REFER TO ILLUSTRATION

main42611-28420iACV30,MCV30..JPP..LE200406

15X6.5JJ,#,TYPE A:REFER ILLUST.

main42611-28430iACV30,MCV30..JPP..LE200107-200406

15X6.5JJ,#,TYPE B:REFER TO ILLUSTRATION

main42611-33310iACV30,MCV3#..JPP..(SE,XLE)200107-200406

16X6.5JJ,#,TYPE D:REFER TO ILLUSTRATION

main42611-33320iACV30,MCV3#..JPP..(SE,XLE)200107-200406

16X6.5JJ,#,TYPE C:REFER TO ILLUSTRATION

main42611-33410iMCV31..JPP200406

17X7JJ,#,TYPE L:REFER TO ILLUSTRATION

42601CNUT, HUB (FOR AXLE)

main90942-01007×20iACV30,MCV30..JPP..LE200107-200406

TYPE A:REFER TO ILLUSTRATION

main90942-01021×20iACV30,MCV3#..JPP..(SE,XLE)200107-200406

TYPE B:REFER TO ILLUSTRATION

main90942-01033×20iMCV30..JPP..LE..5FC;ACV30,MCV3#..JPP..SE200107-200406

TYPE C:REFER TO ILLUSTRATION

main90942-01058×20iMCV31..JPP;ACV30,MCV30..JPP..XLE200406

TYPE D:REFER TO ILLUSTRATION

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iACV30,MCV3#..JPP200107-200406

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iACV30,MCV3#..JPP200107-200406

42652TIRE

main42652-07050×4iACV30,MCV30..JPP..LE200406

205/65R15

main42652-33411×4iACV30,MCV30..JPP..(SE,XLE)200107-200305

P215/60R16 94V,BRIDGESTONE

main42652-33431×4iACV30..JPP..XLE;MCV30..JPP..(SE,XLE)200107-200405

P215/60R16 94V,TOYO

main42652-33570×4iACV30,MCV3#..JPP..(SE,XLE)200305-200406

P215/60R16 94V,*T/Y,BRIDGESTONE

42652ATIRE (FOR SPARE)

main42652-33411iACV30,MCV30..JPP..(SE,XLE)200107-200305

P215/60R16 94V,BRIDGESTONE

main42652-33431iACV30,MCV3#..JPP..(SE,XLE)200107-200310

P215/60R16 94V,TOYO

main42652-33570iACV30,MCV3#..JPP..(SE,XLE)200305-200406

P215/60R16 94V,*T/Y,BRIDGESTONE

7 parts on this diagram · 3 diagrams in section
