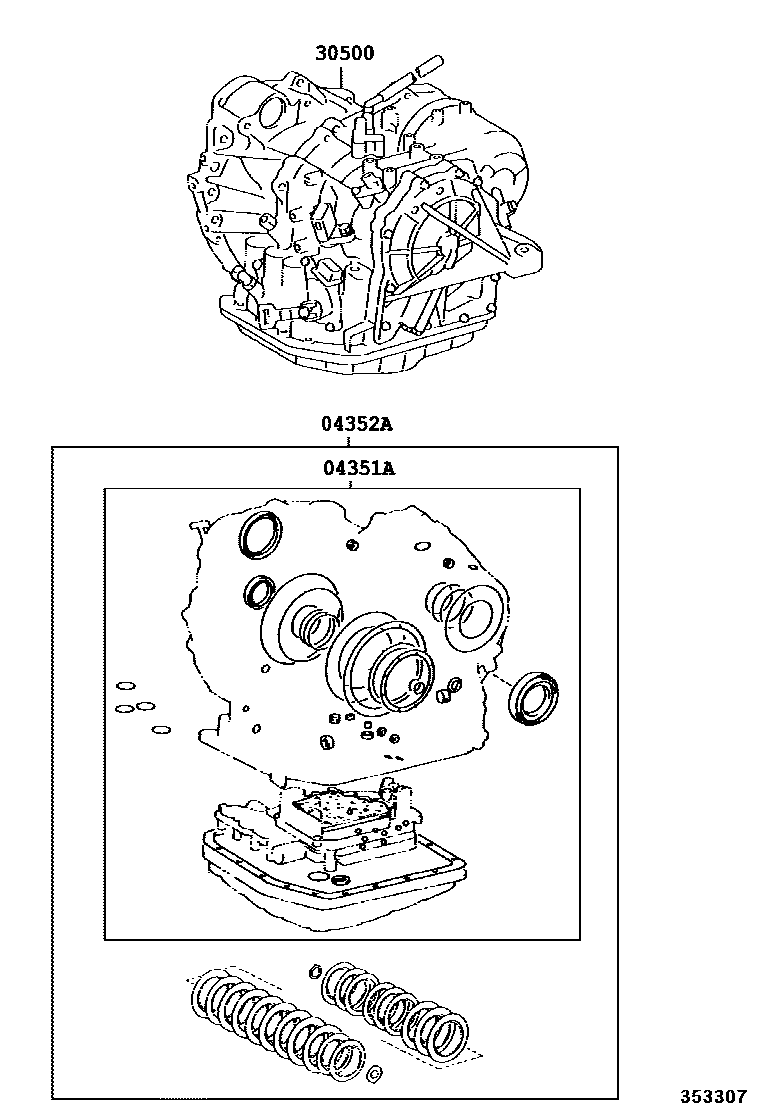

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)
04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)
(L)
(L)
(L)
(L)
AISIN AW:REFER TO ILLUSTRATION
(J)
TOYOTA:REFER TO ILLUSTRATION
AISIN AW:REFER TO ILLUSTRATION
(J)
(J)
04352AKIT, TRANSAXLE OVERHAUL(ATM)
(L)
(L)
(J)
AISIN AW:REFER TO ILLUSTRATION
(J)
TOYOTA:REFER TO ILLUSTRATION
AISIN AW:REFER TO ILLUSTRATION
(J)
30500TRANSAXLE ASSY, AUTOMATIC
U140E,(L)
U241E,(L)
U241E,(L)
U140E,(J)
U241E,(J)
U241E,(J)
U151E,AISIN AW:REFER TO ILLUSTRATION
U151E,AISIN AW:REFER TO ILLUSTRATION
U151E,TOYOTA:REFER TO ILLUSTRATION
U250E
3 parts on this diagram · 2 diagrams in section
