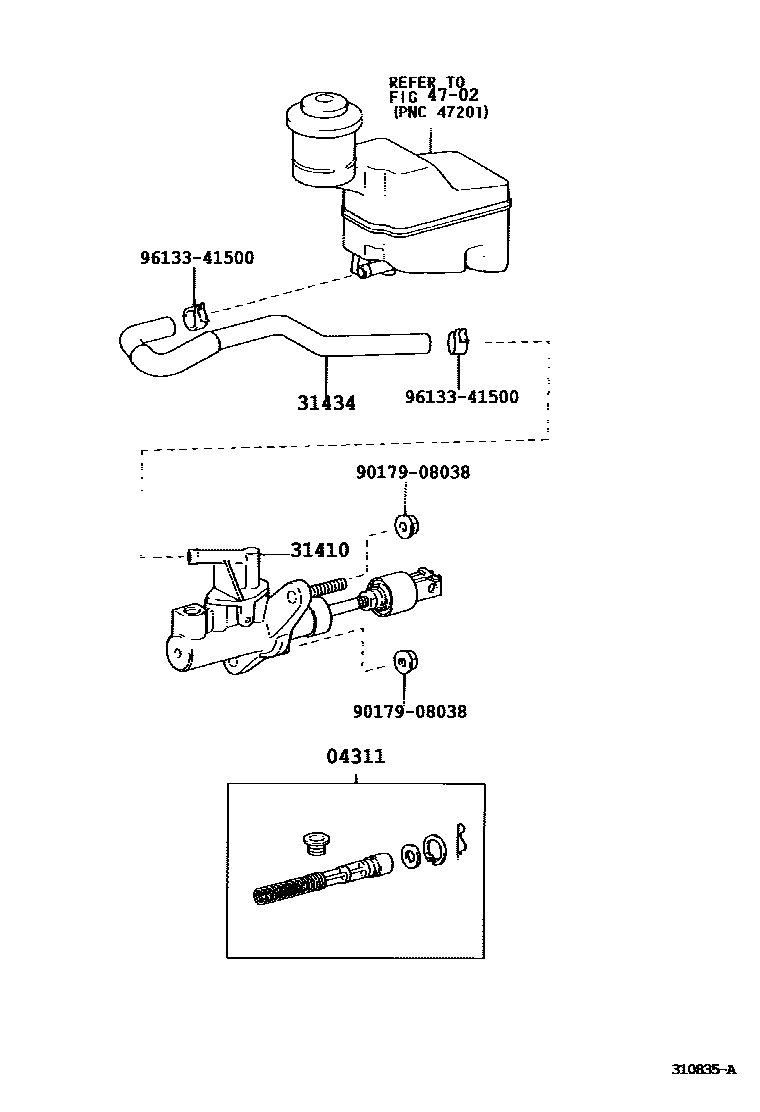

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-12110iACV30..JPP..5F200107-200406

31410CYLINDER ASSY, CLUTCH MASTER

main31420-20070iACV30..JPP..5F200107-200406

31434TUBE, CLUTCH RESERVOIR

main31434-33030iACV30..JPP..5F200107-200406

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9017908038

main90179-08038

9613341500

main96133-41500

6 parts on this diagram · 1 diagram in section
