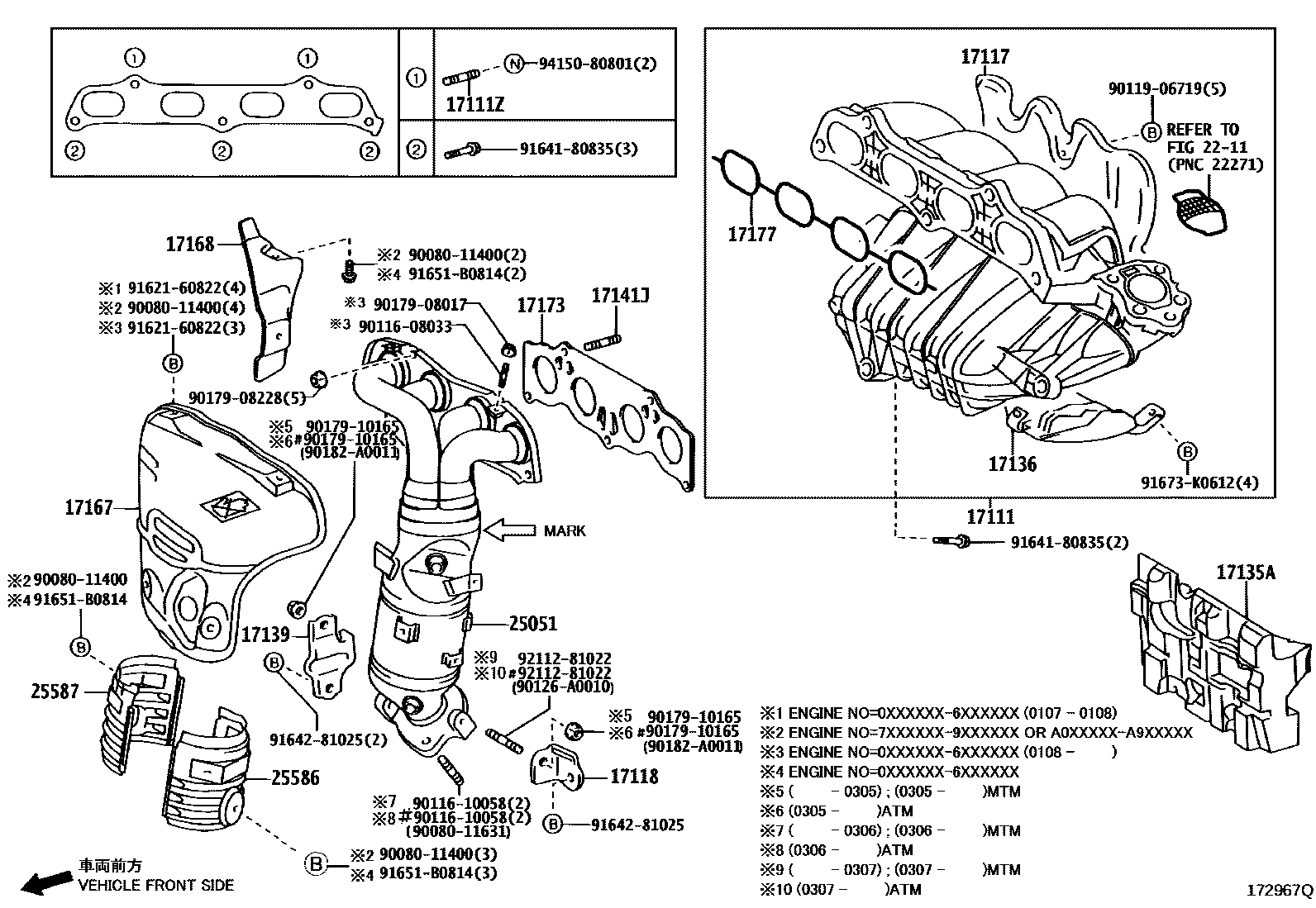

MANIFOLD
17111MANIFOLD, INTAKE
(L)
(J)
CALIFORNIA SPEC
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
CALIFORNIA SPEC,(J)
(J)
CALIFORNIA SPEC,(L)
(L)
17117INSULATOR, INTAKE PIPE
CALIFORNIA SPEC
17118STAY, MANIFOLD
17135AINSULATOR, INTAKE MANIFOLD, NO.1
17136INSULATOR, INTAKE MANIFOLD, NO.2
17139STAY, MANIFOLD, NO.2
MARK OF CONVERTER = 0HXXX,*108
17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)
(L)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
(L)
(J)
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
(L)
(J)
(J)
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
CALIFORNIA SPEC
2211FUEL INJECTION SYSTEM
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
MARK OF CONVERTER = 0HXXX;*108
MARK OF CONVERTER = 0HXXX;*108
MARK OF CONVERTER = 0HXXX;*108
*114=TOYOTA/28100/Y
CALIFORNIA SPEC
*107
25586INSULATOR, MANIFOLD CONVERTER, NO.1
(L)
(J)
(J)
CALIFORNIA SPEC
25587INSULATOR, MANIFOLD CONVERTER, NO.2
(L)
(J)
(J)
9008011400
main90080-11400
9008011631
main90080-11631
9011608033
main90116-08033
9011610058
main90116-10058
9011906719
main90119-06719
90126A0010
main90126-A0010
9017908017
main90179-08017
9017908228
main90179-08228
9017910165
main90179-10165
90182A0011
main90182-A0011
9162160822
main91621-60822
9164180835
main91641-80835
9164281025
main91642-81025
91651B0814
main91651-B0814
91673K0612
main91673-K0612
9211281022
main92112-81022
9415080801
main94150-80801
33 parts on this diagram · 7 diagrams in section
