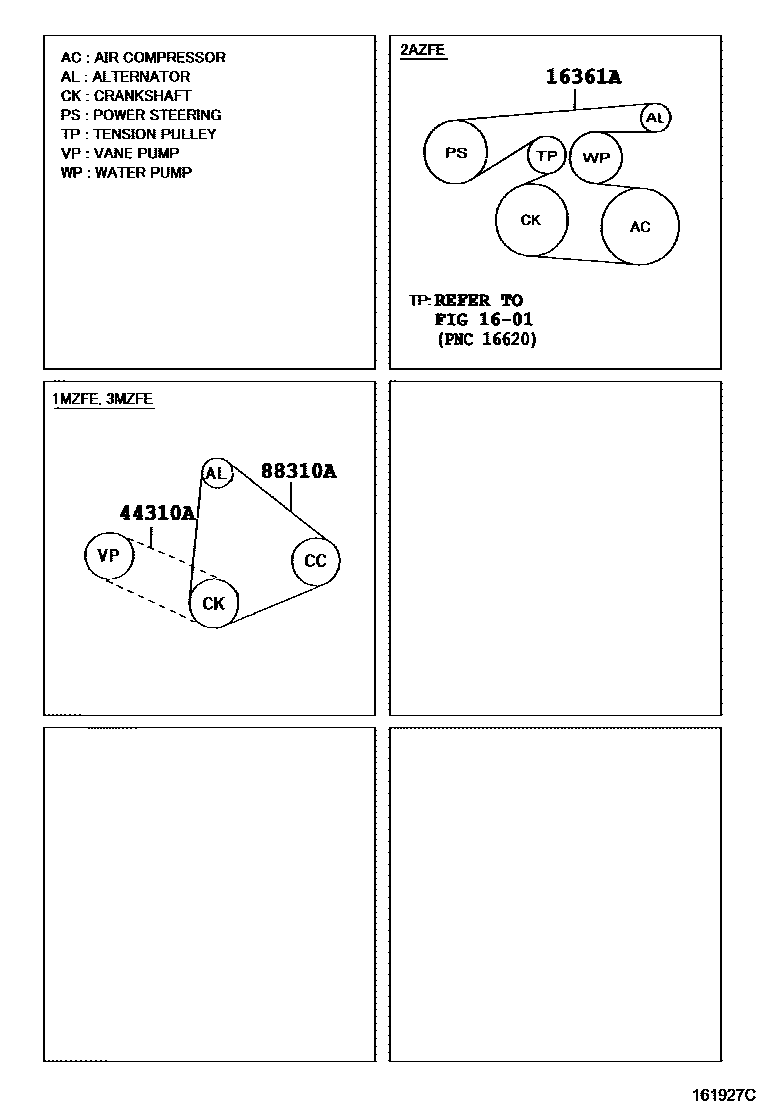

V-BELT

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-91214i2AZFE..ACV30..JPP200305-200402

(L)

main90916-02502i2AZFE..ACV30..JPP200107-200402

main90916-02599i2AZFE..ACV30..JPP200403-200406

44310ABELT, V(FOR VANE PUMP)

main90080-91088iMCV3#..JPP200107-200406

L=878,DAYCO

main99364-90880iMCV3#..JPP200107-200406

L=880,BANDO

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90080-91147iMCV3#..JPP200107-200406

L=1040,DAYCO

main99366-31040iMCV3#..JPP200107-200406

L=1040,MITSUBOSHI

main99366-C1040iMCV3#..JPP200406

L=1040,BANDO

main99366-D1040iMCV3#..JPP200406

L=1040,MITSUBOSHI

4 parts on this diagram · 1 diagram in section
